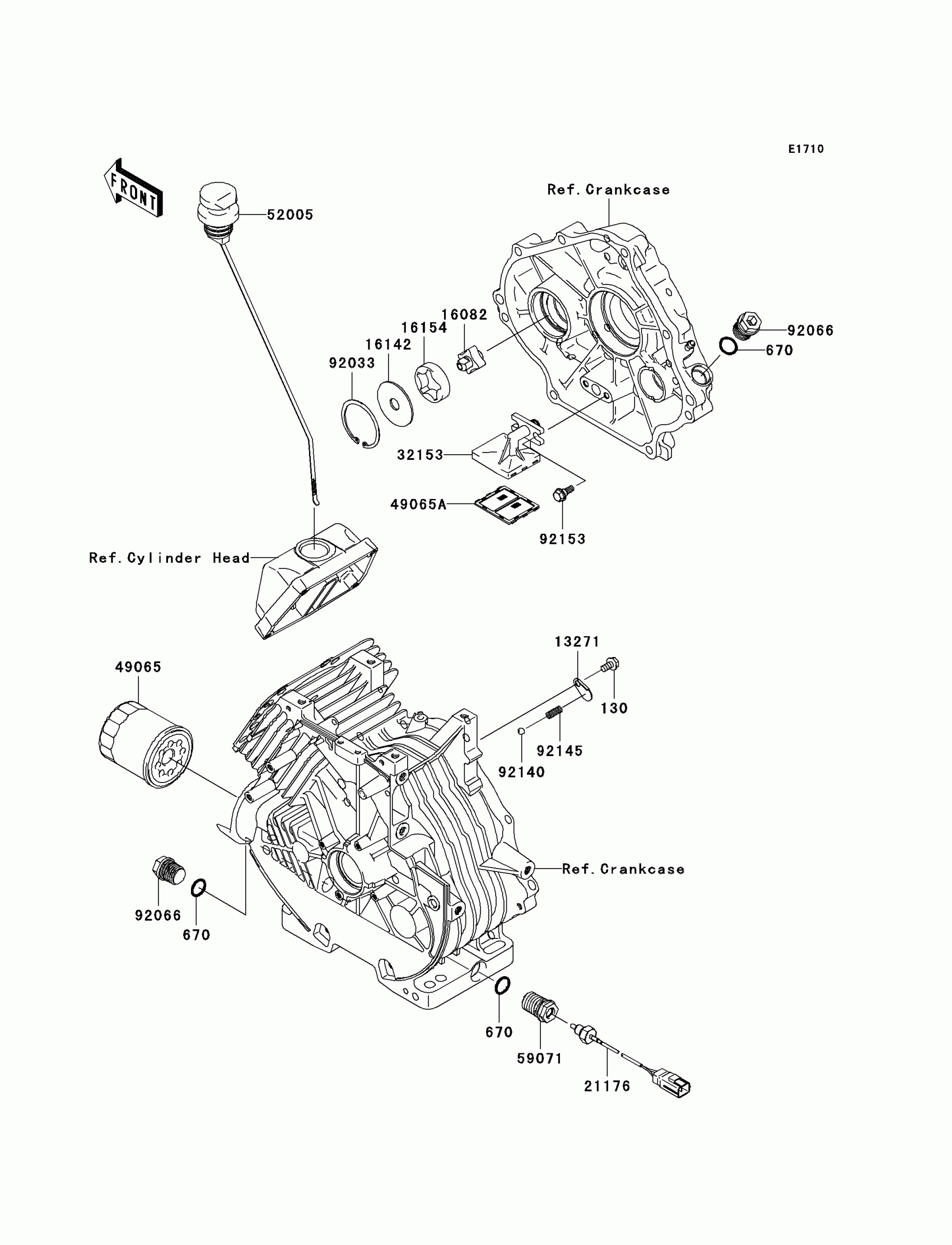

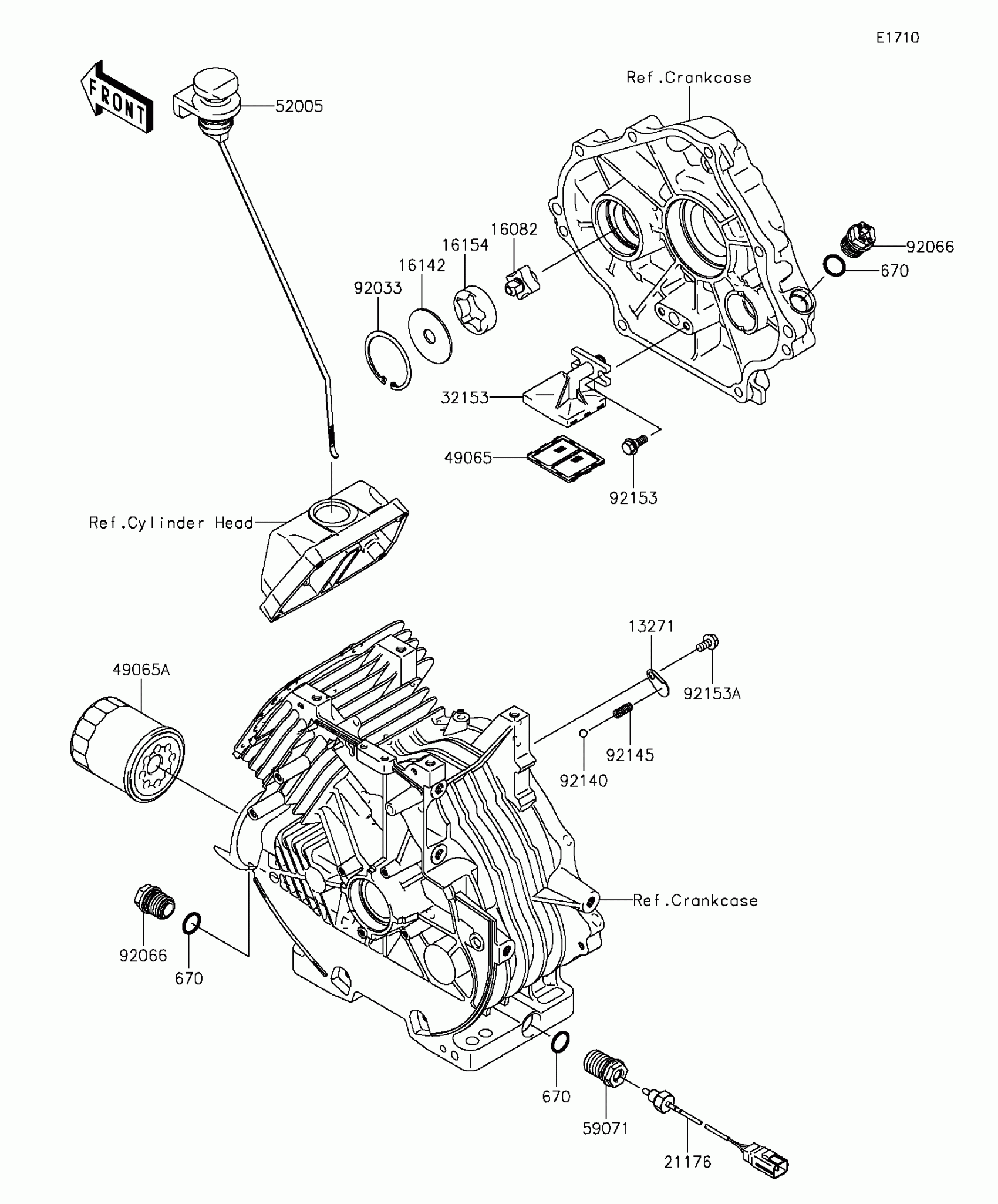

Kawasaki Mule 610 4x4 Oil Pump/Oil Filter Diagram

Description

Price

130

BOLT

130B0612

Unavailable

670

O RING,16MM

670D2016

$1.24

13271

PLATE,OIL RELIEF

13271-7026

$0.78

16082

PUMP-ASSY-OIL

16082-7002

$12.27

16142

COVER-PUMP

16142-7001

$2.71

16154

ROTOR-PUMP,OUT

16154-2054

$6.31

21176

SENSOR,OIL TEMP

21176-2108

$104.78

32153

PIPE

32153-7002

$3.26

49065

FILTER-OIL

49065-2078

$7.94

49065A

FILTER-OIL

49065-7005

$2.61

52005

GAUGE,OIL LEVEL

52005-7017

Unavailable

59071

JOINT,SENSOR

59071-2150

$4.08

92033

RING-SNAP

92033-7008

$1.89

92066

PLUG

92066-7003

$3.67

92140

BALL

92140-7001

$0.90

92145

SPRING,OIL RELIEF

92145-7035

$1.05

92153

BOLT,FLANGED,6X16

92153-7007

$2.74
