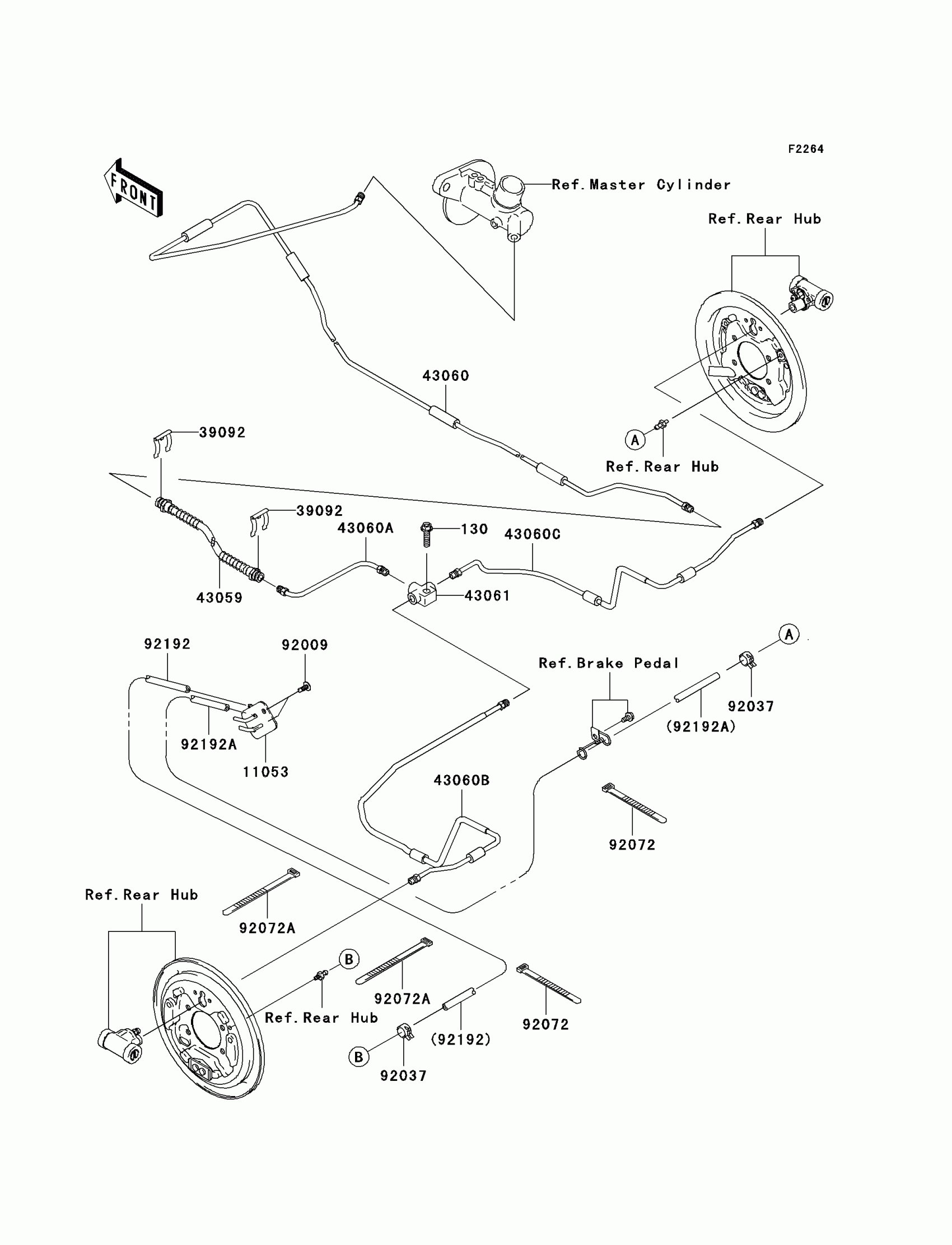

Kawasaki Mule 610 4x4 Hardwoods Green HD Rear Brake Piping Diagram

Description

Price

130

BOLT-FLANGED,8X30

130D0830

Unavailable

11053

BRACKET

11053-0781

$31.36

39092

PIN-HAIR

39092-1052

$6.07

43059

HOSE-BRAKE,CNT

43059-1665

Unavailable

43060

PIPE-BRAKE,M/CYLINDER

43060-0003

$74.45

43060A

PIPE-BRAKE,RR,CNT

43060-0006

$21.77

43060B

PIPE-BRAKE,RR,LH

43060-0007

$49.20

43060C

PIPE-BRAKE,RR,RH

43060-0008

$33.67

43061

JOINT-BRAKE

43061-1063

$34.99

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92037

CLAMP

92037-1601

$12.32

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92192

TUBE,4.7X9.5X1320

92192-0103

$9.51

92192A

TUBE,4.7X9.5X1760

92192-0176

$12.36
