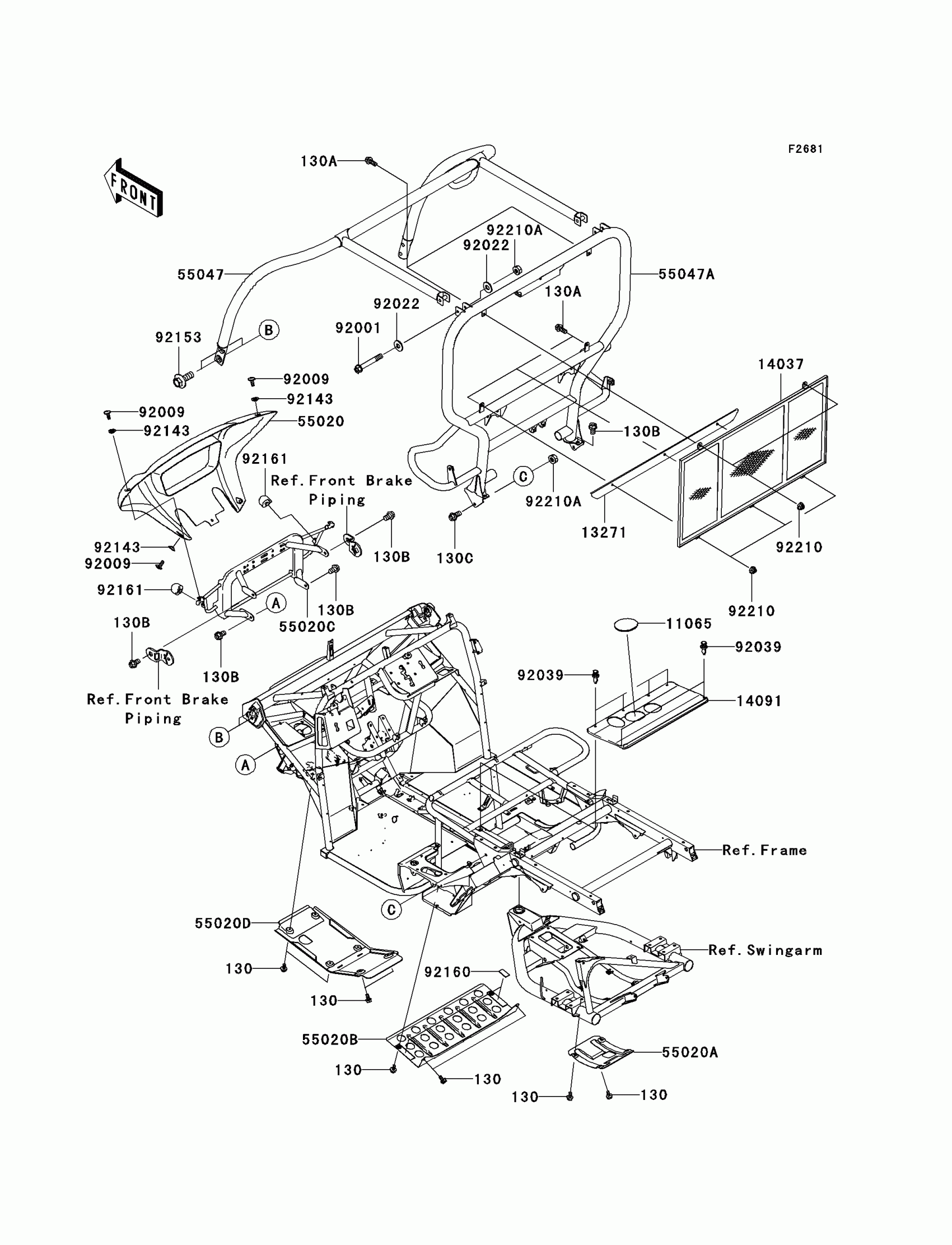

Kawasaki Mule 610 4x4 Hardwoods Green HD Guards/Cab Frame Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,8X20

130J0820

Unavailable

130B

BOLT-FLANGED,10X16

130J1016

Unavailable

130C

BOLT-FLANGED,10X20

130J1020

Unavailable

11065

CAP,F.BLACK

11065-1053-6Z

$6.40

13271

PLATE,SCREEN,BLACK

13271-0560-10

$72.13

14037

SCREEN,BLACK

14037-0035-10

$164.07

14091

COVER

14091-0355

$4.08

55020

GUARD,FRONT BUMPER,BLACK

55020-0090-283

$89.20

55020A

GUARD,DIFF

55020-0141

$40.89

55020B

GUARD

55020-0143

Unavailable

55020C

GUARD,FRONT

55020-0163

Unavailable

55020D

GUARD,FRONT DIFF

55020-0165

$59.17

55047

BAR-COMP,FR,BLACK

55047-0006-10

$356.80

55047A

BAR-COMP,RR,BLACK

55047-0008-10

$623.75

92001

BOLT,FLANGED,10X70

92001-1618

$7.89

92009

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$2.59

92039

RIVET

92039-1229

$0.80

92143

COLLAR

92143-1087

$2.98

92153

BOLT,FLANGED,14X36

92153-1282

$7.51

92160

DAMPER

92160-1102

$1.24

92161

DAMPER

92161-0157

$4.15

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$3.55

92210A

NUT,LOCK,10MM

92210-1204

$3.29
