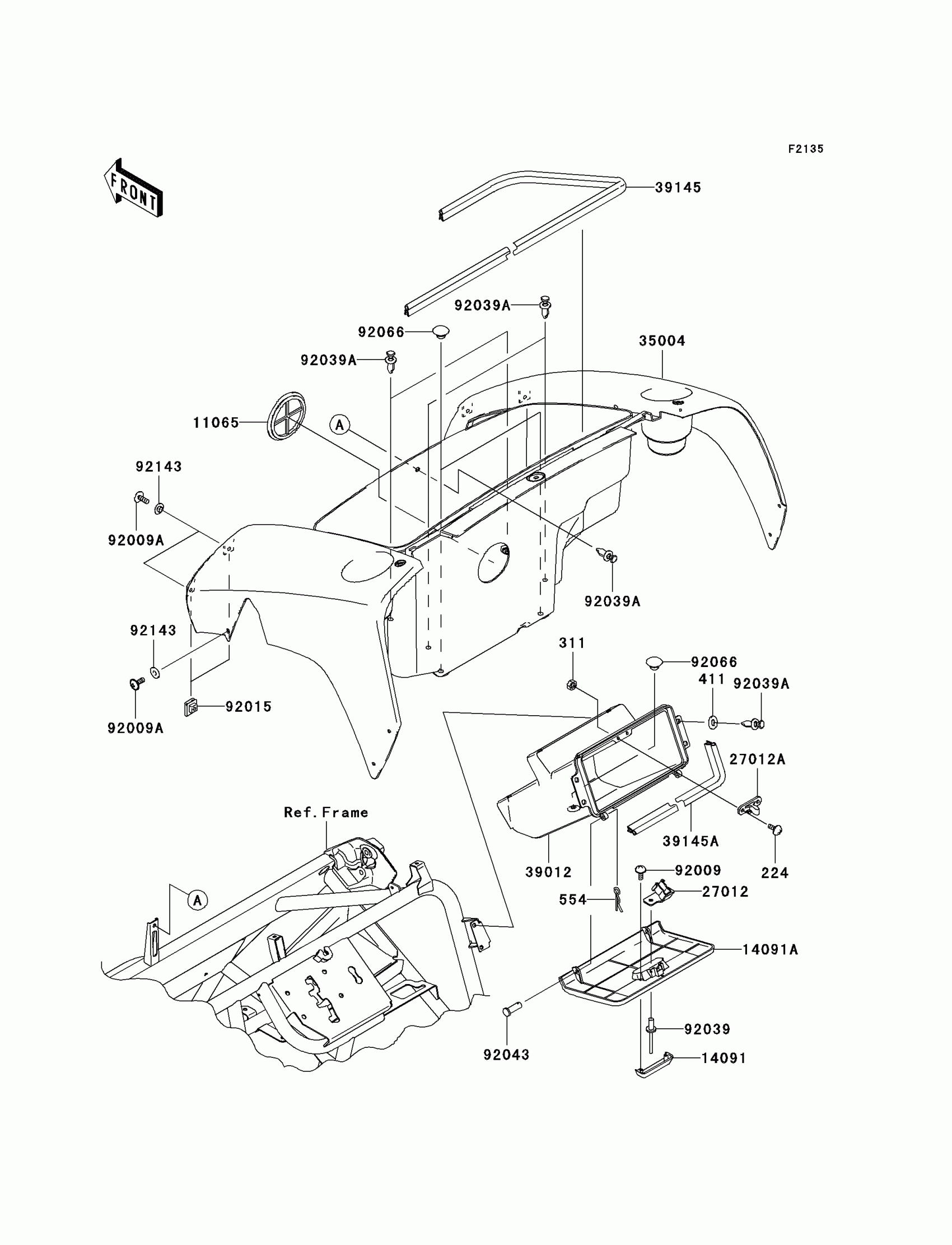

Kawasaki Mule 610 4x4 Hardwoods Green HD Front Box Diagram

Description

Price

224

SCREW-PAN-WP-CROS,4X12

224C0412

Unavailable

311

NUT-HEX

311C0400

$0.63

411

WASHER PLAIN 8MM

411B0800

Unavailable

554

PIN,SNAP

554A0600

Unavailable

11065

CAP,F.BLACK

11065-1053-6Z

$6.40

14091

COVER,STORAGE GRIP,S.M.BROWN

14091-1228-275

Unavailable

14091A

COVER,CONTROL PANEL,S.M.BROWN

14091-1399-275

Unavailable

27012

HOOK

27012-1607

$5.91

27012A

HOOK

27012-1612

$2.99

35004

FENDER-FRONT,STORAGE,C.H.GREEN

35004-0049-826

$381.42

39012

CASE-STORAGE,RH,S.M.BROWN

39012-1061-275

$45.95

39145

TRIM-SEAL,L=1940

39145-0007

$42.72

39145A

TRIM-SEAL,L=774

39145-1130

$21.31

92009

SCREW,TAPPING,4X12

92009-1444

$2.23

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92039

RIVET

92039-1041

$2.76

92039A

RIVET

92039-1229

$0.80

92043

PIN,6X14.5

92043-125

$4.93

92066

PLUG

92066-1485

$1.74

92143

COLLAR

92143-1087

$2.98
