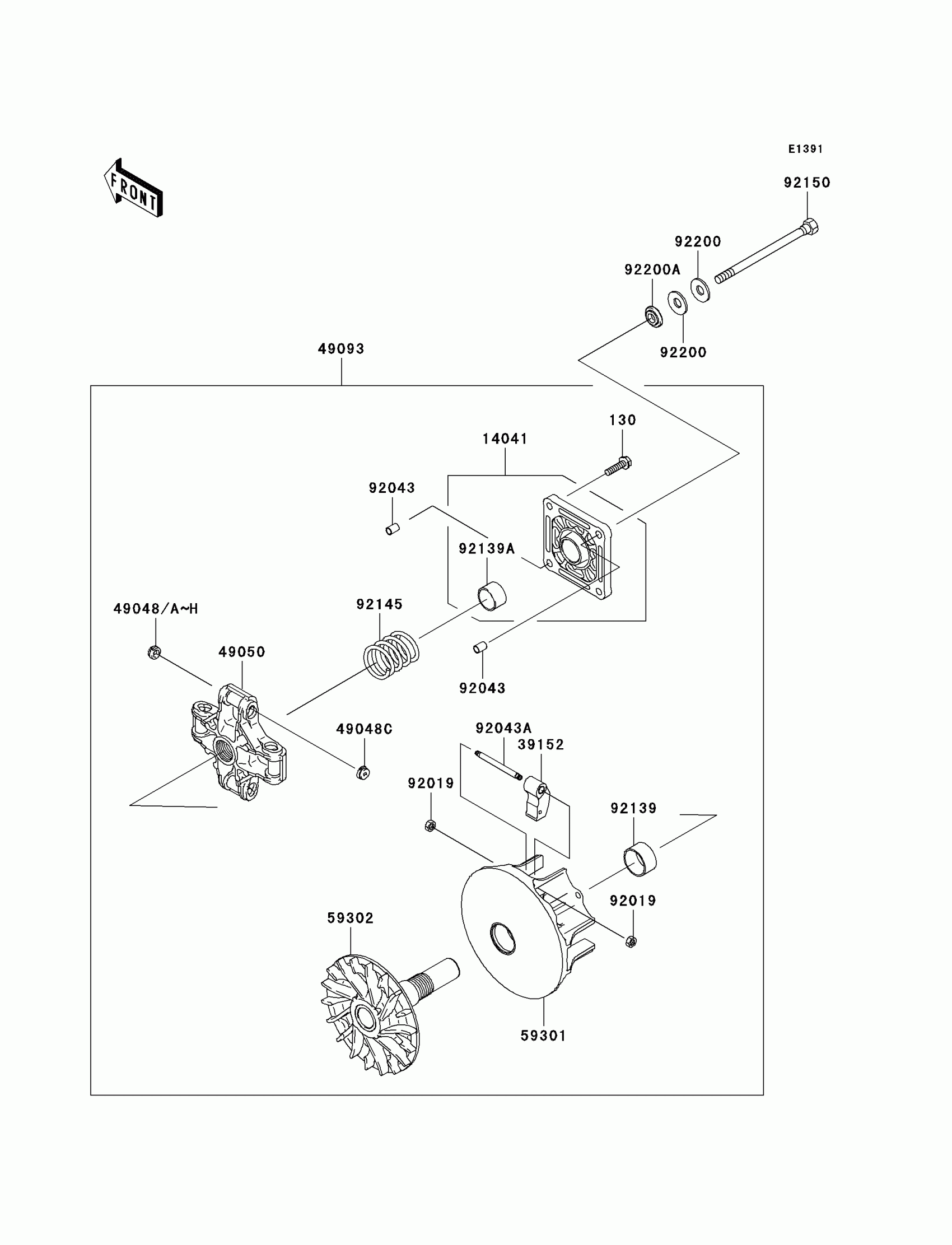

Kawasaki Mule 610 4x4 Hardwoods Green HD Drive Converter Diagram

Description

Price

130

BOLT-FLANGED,8X30

130S0830

Unavailable

14041

COVER-COMP

14041-0006

$91.68

39152

WEIGHT-RAMP,C

39152-0011

$53.86

49048

SHOE,T=7.2

49048-1087

Unavailable

49048A

SHOE,T=7.3

49048-1088

Unavailable

49048B

SHOE,T=7.4

49048-1089

Unavailable

49048C

SHOE,T=7.5

49048-1090

$11.19

49048D

SHOE,T=7.6

49048-1091

Unavailable

49048E

SHOE,T=7.7

49048-1092

Unavailable

49048F

SHOE,T=7.8

49048-1093

Unavailable

49048G

SHOE,T=7.9

49048-1094

Unavailable

49048H

SHOE,T=8.0

49048-1095

Unavailable

49050

SPIDER

49050-0003

Unavailable

49093

CONVERTER-ASSY-DRIVE

49093-0009

$624.25

59301

SHEAVE-MOVABLE

59301-0001

Unavailable

59302

SHEAVE-COMP,FIXED

59302-0005

Unavailable

92019

NUT,LOCK,6MM

92019-008

$3.12

92043

PIN,8.2X10X14

92043-1264

$0.51

92043A

92043-1699

$12.15

92139

BUSHING

92139-0049

$11.50

92139A

BUSHING

92139-0050

$11.50

92145

SPRING

92145-0149

$21.68

92150

BOLT,12X163.5

92150-1008

$22.27

92200

WASHER

92200-0249

$4.34

92200A

WASHER

92200-1634

$6.91
