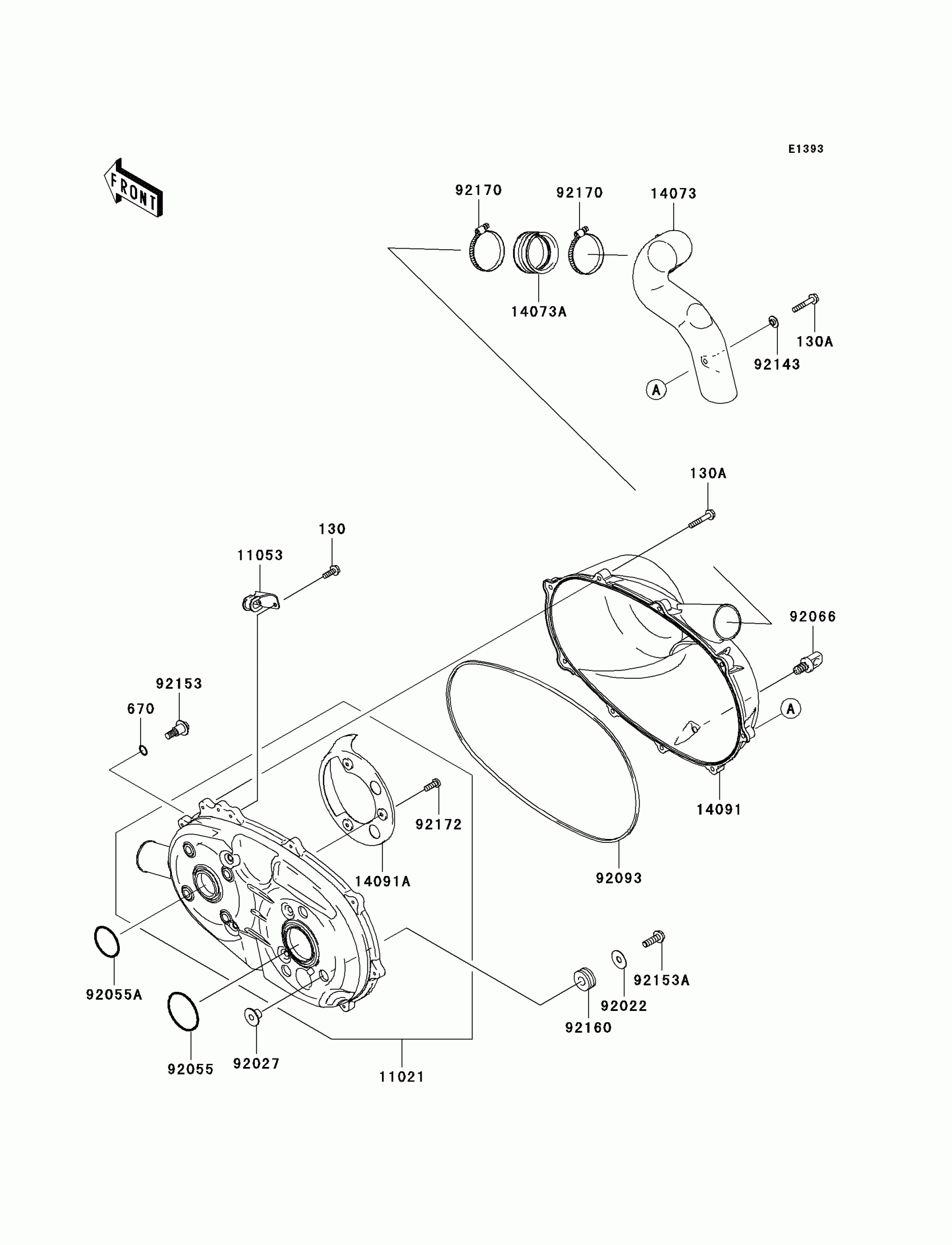

Kawasaki Mule 610 4x4 Hardwoods Green HD Converter Cover Diagram

Description

Price

130

BOLT-FLANGED,6X18

130J0618

Unavailable

130A

BOLT-FLANGED,6X35

130J0635

Unavailable

670

O RING,12MM

670D2012

$2.19

11021

CASE-ASSY,BELT CONVERTER

11021-0003

$135.11

11053

BRACKET

11053-1483

$7.69

14073

DUCT,EXHAUST

14073-0071

Unavailable

14073A

DUCT,JOINT

14073-1775

$3.32

14091

COVER,BELT CONVERTER

14091-0192

Unavailable

14091A

COVER

14091-0391

$23.71

92022

WASHER SEAL PLATE

92022-101

$3.85

92027

COLLAR

92027-4015

$8.10

92055

RING-O,64X4

92055-0048

$3.85

92055A

RING-O,50X4

92055-1501

$4.14

92066

PLUG,DRAIN,11X19

92066-1580

$4.69

92093

SEAL

92093-0018

Unavailable

92143

COLLAR

92143-1087

$2.98

92153

BOLT,8X26.5

92153-0594

$4.08

92153A

BOLT,FLANGED,8X25

92153-0953

$2.34

92160

DAMPER

92160-1012

$4.18

92170

CLAMP

92170-1764

$8.62

92172

SCREW,5X14

92172-0166

$1.81
