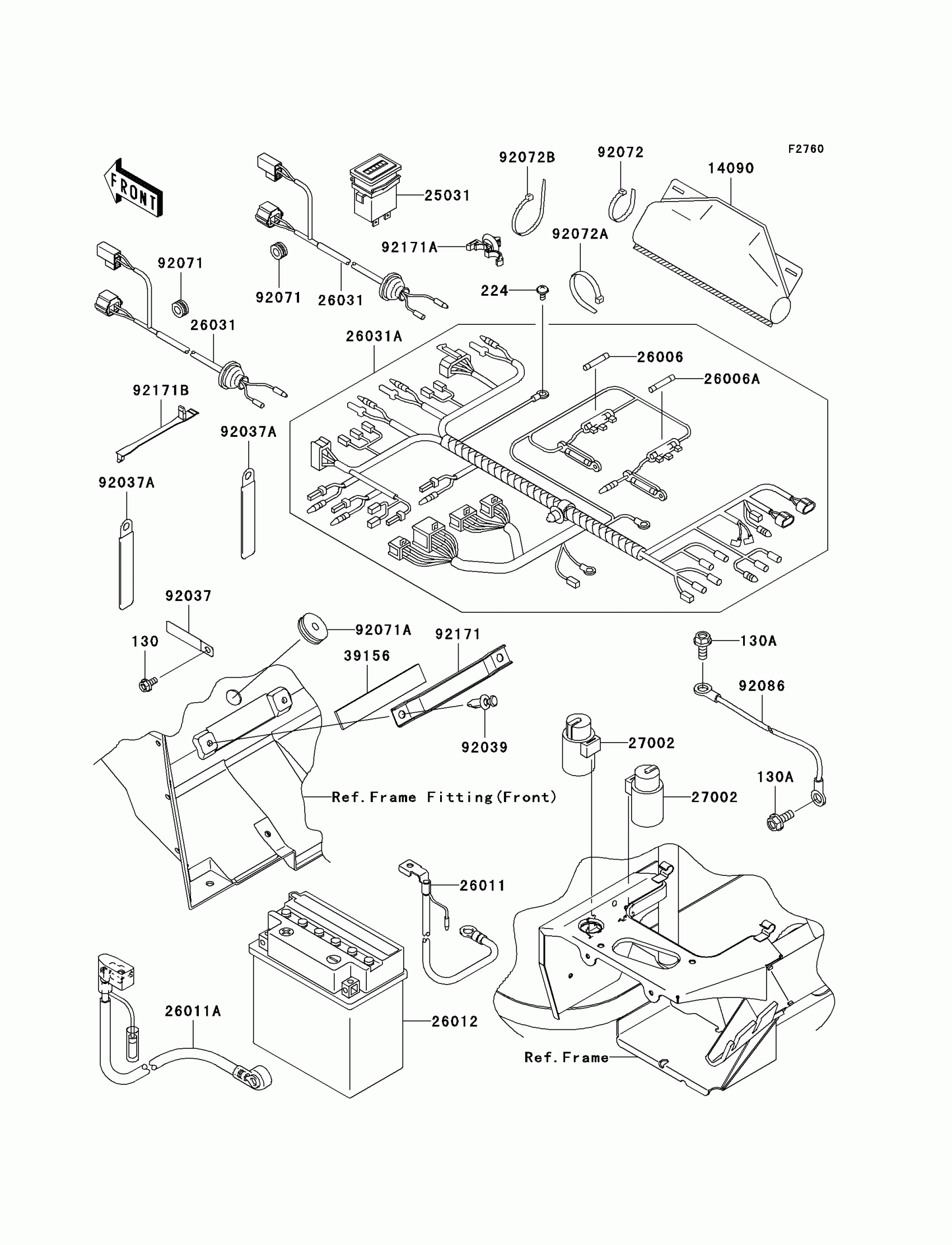

Kawasaki Mule 610 4x4 Hardwoods Green HD Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED

130D0612

Unavailable

130A

BOLT-FLANGED,8X20

130J0820

Unavailable

224

SCREW-PAN-WP-CROS

224B0508

Unavailable

14090

COVER,COUPLER

14090-1331

$8.31

25031

METER-ASSY,HOUR

25031-7505

$113.59

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$3.89

26006A

FUSE,30A,L=32

26006-1065

Unavailable

26011

WIRE-LEAD,BATTERY(-)

26011-0040

$47.95

26011A

WIRE-LEAD,BATTERY(+)

26011-0048

$67.68

26012

BATTERY,YB14A-A2,12V 14AH

26012-0011

$102.11

26031

HARNESS,HEAD LAMP

26031-0155

$48.13

26031A

HARNESS,MAIN

26031-0304

$249.34

27002

RELAY-ASSY

27002-1051

$48.39

39156

PAD

39156-0063

$3.92

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,HARNESS,L=100

92037-1636

$7.56

92039

RIVET

92039-1229

$0.80

92071

GROMMET

92071-1128

$4.78

92071A

GROMMET

92071-1136

$7.29

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92072B

BAND,L=188

92072-1239

$1.30

92086

WIRE

92086-1054

$24.59

92171

CLAMP

92171-0301

$4.20

92171A

CLAMP

92171-0453

$3.12

92171B

CLAMP

92171-1365

$3.76
