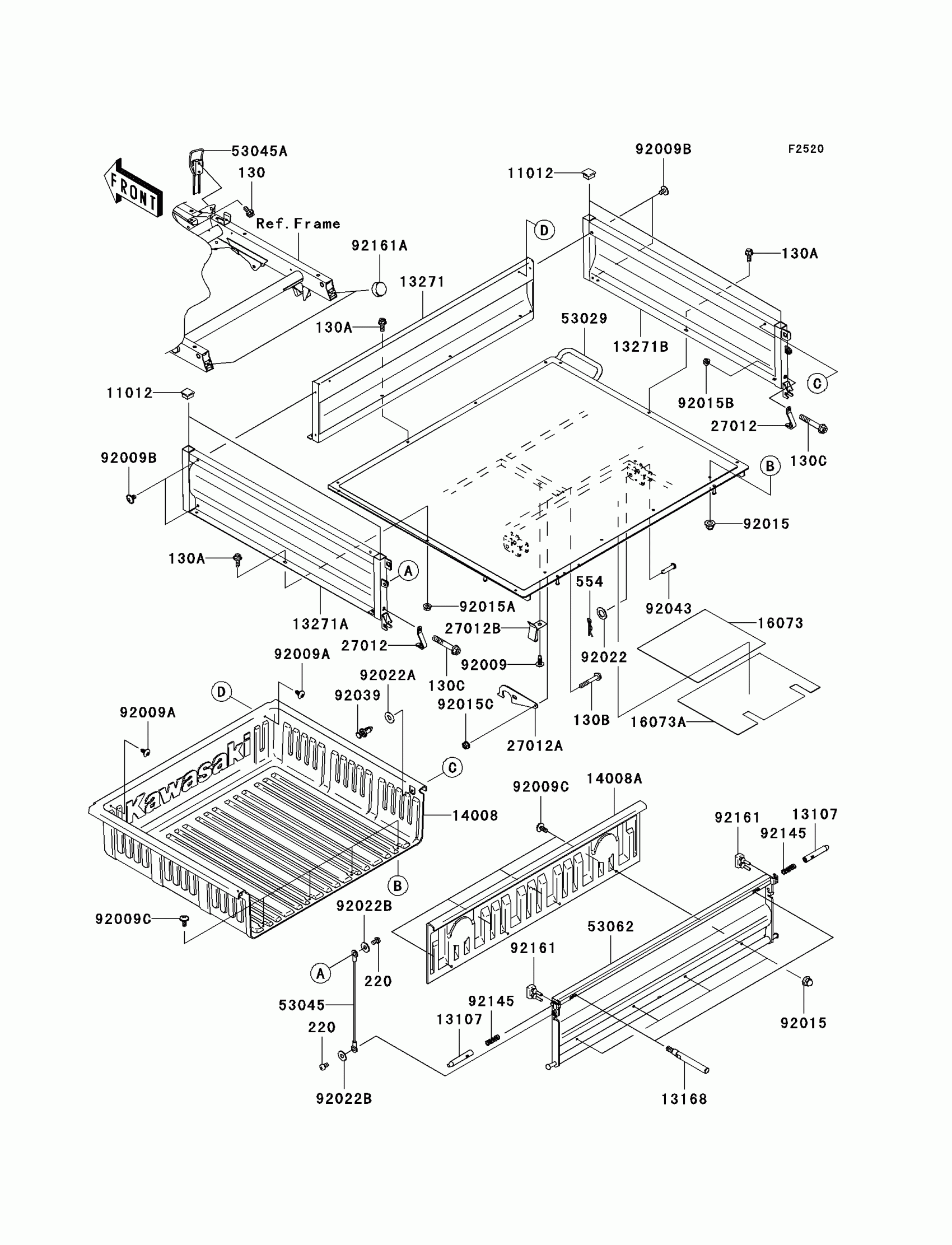

Kawasaki Mule 610 4x4 Hardwoods Green HD Carrier(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130B

BOLT-FLANGED,6X40

130J0640

Unavailable

130C

BOLT-FLANGED,8X50

130J0850

Unavailable

220

SCREW-PAN-CROSS,6X10

220F0610

$1.33

554

PIN-SNAP,12MM

554A1200

Unavailable

11012

CAP

11012-1784

$4.74

13107

SHAFT

13107-0082

$58.67

13168

LEVER

13168-0090

$9.15

13271

PLATE,CARRIER,SIDE,FR,BLACK

13271-0385-10

$181.74

13271A

PLATE,CARRIER,SIDE,LH,GREEN

13271-0527-374

Unavailable

13271B

PLATE,CARRIER,SIDE,RH,GREEN

13271-0528-374

Unavailable

14008

LINER,CARRIER BED

14008-0009

Unavailable

14008A

LINER,TAIL GATE

14008-0010

$41.08

16073

INSULATOR,CARRIER

16073-0020

$56.04

16073A

INSULATOR,CARRIER

16073-0021

$56.44

27012

HOOK,TAIL GATE

27012-0022

$4.81

27012A

HOOK

27012-0044

$31.59

27012B

HOOK,CARRIER

27012-1445

$12.32

53029

CARRIER,BLACK

53029-0024-10

$1,433.02

53045

HOOK-ASSY,TAIL GATE

53045-0006

$21.42

53045A

HOOK-ASSY

53045-1063

$18.86

53062

GATE-TAIL,C.H.GREEN

53062-0004-374

$583.17

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X12

92009-1480

$2.23

92009B

SCREW,6X10

92009-1661

$3.29

92009C

SCREW,6X14

92009-1662

$2.99

92015

NUT,LOCK 6MM

92015-1262

$4.85

92015A

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015B

NUT,FLANGED,8MM

92015-1408

$4.07

92015C

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,12.5X22X1.2

92022-072

$2.99

92022A

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92022B

WASHER,7X18X1.2

92022-1545

$0.84

92039

RIVET

92039-1229

$0.80

92043

PIN,12X54

92043-1451

$9.42

92145

SPRING,TENSIONER

92145-1215

$3.52

92161

DAMPER

92161-0258

$3.18

92161A

DAMPER

92161-1065

$2.84
