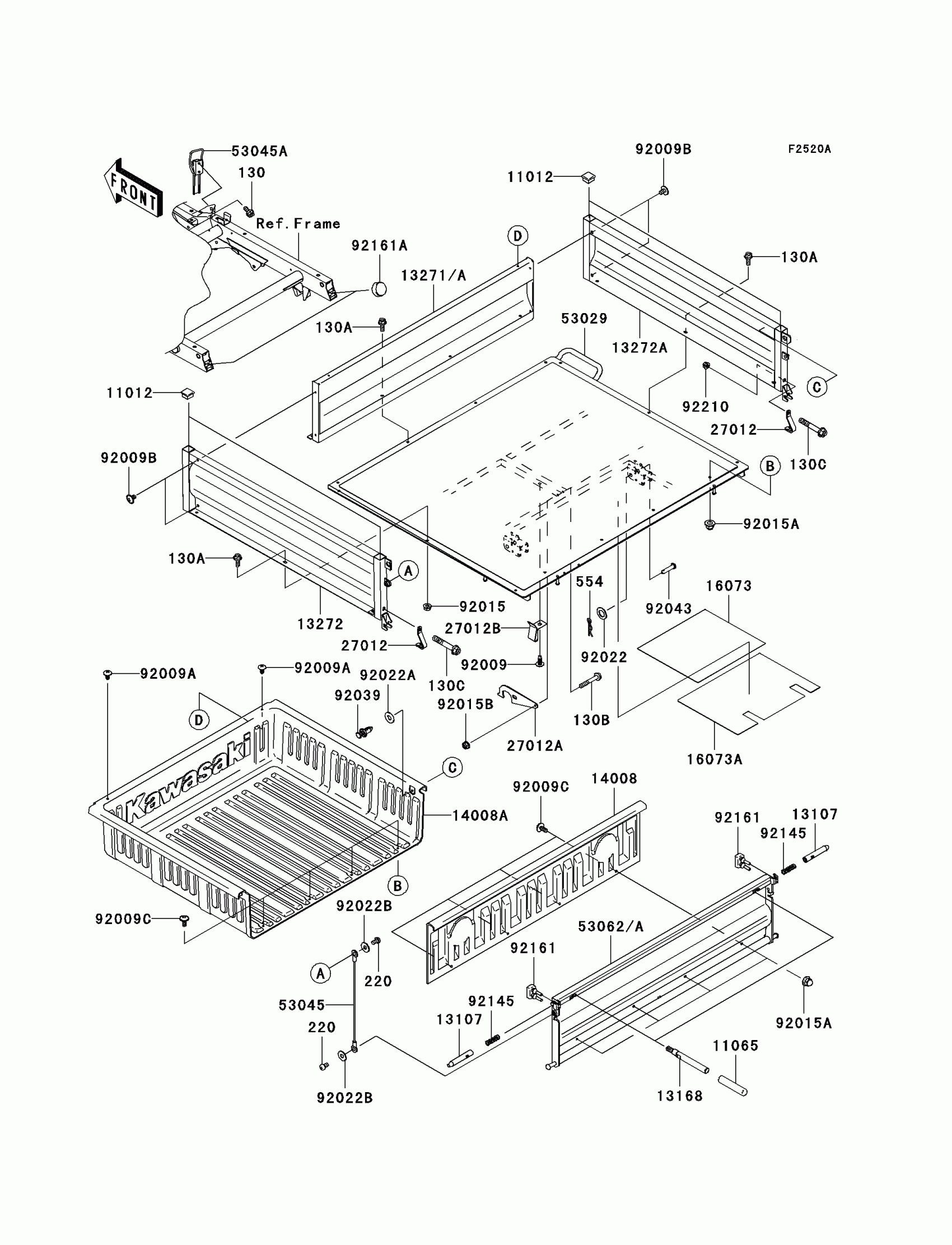

Kawasaki Mule 610 4x4 Hardwoods Green HD Carrier(s)(C8F/C9F) Diagram

#

Description
Price

11012

CAP

11012-1784

$6.32

11065

CAP

11065-0126

$3.38

13107

SHAFT

13107-0082

$65.41

13168

LEVER

13168-0090

$12.04

13271A

PLATE,CARRIER,SIDE,FR,GREEN

13271-0385-826

$424.67

13272

PLATE,CARRIER,SIDE,LH,GREEN

13272-0104-826

$372.52

13272A

PLATE,CARRIER,SIDE,RH,GREEN

13272-0105-826

$401.56

14008

LINER,TAIL GATE

14008-0010

$40.35

14008A

LINER,CARRIER BED

14008-0012

$237.80

16073

INSULATOR,CARRIER

16073-0039

$55.03

16073A

INSULATOR,CARRIER

16073-0040

$55.42

27012

HOOK,TAIL GATE

27012-0022

$6.43

27012A

HOOK

27012-0044

$31.01

27012B

HOOK,CARRIER

27012-1445

$12.92

53029

CARRIER,BLACK

53029-0024-10

$1,398.35

53045

HOOK-ASSY,TAIL GATE

53045-0006

$26.56

53045A

HOOK-ASSY

53045-1063

$23.47

53062A

GATE-TAIL,C.H.GREEN

53062-0009-826

$570.97

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X12

92009-1480

$3.21

92009B

SCREW,6X10

92009-1661

$4.31

92009C

SCREW,6X14

92009-1662

$3.92

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,LOCK 6MM

92015-1262

$5.52

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92022A

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92022B

WASHER,7X18X1.2

92022-1545

$1.03

92039

RIVET

92039-1229

$1.19

92043

PIN,12X54

92043-1451

$9.73

92145

SPRING,TENSIONER

92145-1215

$4.63

92161

DAMPER

92161-0258

$4.16

92161A

DAMPER

92161-1065

$3.73

92210

NUT,FLANGED,8MM

92210-0555

$2.03

130

BOLT-FLANGED,6X14

130BB0614

$2.49

130A

BOLT-FLANGED,6X16

130BB0616

$2.06

130B

BOLT-FLANGED,6X40

130BB0640

$3.13

130C

BOLT-FLANGED,8X50

130BB0850

$4.73

220

SCREW-PAN-CROS,6X10

220AB0610

$1.81

554

PIN-SNAP,12MM

554DA1200

$3.96
