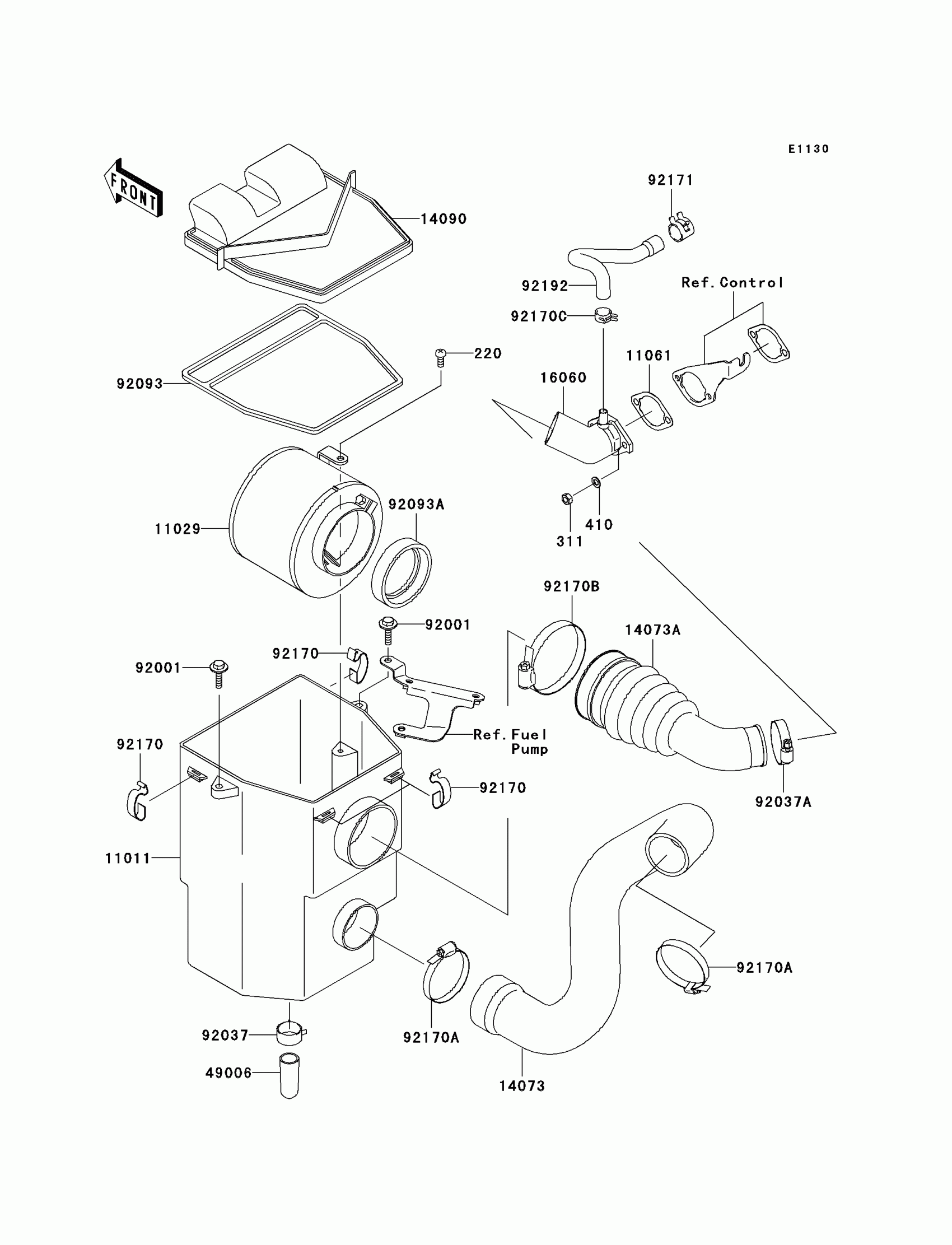

Kawasaki Mule 610 4x4 Hardwoods Green HD Air Cleaner Diagram

Description

Price

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

311

NUT 6MM

311B0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

11011

CASE-AIR FILTER

11011-1367

$90.35

11029

ELEMENT-ASSY-AIR FILTER

11029-1004

$36.72

11061

GASKET,CHOKE

11061-7026

$0.87

14073

DUCT,FRAME-AIR FILTER

14073-0072

$41.55

14073A

DUCT,AIR FILTER-IN.PIPE

14073-0074

$26.71

14090

COVER,AIR FILTER

14090-1106

$26.44

16060

PIPE-INTAKE

16060-2210

Unavailable

49006

BOOT

49006-1351

$5.74

92001

BOLT,6X25,W/WASHER

92001-1140

$4.42

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92037A

CLAMP

92037-506

$4.58

92093

SEAL,AIR FILTER

92093-1241

$9.85

92093A

SEAL,DUST

92093-1322

$7.48

92170

CLAMP,AIR FILTER

92170-1211

$5.61

92170A

CLAMP

92170-1674

$8.94

92170B

CLAMP

92170-1679

$5.95

92170C

CLAMP

92170-7003

$1.07

92171

CLAMP

92171-7013

Unavailable

92192

TUBE,BREATHER

92192-2084

Unavailable
