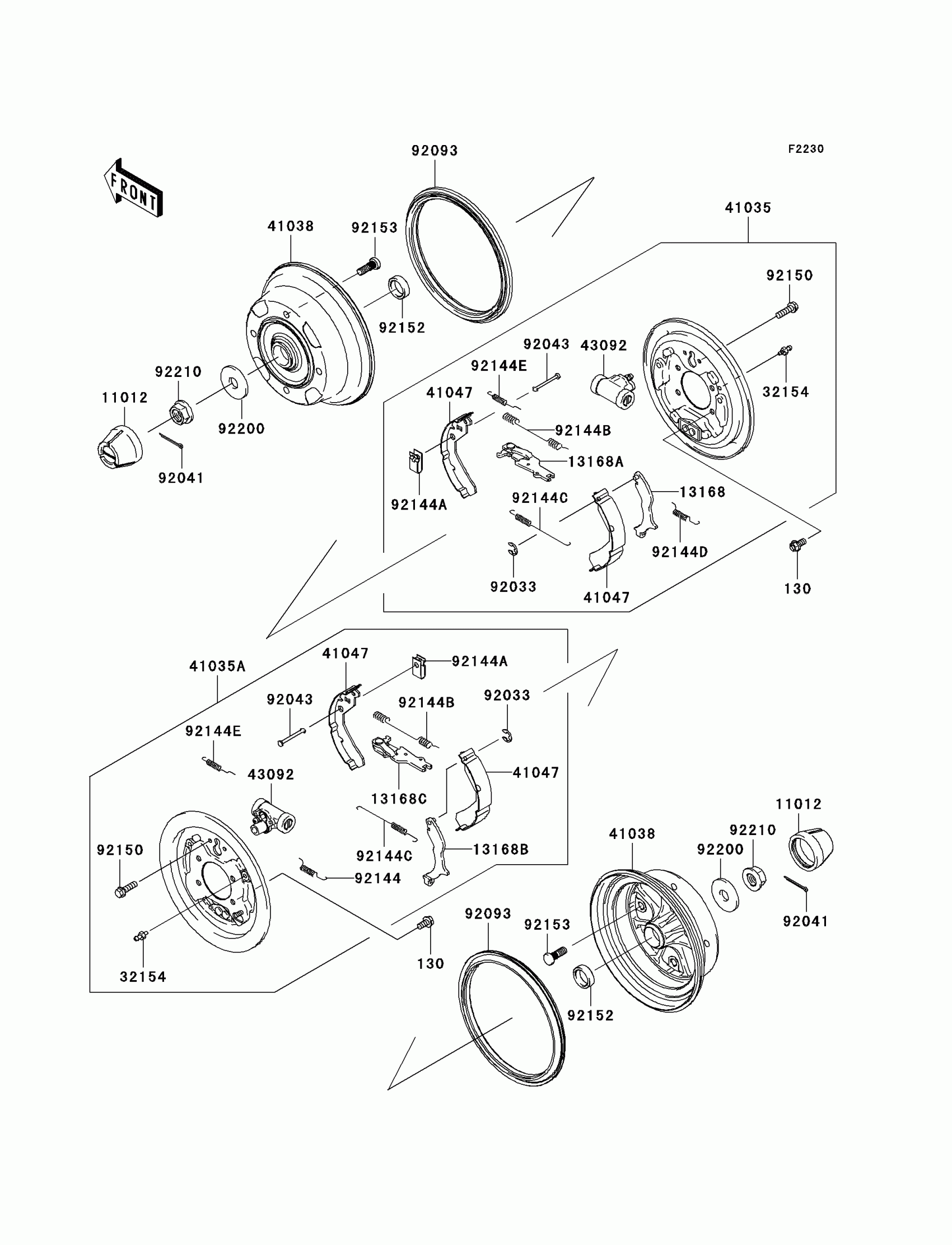

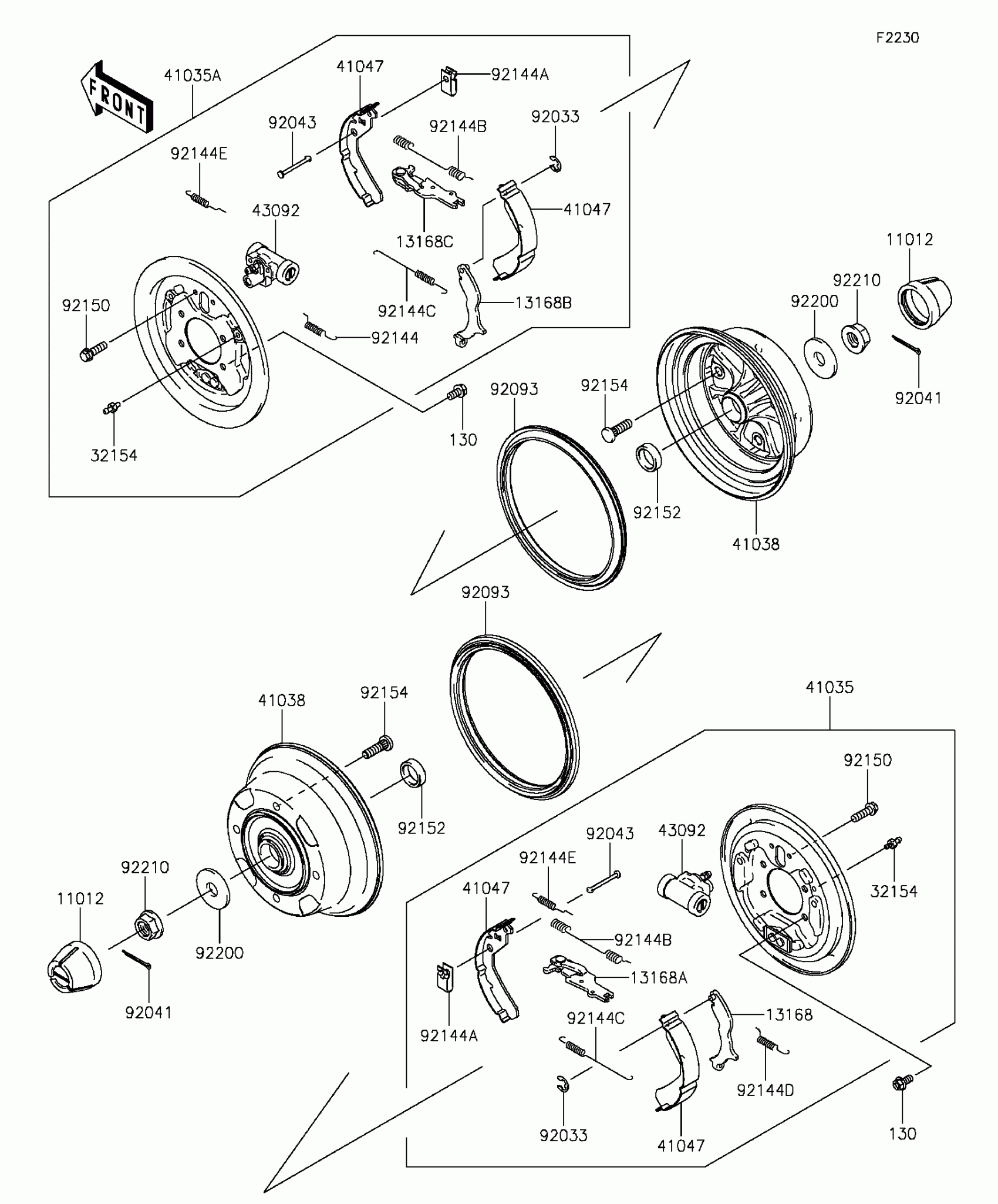

Kawasaki Mule 610 4x4 Front Hubs/Brakes Diagram

#

Description
Price

130

BOLT-FLANGED,8X16

130T0816

$2.33

11012

CAP,WHEEL

11012-1969

$5.65

13168

LEVER,BRAKE,LH

13168-0065

$15.48

13168A

LEVER,BRAKE,LH

13168-0066

$30.44

13168B

LEVER,BRAKE,RH

13168-0067

$15.48

13168C

LEVER,BRAKE,RH

13168-0068

$30.44

32154

PIPE

32154-0335

$12.86

41035

PANEL-ASSY-BRAKE,FR,LH

41035-0009

Unavailable

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-0011

Unavailable

41038

DRUM,FRONT BRAKE

41038-0013

$234.53

41047

SHOE-ASSY-BRAKE

41047-0001

$29.31

43092

CYLINDER

43092-0001

$131.93

92033

RING-SNAP

92033-1279

$3.54

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN,SHOE HOLD

92043-1460

$4.87

92093

SEAL,BS184.8X13.5-1

92093-0031

$119.44

92144

SPRING,RH

92144-1608

$7.26

92144A

SPRING,SHOE HOLD

92144-1609

$7.60

92144B

SPRING,RETURN,UPP

92144-1612

$7.98

92144C

SPRING,RETURN,LWR

92144-1613

$7.98

92144D

SPRING,LH

92144-1614

$6.41

92144E

SPRING

92144-1615

$5.25

92150

BOLT,FLANGED,6X10

92150-1664

$4.39

92152

COLLAR,25X34X10

92152-0164

$11.95

92153

BOLT,10X30

92153-0920

$9.09

92200

WASHER,18.5X52X4.5

92200-1474

$8.10

92210

NUT,FLANGED,18MM

92210-0132

$11.95
