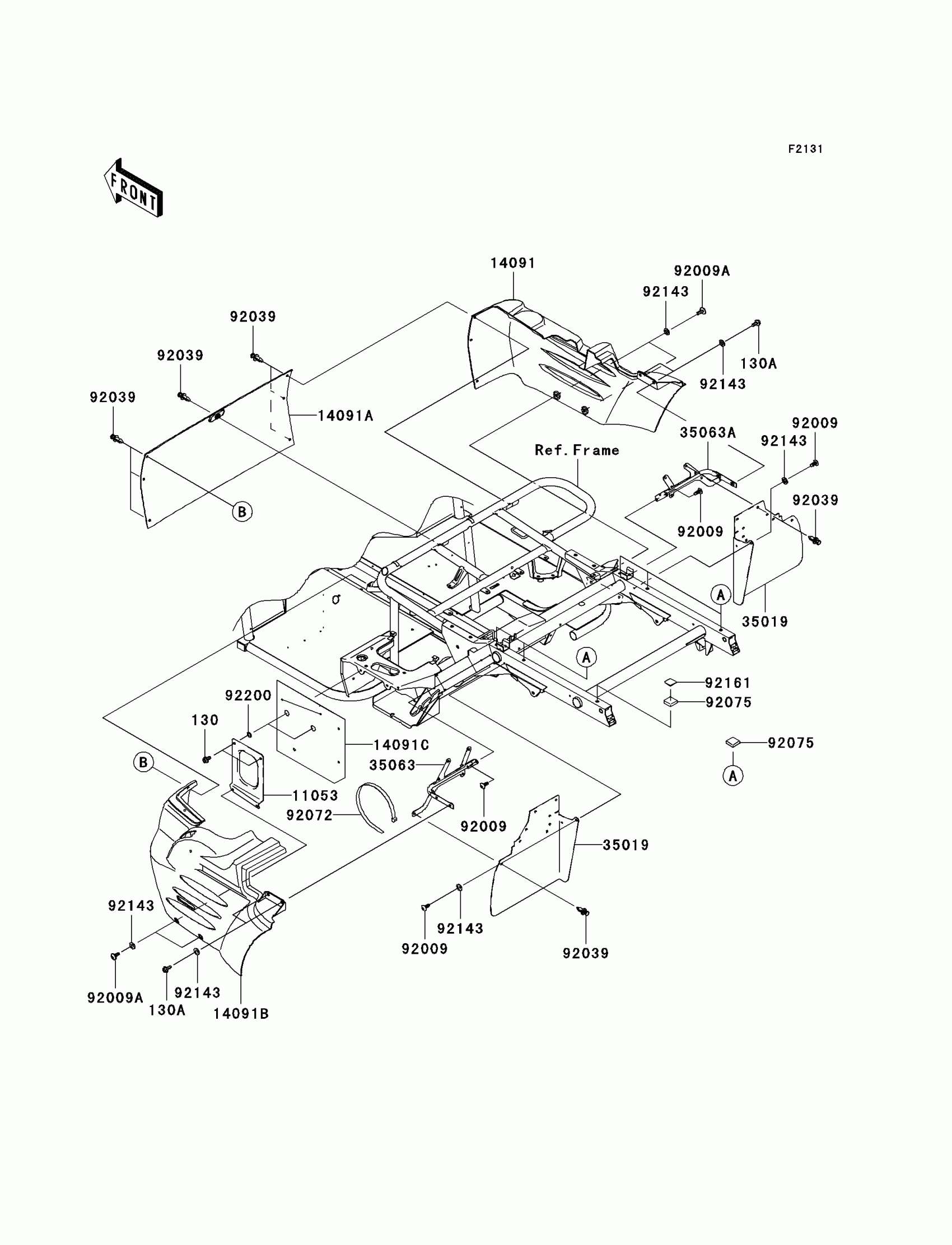

Kawasaki Mule 610 4x4 Frame Fittings(Rear) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

130A

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

11053

BRACKET

11053-0857

$50.18

14091

COVER,REAR SIDE,RH,BLACK

14091-0224-283

$59.20

14091A

COVER,FRONT GRILLE,BLACK

14091-0341-283

$37.59

14091B

COVER,REAR SIDE,LH,BLACK

14091-0395-283

$59.20

14091C

COVER

14091-0464

$27.46

35019

FLAP,RR,FR,RH

35019-0029

$37.63

35063

STAY,LH

35063-0186

$82.56

35063A

STAY,RH

35063-0187

$82.56

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-1229

$1.19

92072

BAND,L=368.3

92072-3872

$1.59

92075

DAMPER

92075-1882

$8.10

92143

COLLAR

92143-1087

$4.31

92161

DAMPER

92161-0256

Unavailable

92200

WASHER,7.04X12.5X0.6

92200-0234

$2.39
