2007 Kawasaki Mule 610 4x4 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

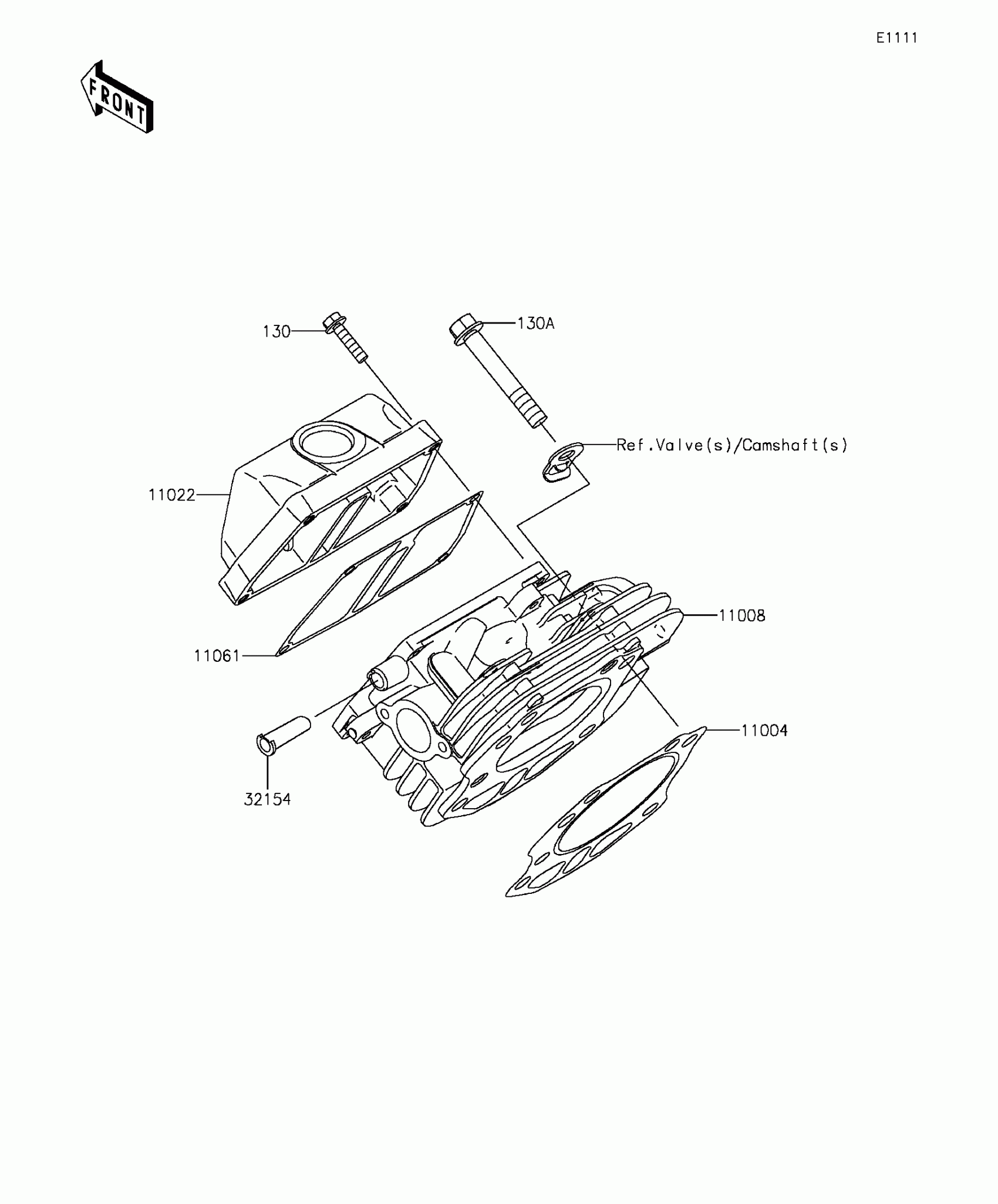

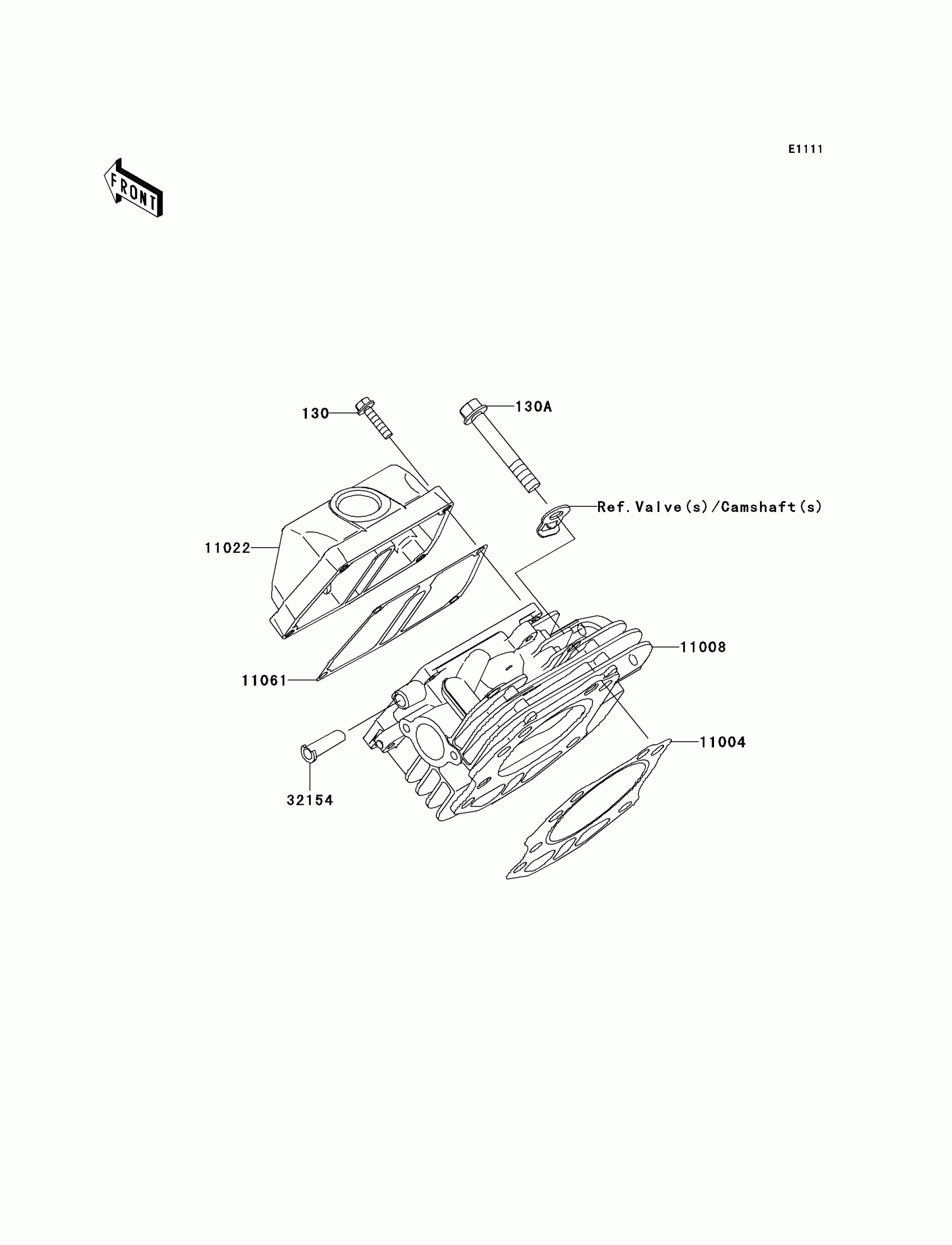

2007 Kawasaki Mule 610 4x4 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130B0625

1
Out of stock

130A

BOLT-FLANGED,10X65

130P1065

1
Out of stock

11004

GASKET-HEAD

11004-7017

1

$10.31

In stock

11008

HEAD-COMP-CYLINDER

11008-2162

1

$209.51

In stock

11022

CASE-ROCKER

11022-7008

1
Out of stock

11061

GASKET,CASE-ROCKER

11061-7041

1

$5.33

In stock

32154

PIPE

32154-7008

1

$0.95

In stock
← Crankshaft/piston Engine Mount →
