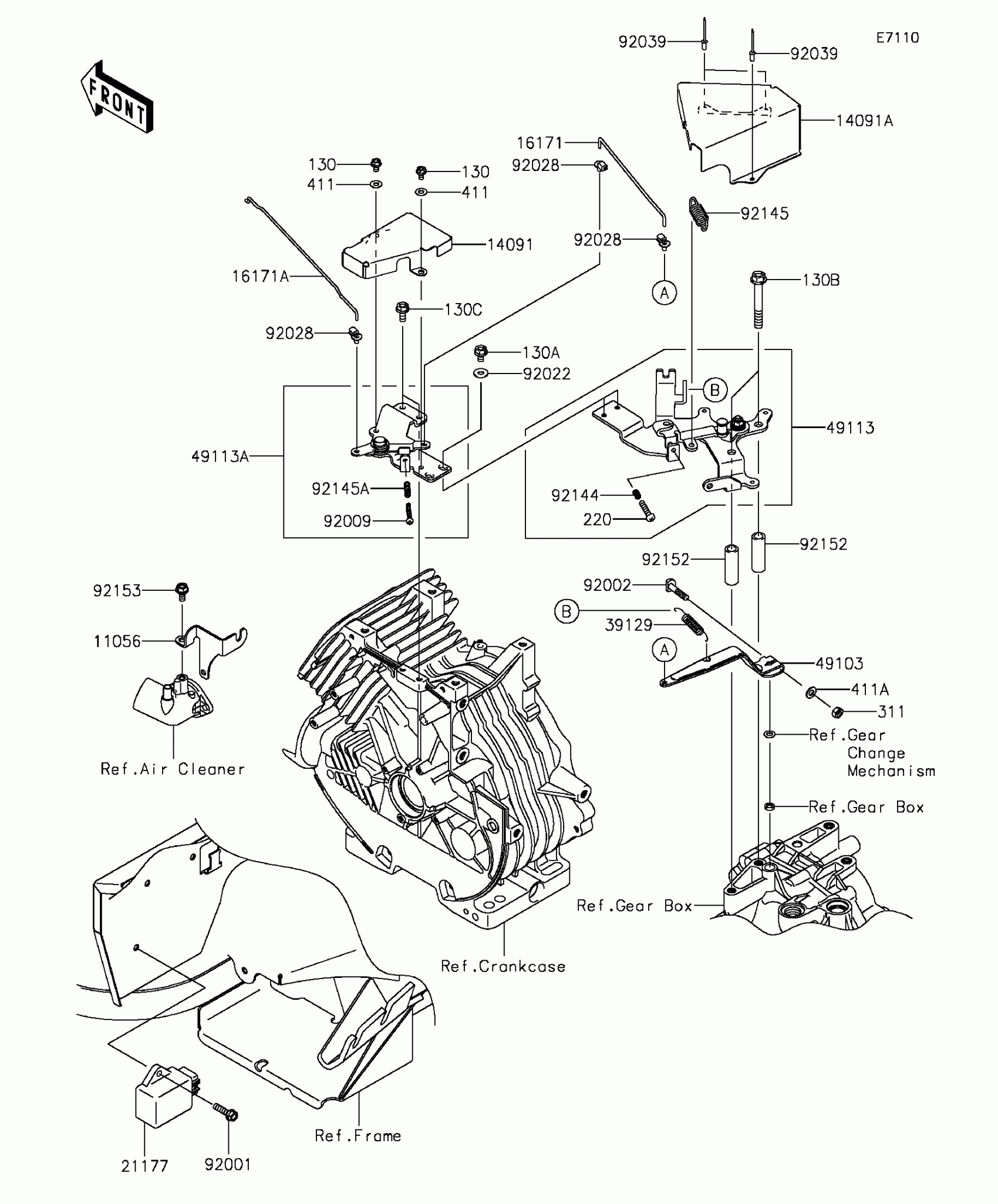

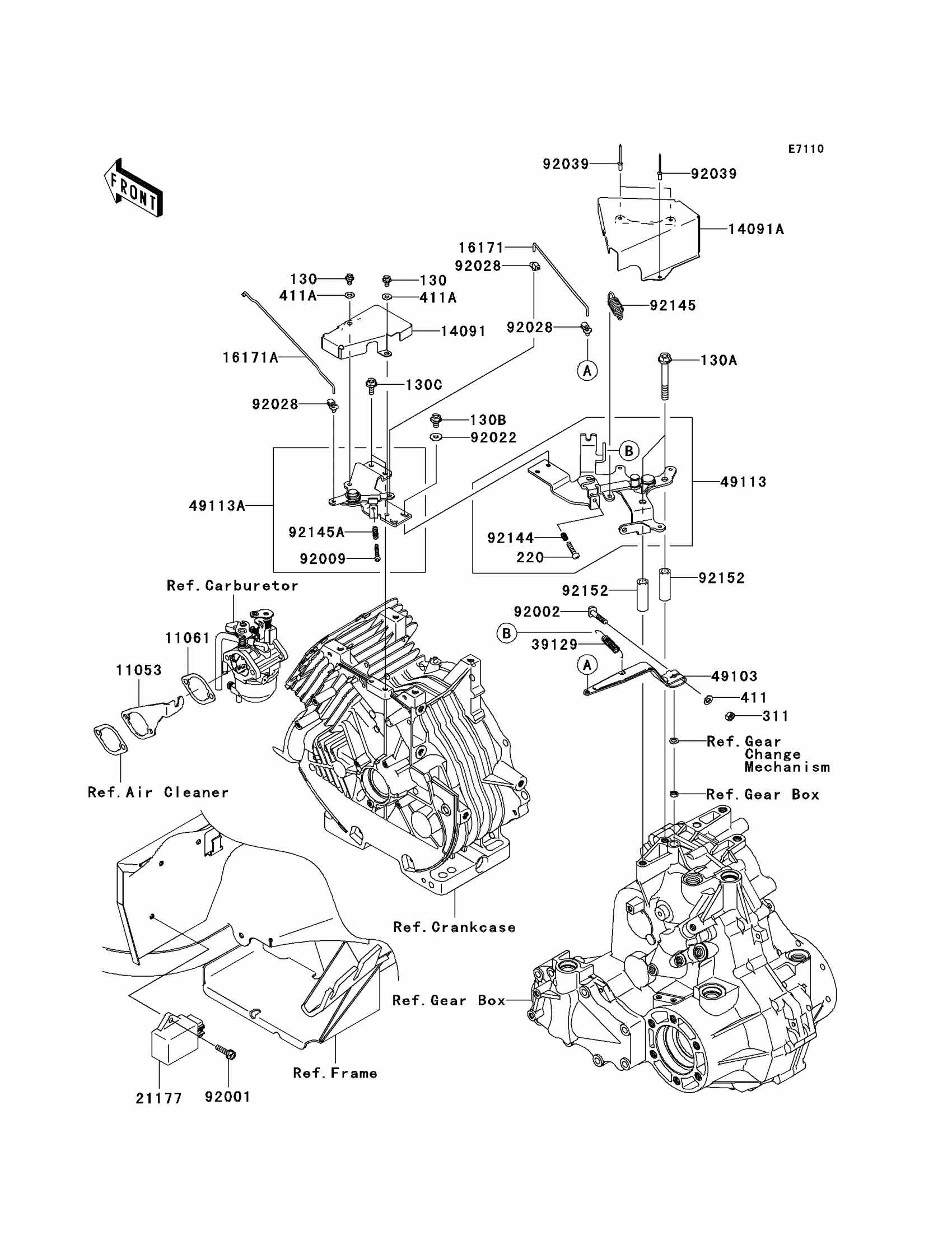

Kawasaki Mule 610 4x4 Control Diagram

#

Description
Price

130

BOLT-FLANGED,5X8

130G0508

$1.85

130A

BOLT-FLANGED,8X60

130G0860

$1.63

130B

BOLT-FLANGED

130J0610

$2.33

130C

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

220

SCREW PAN HEAD 5X22

220B0522

$0.74

311

NUT 6MM

311B0600

$0.93

411

WASHER PLAIN 6MM

411B0600

$2.84

411A

WASHER-PLAIN,5MM,BLACK

411F0500

$0.83

11053

BRACKET

11053-7026

$3.09

11061

GASKET,CHOKE

11061-7026

$1.09

14091

COVER,FR

14091-0401

$14.81

14091A

COVER,RR

14091-0402

$14.81

16171

LINK

16171-0007

$5.60

16171A

LINK

16171-2103

Unavailable

21177

CONTROLLER

21177-0003

$158.79

39129

SPRING-GOVERNOR

39129-0006

$7.76

49103

ARM-GOVERNOR

49103-1055

$13.93

49113

PANEL-COMP-CONTROL

49113-0004

Unavailable

49113A

PANEL-COMP-CONTROL

49113-2196

$30.50

92001

BOLT,FLANGED,6X22

92001-1352

$4.31

92002

BOLT,6X28

92002-2269

$1.14

92009

SCREW,4X30

92009-7002

$0.62

92022

WASHER,6.2X15X1.2

92022-2373

$0.43

92028

BUSHING,GOVERNOR

92028-2156

$2.38

92039

RIVET,BLIND,4.0X9.2

92039-1163

$3.07

92144

SPRING

92144-2266

$4.81

92145

SPRING,RETURN

92145-0301

$5.60

92145A

SPRING

92145-7005

$0.92

92152

COLLAR,9.1X13.95X42

92152-7501

$7.65
