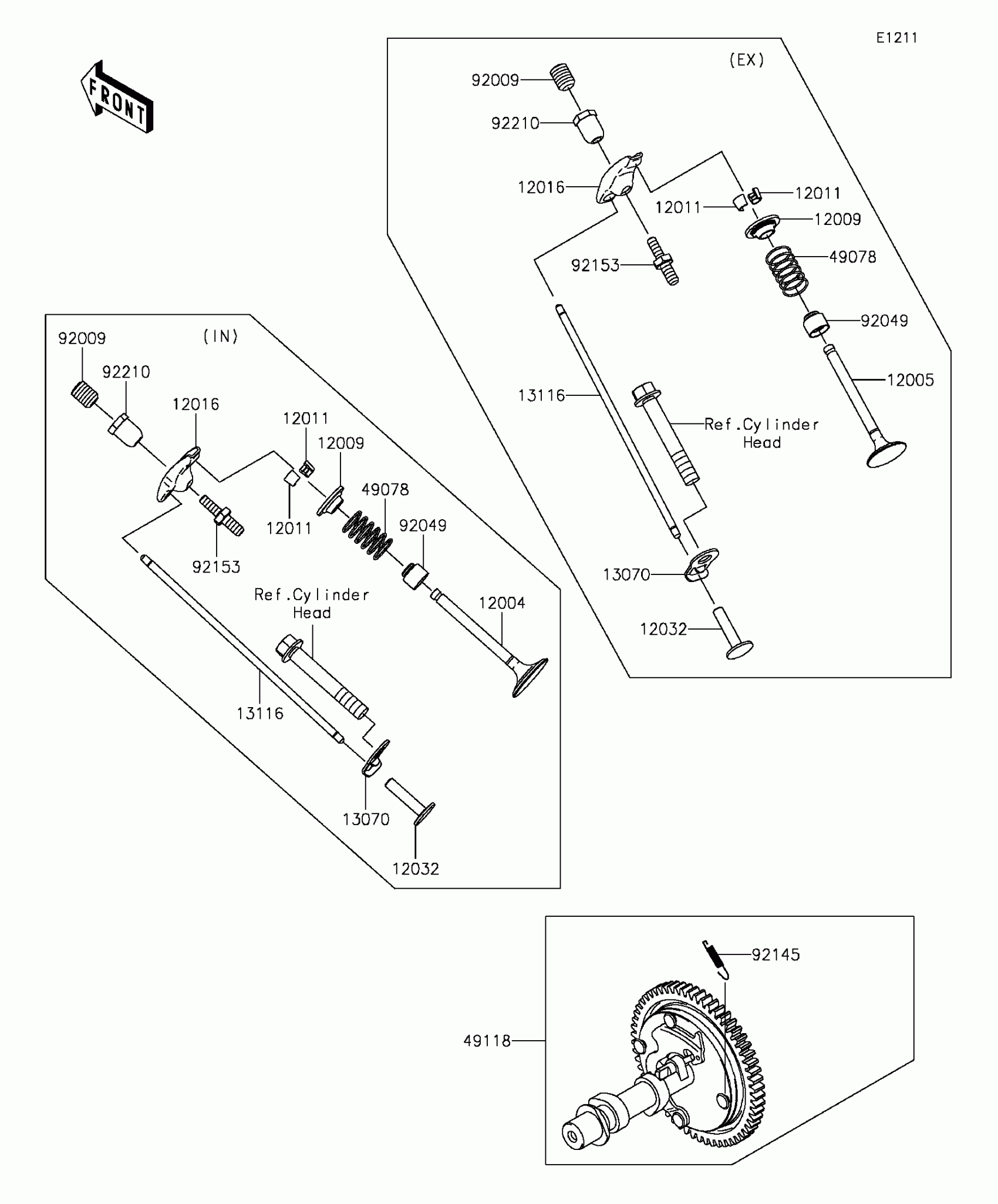

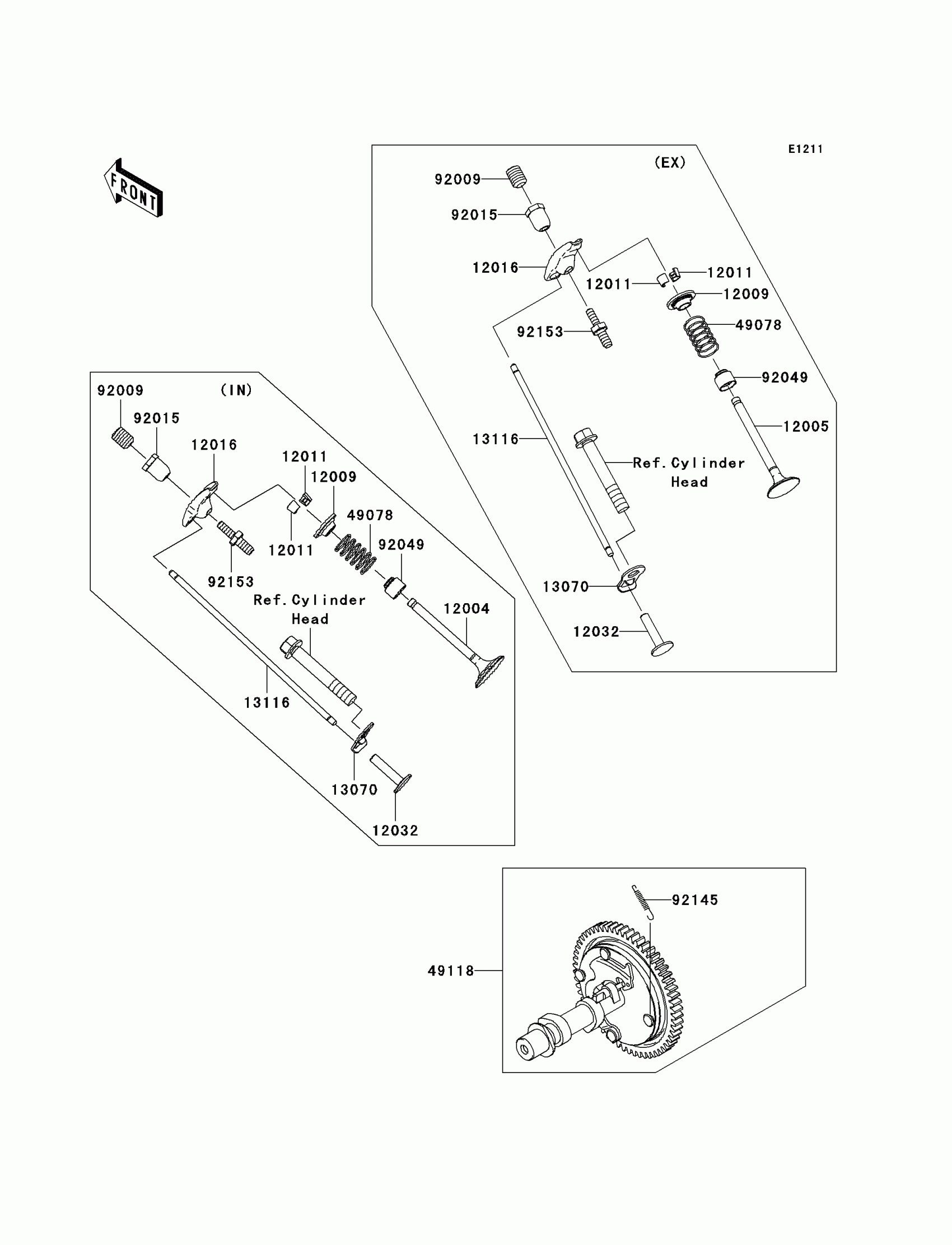

Kawasaki Mule 600 Valve(s)/Camshaft(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-7004

$16.09

12005

VALVE-EXHAUST

12005-7005

$28.46

12009

RETAINER-VALVE SPRING

12009-7002

Unavailable

12011

COLLET

12011-2052

$2.51

12016

ARM-ROCKER

12016-7006

Unavailable

12032

TAPPET

12032-7001

$8.40

13070

GUIDE,ROD-PUSH

13070-7012

$3.62

13116

ROD-PUSH

13116-7004

$14.46

49078

SPRING-ENGINE VALVE

49078-7003

$3.08

49118

CAMSHAFT-COMP

49118-7011

Unavailable

92009

SCREW

92009-2341

$1.39

92015

NUT

92015-2253

$4.95

92049

SEAL-OIL,7X15X13

92049-7020

$3.93

92145

SPRING

92145-7001

$1.43

92153

BOLT

92153-7019

$2.13
