2007 Kawasaki Mule 600 OIL Pump/oil Filter Diagram

← All diagrams

Find the part on the OIL Pump/oil Filter diagram for your 2007 Kawasaki Mule 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

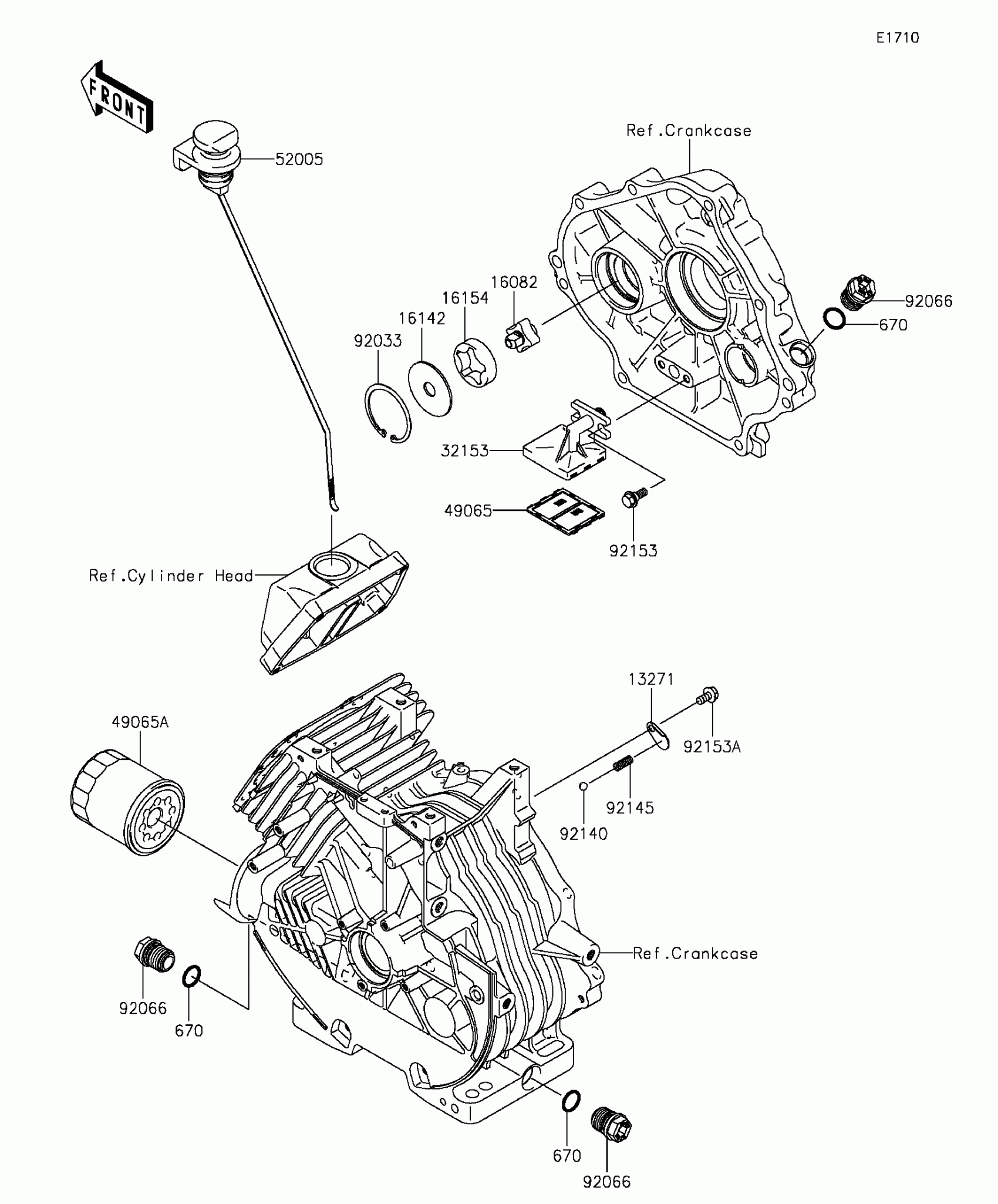

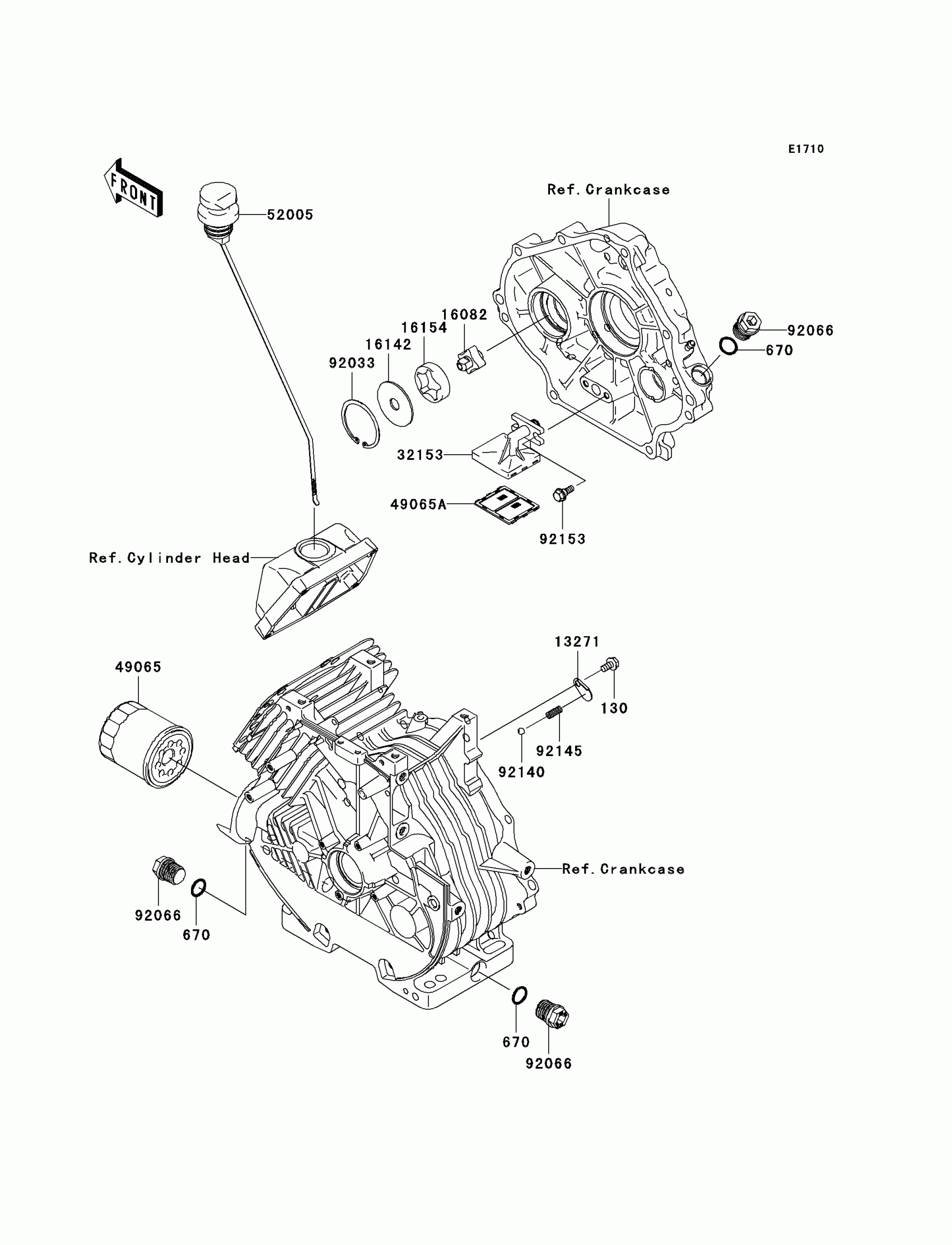

2007 Kawasaki Mule 600 OIL Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT

130B0612

1
Out of stock

670

O RING,16MM

670D2016

1
Out of stock

13271

PLATE,OIL RELIEF

13271-7026

1

$0.78

In stock

16082

PUMP-ASSY-OIL

16082-7002

1
Out of stock

16142

COVER-PUMP

16142-7001

1
Out of stock

16154

ROTOR-PUMP,OUT

16154-2054

1
Out of stock

32153

PIPE

32153-7002

1
Out of stock

49065

FILTER-OIL

49065-2078

1
Out of stock

49065A

FILTER-OIL

49065-7005

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-7017

1
Out of stock

92033

RING-SNAP

92033-7008

1
Out of stock

92066

PLUG

92066-7003

1
Out of stock

92140

BALL

92140-7001

1
Out of stock

92145

SPRING,OIL RELIEF

92145-7035

1
Out of stock

92153

BOLT,FLANGED,6X16

92153-7007

1
Out of stock
