2007 Kawasaki Mule 600 Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 2007 Kawasaki Mule 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

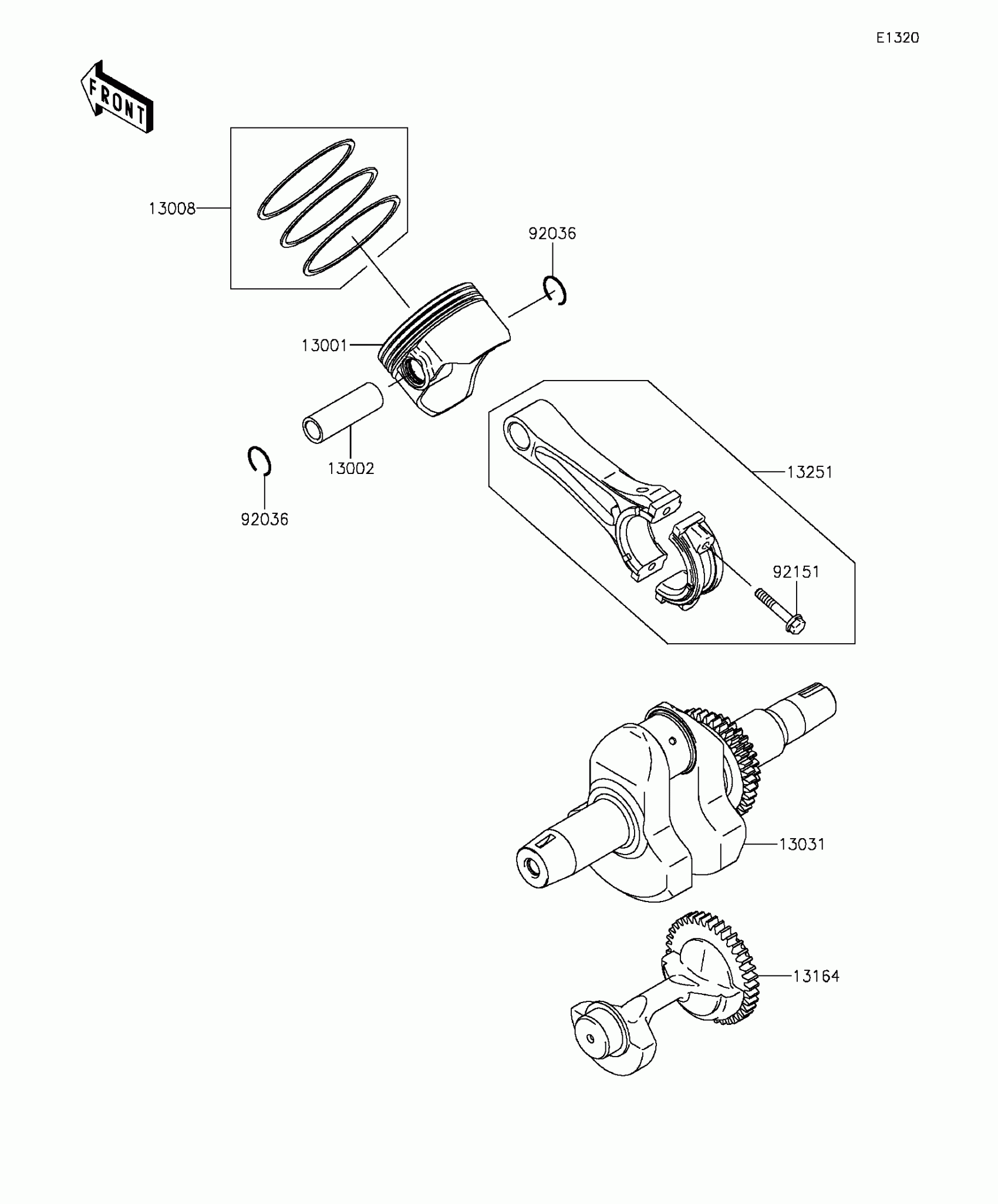

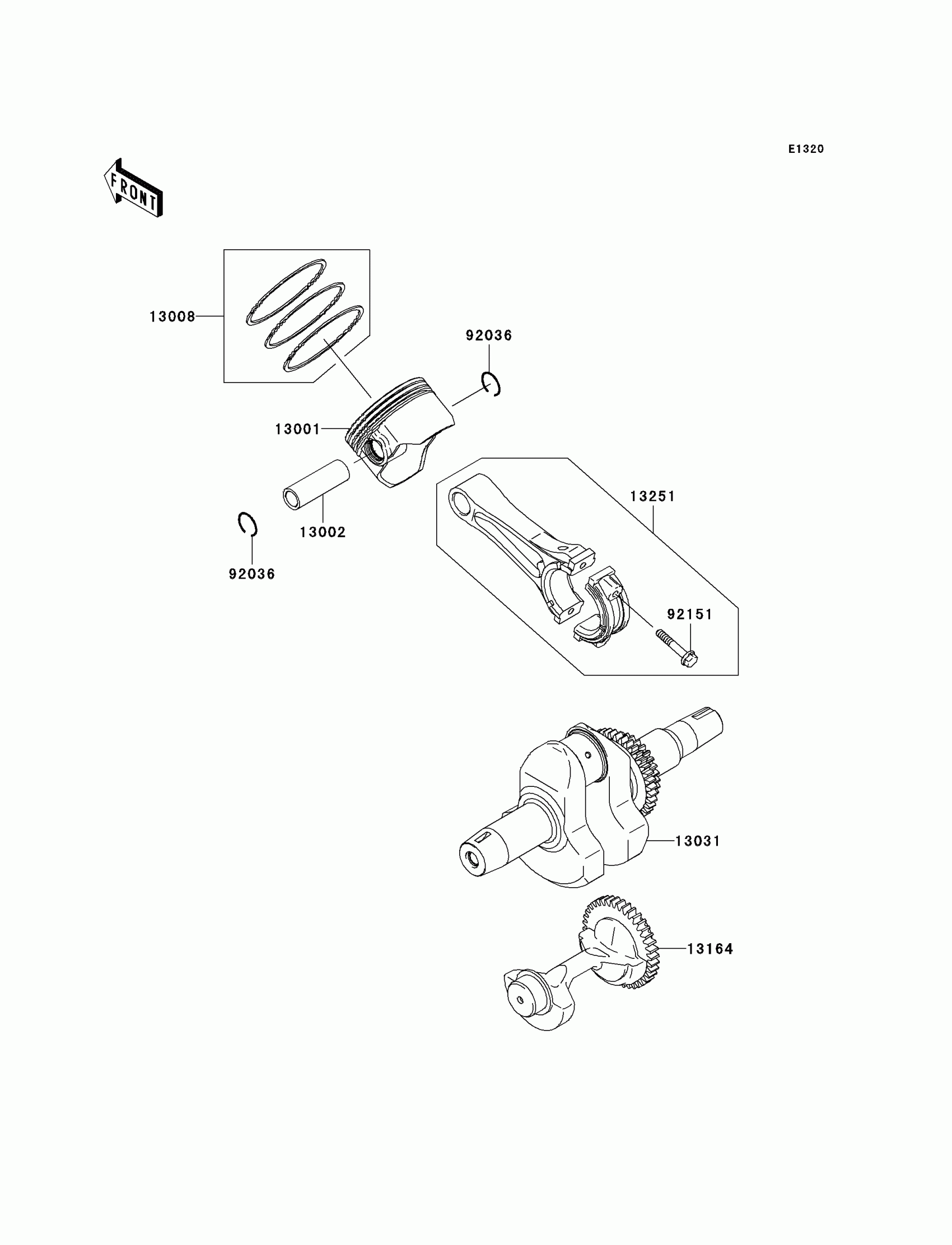

2007 Kawasaki Mule 600 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE

13001-7016

1
Out of stock

13002

PIN-PISTON

13002-7003

1
Out of stock

13008

RING-SET-PISTON

13008-6063

1
Out of stock

13031

CRANKSHAFT-COMP

13031-7061

1
Out of stock

13164

BALANCER-COMP

13164-7002

1
Out of stock

13251

ROD-ASSY-CONNECTING

13251-7013

1
Out of stock

92036

RING-SNAP,PISTON PIN

92036-008

1
Out of stock

92151

BOLT,6X35

92151-7017

1
Out of stock
← Crankcase Cylinder Head →
