Description

Price

224

SCREW-PAN-WP-CROS,4X12

224C0412

Unavailable

311

NUT-HEX

311C0400

$0.62

411

WASHER PLAIN 8MM

411B0800

$0.93

554

PIN,SNAP

554A0600

$0.93

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

14091

COVER,STORAGE GRIP,GRAY

14091-1228-284

Unavailable

14091A

COVER,CONTROL PANEL,GRAY

14091-1399-284

Unavailable

27012

HOOK

27012-1607

$7.75

27012A

HOOK

27012-1612

$3.92

35004

FENDER-FRONT,STORAGE,A.RED

35004-0048-260

$242.74

39012

CASE-STORAGE,RH,GRAY

39012-1061-284

$45.13

39145

TRIM-SEAL,L=1940

39145-0007

$41.96

39145A

TRIM-SEAL,L=774

39145-1130

$22.86

92009

SCREW,TAPPING,4X12

92009-1444

$3.21

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92039

RIVET

92039-1041

$3.65

92039A

RIVET

92039-1229

$1.19

92043

PIN,6X14.5

92043-125

$6.57

92066

PLUG

92066-1485

$2.44

92143

COLLAR

92143-1087

$4.31

35004A

FENDER-FRONT,STORAGE,H.GREEN

35004-0048-6A

$231.03

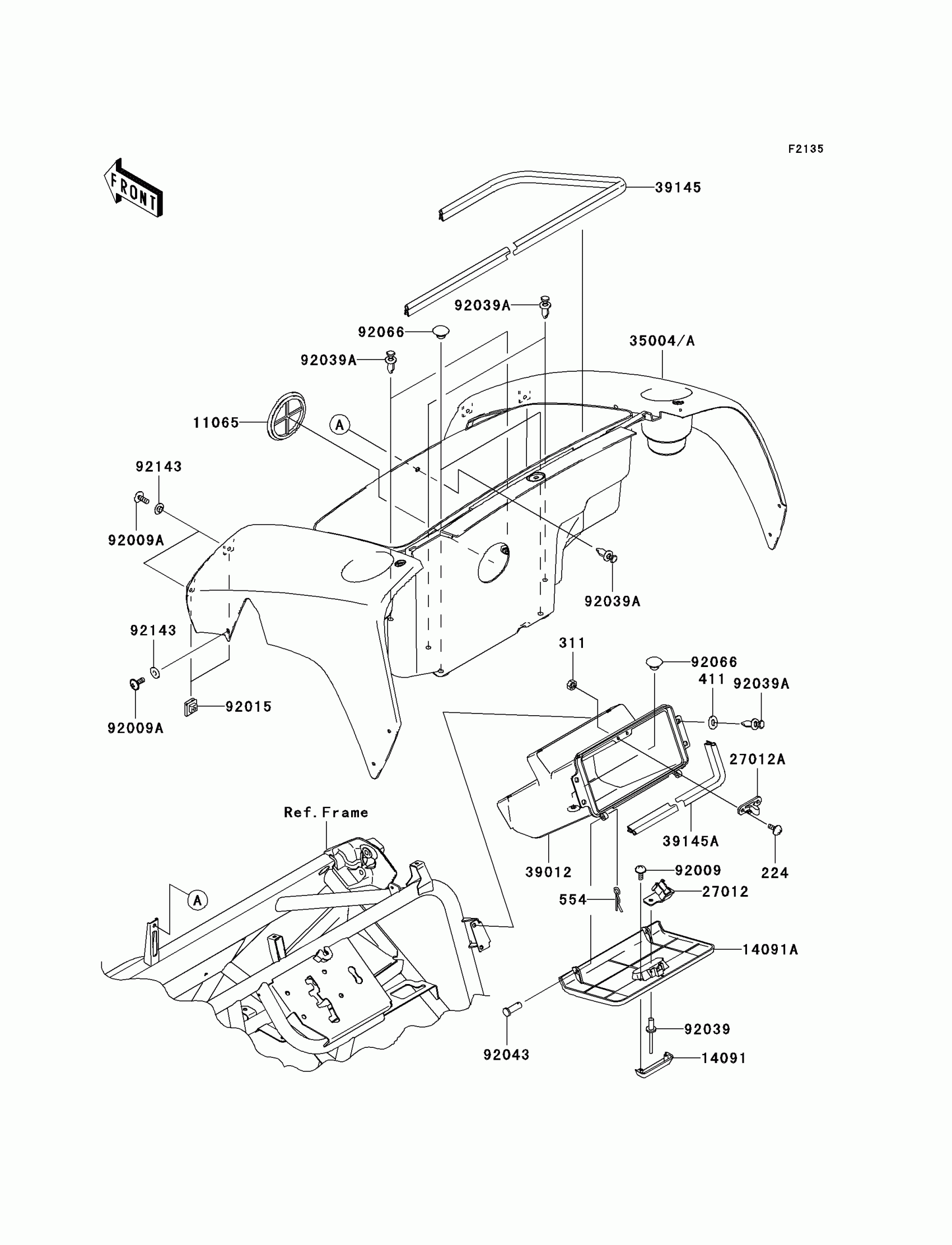

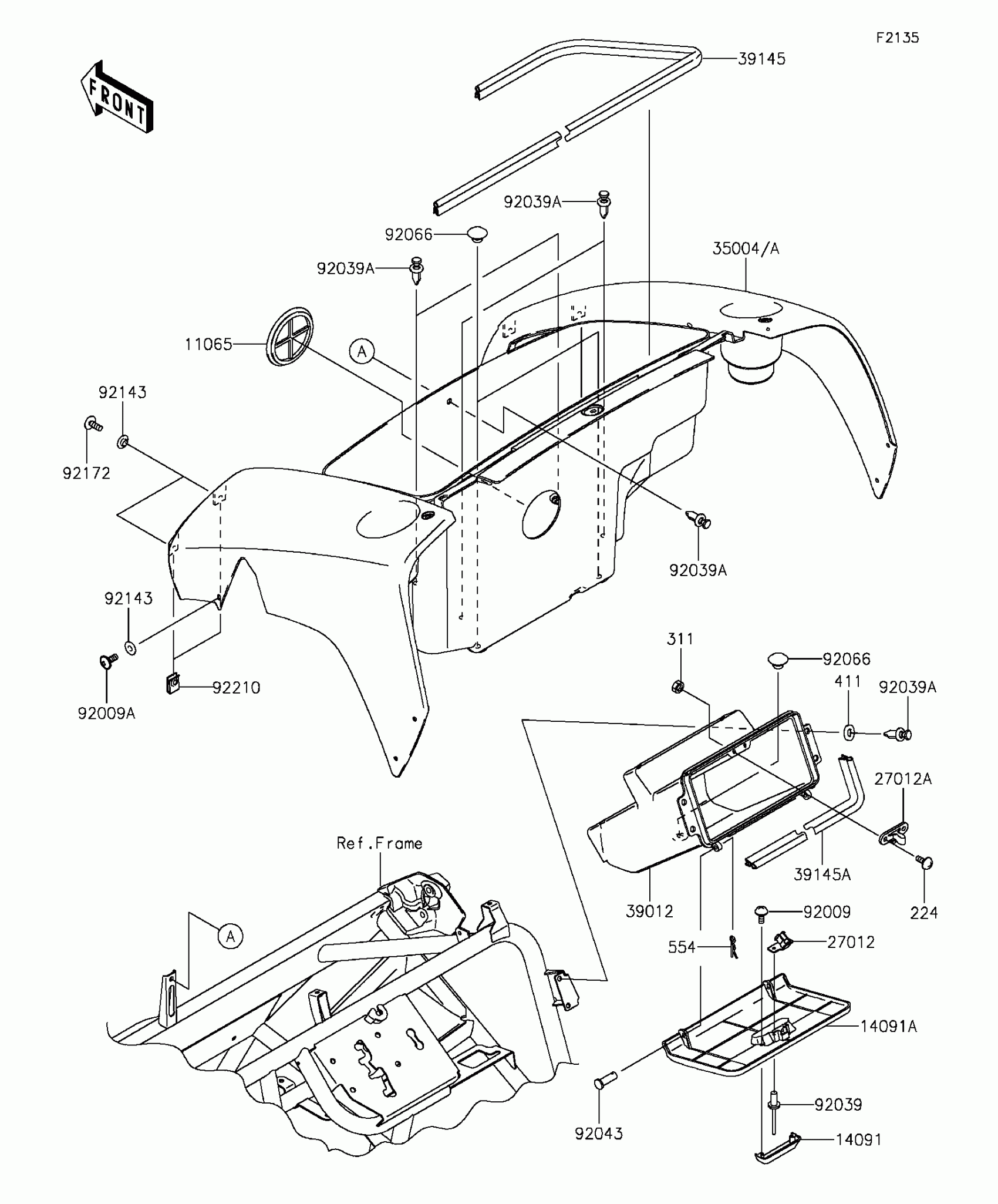

Kawasaki Mule 600 Front Box Diagram

SCREW-PAN-WP-CROS,4X12

NUT-HEX

WASHER PLAIN 8MM

PIN,SNAP

CAP,F.BLACK

COVER,STORAGE GRIP,GRAY

COVER,CONTROL PANEL,GRAY

HOOK

HOOK

FENDER-FRONT,STORAGE,A.RED

CASE-STORAGE,RH,GRAY

TRIM-SEAL,L=1940

TRIM-SEAL,L=774

SCREW,TAPPING,4X12

SCREW,6X16

NUT,CLAMP,6MM

RIVET

RIVET

PIN,6X14.5

PLUG

COLLAR

FENDER-FRONT,STORAGE,H.GREEN
