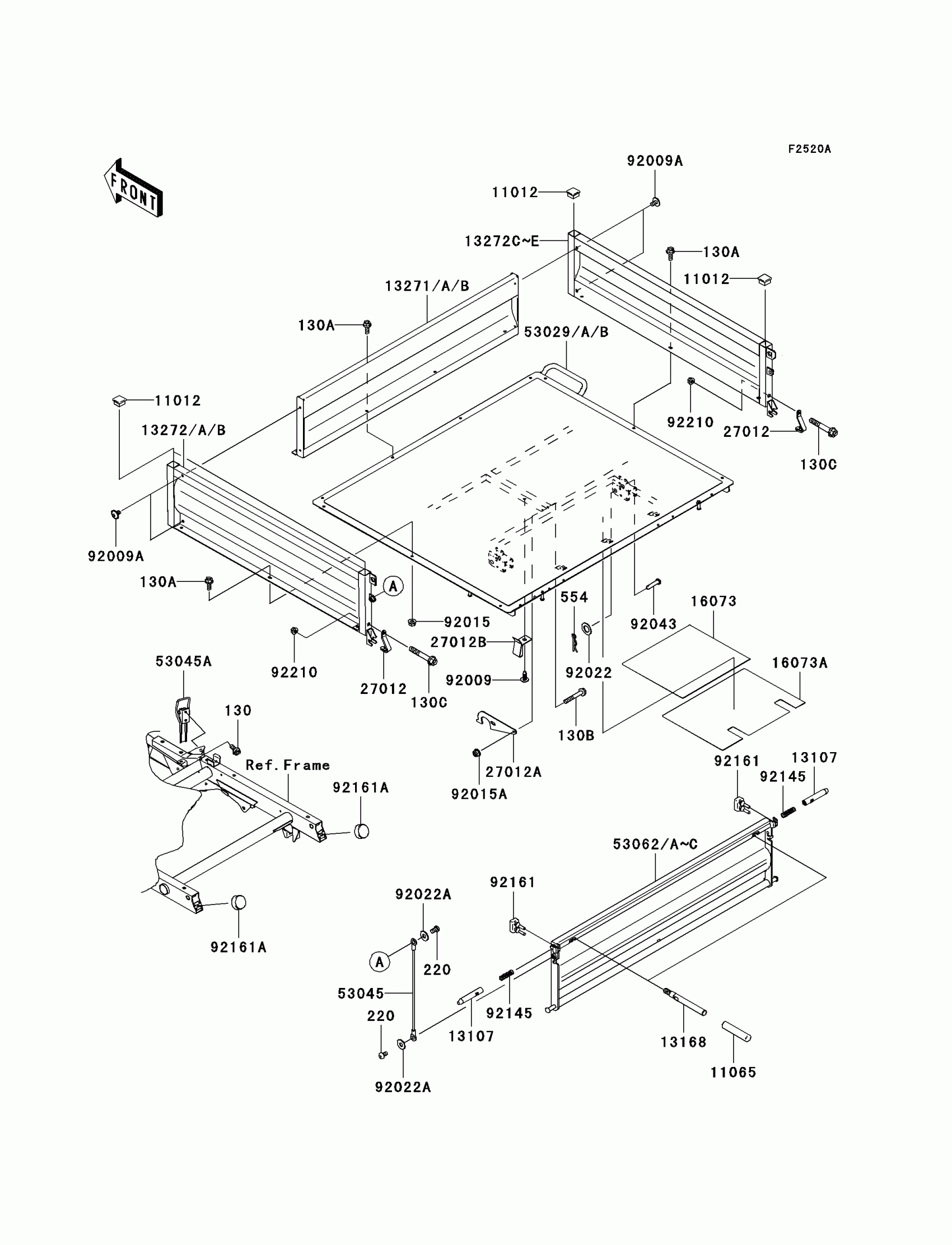

Kawasaki Mule 600 Carrier(s)(B8F/B9F) Diagram

#

Description
Price

11012

CAP

11012-1784

$4.74

11065

CAP

11065-0126

$2.34

13107

SHAFT

13107-0082

$58.67

13168

LEVER

13168-0090

$9.15

13271

PLATE,CARRIER,SIDE,FR,D.R.RED

13271-0394-16M

$204.16

13271A

PLATE,CARRIER,SIDE,FR,W.GREEN

13271-0394-398

$215.19

13272

PLATE,CARRIER,SIDE,LH,D.R.RED

13272-0102-16M

$217.19

13272A

PLATE,CARRIER,SIDE,LH,W.GREEN

13272-0102-398

$217.19

13272C

PLATE,CARRIER,SIDE,RH,D.R.RED

13272-0103-16M

$217.19

13272D

PLATE,CARRIER,SIDE,RH,W.GREEN

13272-0103-398

$217.19

16073

INSULATOR,CARRIER

16073-0039

$56.04

16073A

INSULATOR,CARRIER

16073-0040

$56.44

27012

HOOK,TAIL GATE

27012-0022

$4.81

27012A

HOOK

27012-0044

$31.59

27012B

HOOK,CARRIER

27012-1445

$12.32

53029

CARRIER,D.R.RED

53029-0018-16M

Unavailable

53029A

CARRIER,W.GREEN

53029-0018-398

Unavailable

53045

HOOK-ASSY,TAIL GATE

53045-0006

$21.42

53045A

HOOK-ASSY

53045-1063

$18.86

53062B

GATE-TAIL,D.R.RED

53062-0011-16M

$336.30

53062C

GATE-TAIL,W.GREEN

53062-0011-398

$336.30

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X10

92009-1661

$3.29

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,12.5X22X1.2

92022-072

$2.99

92022A

WASHER,7X18X1.2

92022-1545

$0.84

92043

PIN,12X54

92043-1451

$9.42

92145

SPRING,TENSIONER

92145-1215

$3.52

130

BOLT-FLANGED,6X14

130BB0614

$1.77

130A

BOLT-FLANGED,6X16

130BB0616

$1.49

130B

BOLT-FLANGED,6X40

130BB0640

$2.53

130C

BOLT-FLANGED,8X50

130BB0850

$3.60

220

SCREW-PAN-CROS,6X10

220AB0610

$1.33

554

PIN-SNAP,12MM

554DA1200

$2.63

92161

DAMPER

92161-0258

$3.18

92161A

DAMPER

92161-1065

$2.84

92210

NUT,FLANGED,8MM

92210-0555

$1.47
