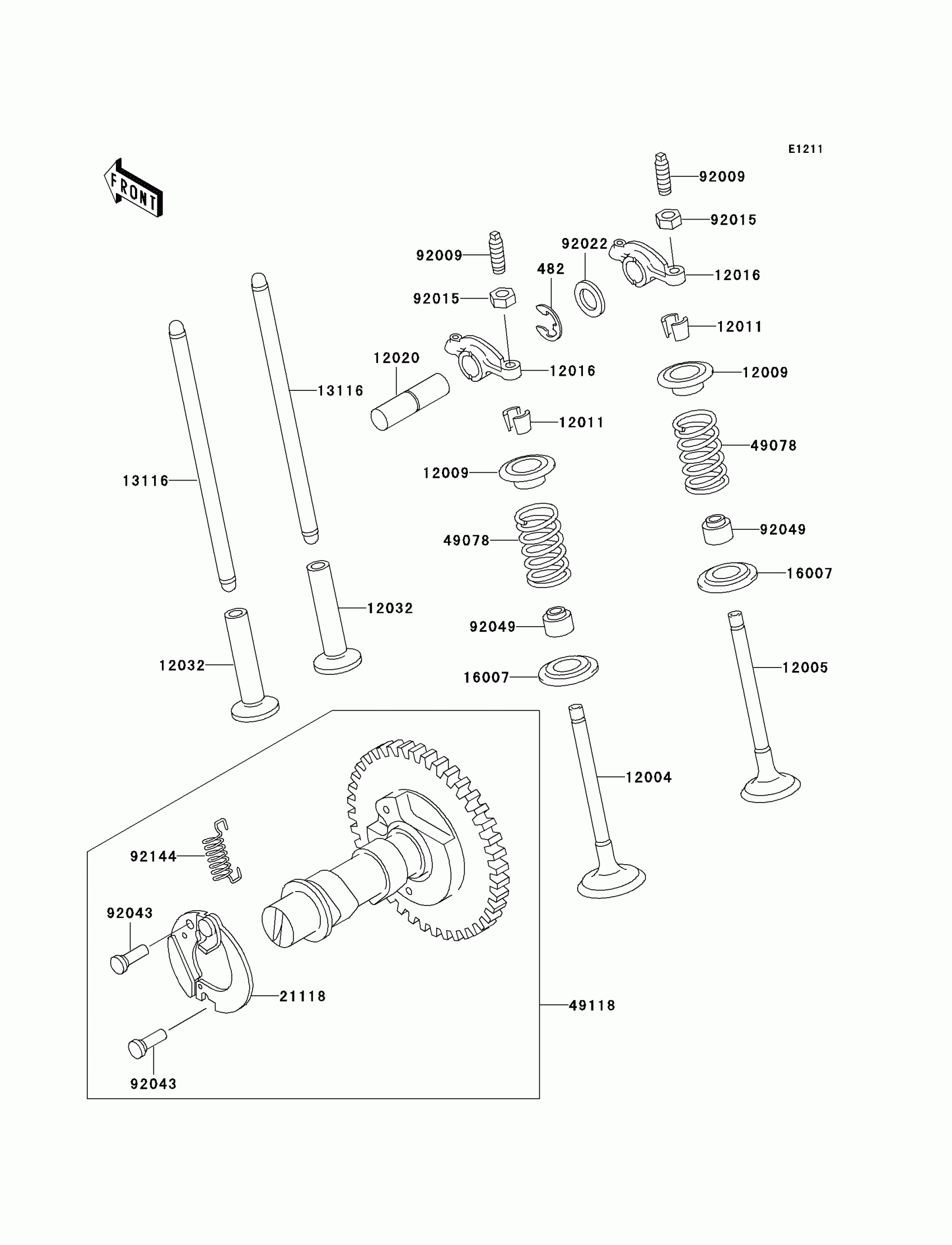

Kawasaki Mule 550 Valve(s)/Camshaft(s) Diagram

Description

Price

482

CIRCLIP-TYPE-E,10MM

482J0100

$0.73

12004

VALVE-INTAKE

12004-2084

$18.22

12005

VALVE-EXHAUST

12005-2077

$30.81

12009

RETAINER-VALVE SPRING

12009-2060

$3.71

12011

COLLET

12011-2052

$2.51

12016

ARM-ROCKER

12016-2058

$23.16

12020

SHAFT-ROCKER

12020-2060

$5.47

12032

TAPPET

12032-2060

$11.84

13116

ROD-PUSH

13116-2054

$14.49

16007

SEAT-SPRING

16007-2052

$0.70

21118

DECOMPRESSOR

21118-2089

$7.99

49078

SPRING-ENGINE VALVE

49078-2060

$4.30

49118

CAMSHAFT-COMP

49118-2081

$139.87

92009

SCREW,VALVE ADJUST

92009-1109

$2.29

92015

NUT,VALVE ADJUST LOCK

92015-1137

$1.00

92022

WASHER,12.1X19X1.6

92022-2397

$0.68

92043

PIN,5X17.6

92043-2113

$1.74

92049

SEAL-OIL,VSB-7X12X9.7

92049-2100

$4.68

92144

SPRING

92144-2323

$3.49
