Description

Price

190

BOLT-UPSET-WS,10X16

190H1016

$4.15

11012

CAP,WHEEL

11012-1969

$5.65

13168

LEVER

13168-1481

$15.18

13168A

LEVER

13168-1482

$30.88

41035

PANEL-ASSY-BRAKE,RR

41035-1283

$549.62

41038

DRUM,REAR BRAKE

41038-1239

$315.98

41047

SHOE-ASSY-BRAKE,RR

41047-1052

$25.22

42045

NUT,CASTLE,18MM

42045-018

$9.23

43057

CAP-BREATHER

43057-1054

$5.02

43092

CYLINDER

43092-1058

$132.49

49035

PIN-SPRING

49035-1058

$4.80

92002

BOLT,10X30

92002-1388

$9.48

92022

WASHER,18.3X34X4.5

92022-1658

$3.92

92033

RING-SNAP

92033-1279

$3.54

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN,SHOE HOLD

92043-1460

$4.87

92066

PLUG

92066-1365

$5.06

92144

SPRING,RETURN,LWR

92144-1613

$7.98

92144A

SPRING,LH

92144-1614

$6.41

92144B

SPRING

92144-1615

$5.25

92144C

SPRING,SHOE HOLD

92144-1616

$9.83

92144D

SPRING,RETURN,UPP

92144-1851

$9.32

92144E

SPRING,SHOE HOLD

92144-1858

$9.83

92150

BOLT,FLANGED,6X10

92150-1664

$4.39

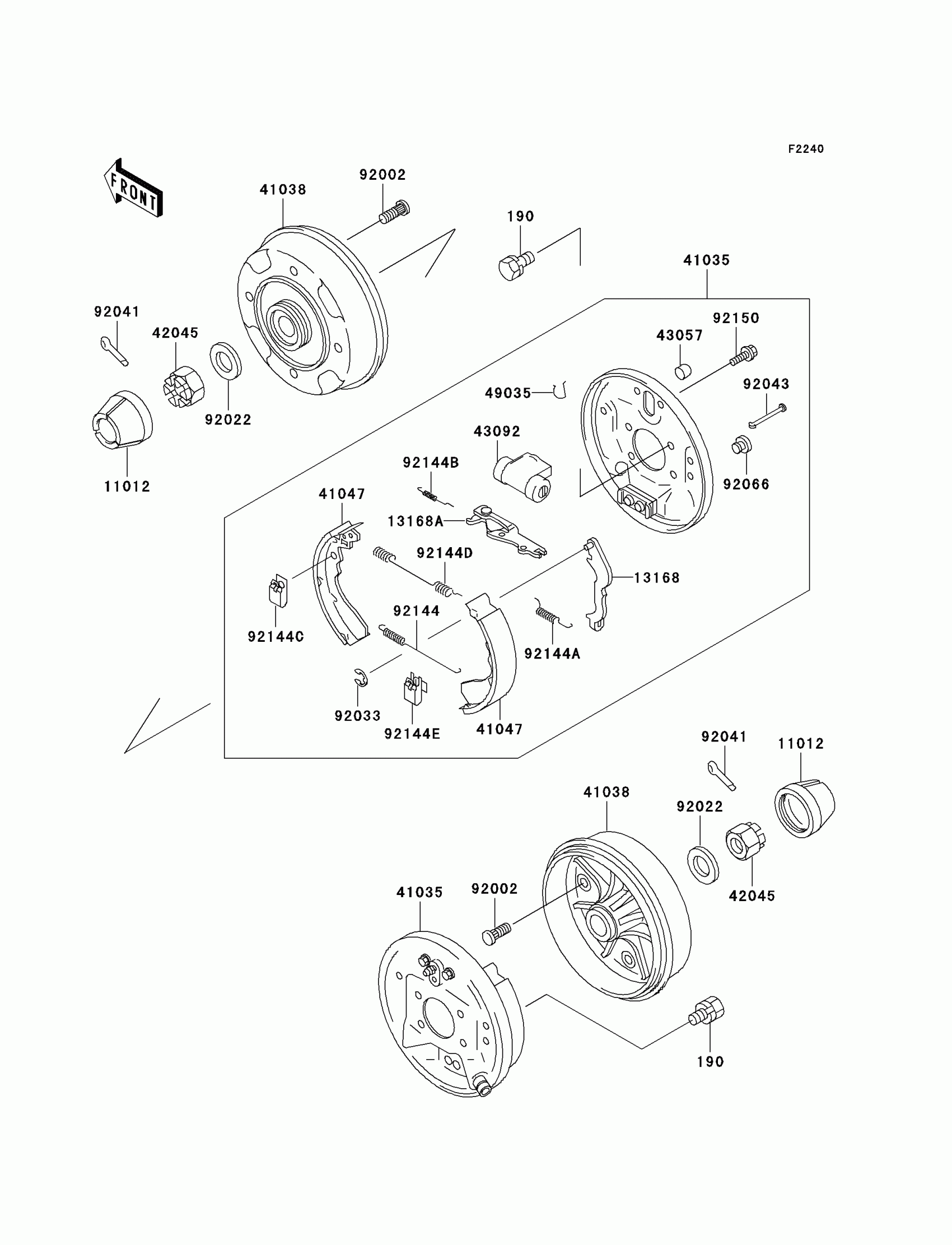

Kawasaki Mule 550 Rear Hubs/Brakes Diagram

BOLT-UPSET-WS,10X16

CAP,WHEEL

LEVER

LEVER

PANEL-ASSY-BRAKE,RR

DRUM,REAR BRAKE

SHOE-ASSY-BRAKE,RR

NUT,CASTLE,18MM

CAP-BREATHER

CYLINDER

PIN-SPRING

BOLT,10X30

WASHER,18.3X34X4.5

RING-SNAP

COTTER,4.0X35

PIN,SHOE HOLD

PLUG

SPRING,RETURN,LWR

SPRING,LH

SPRING

SPRING,SHOE HOLD

SPRING,RETURN,UPP

SPRING,SHOE HOLD

BOLT,FLANGED,6X10
