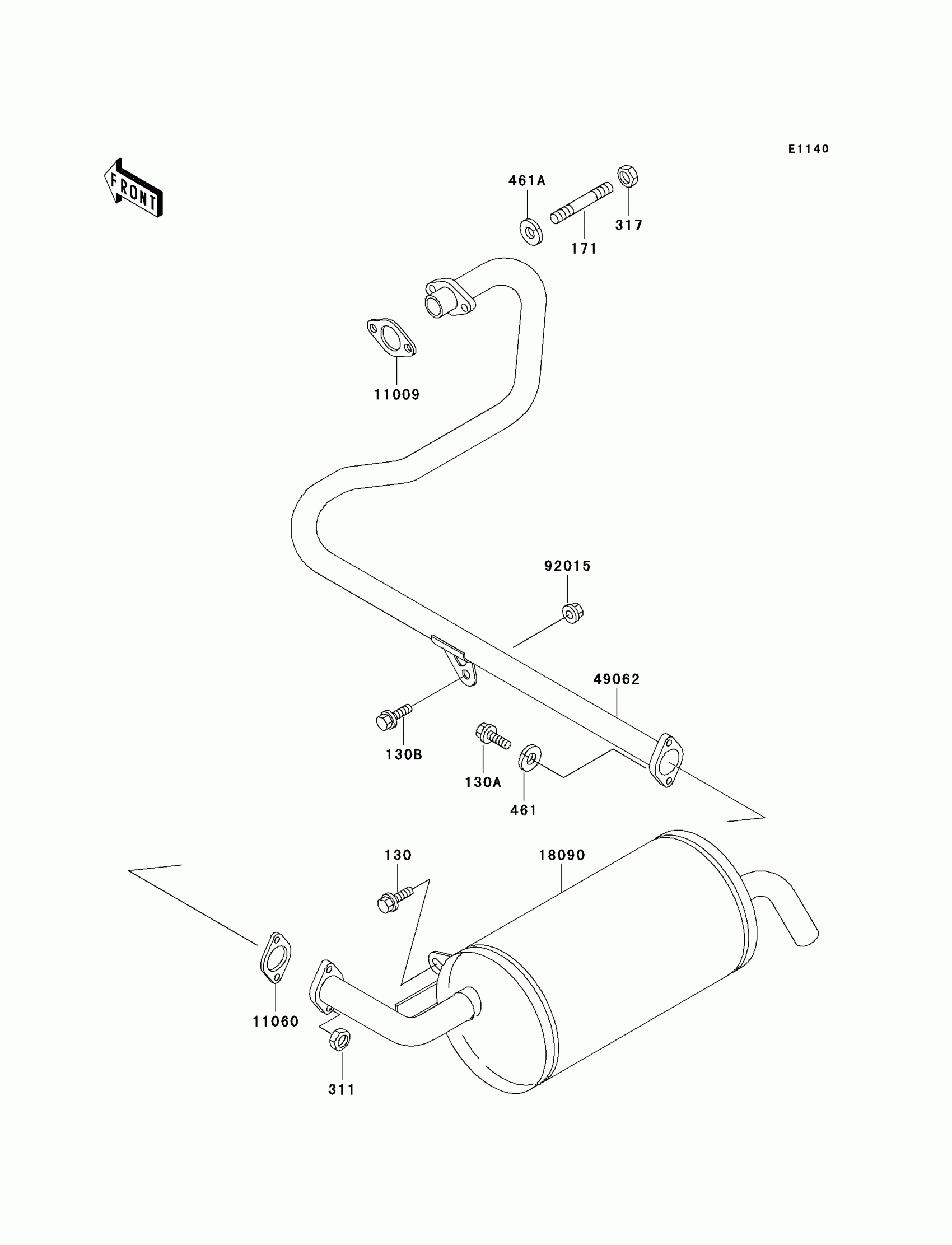

Kawasaki Mule 550 Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X16

130B0816

$0.83

130A

BOLT,FLANGED,6X25

130G0625

$1.17

130B

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

171

BOLT-STUD

171G0820

$1.42

311

NUT-HEX,6MM

311G0600

$2.19

317

NUT

317R0800

$1.96

461

WASHER SPRING 6MM

461F0600

$0.69

461A

WASHER SPRING 8MM

461F0800

$0.40

11009

GASKET,EXHAUST PIPE

11009-2487

$4.35

11060

GASKET,EXHAUST PIPE

11060-2079

$4.91

18090

BODY-COMP-MUFFLER

18090-1556

$236.62

49062

PIPE-COMP-EXHAUST

49062-1126

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69
