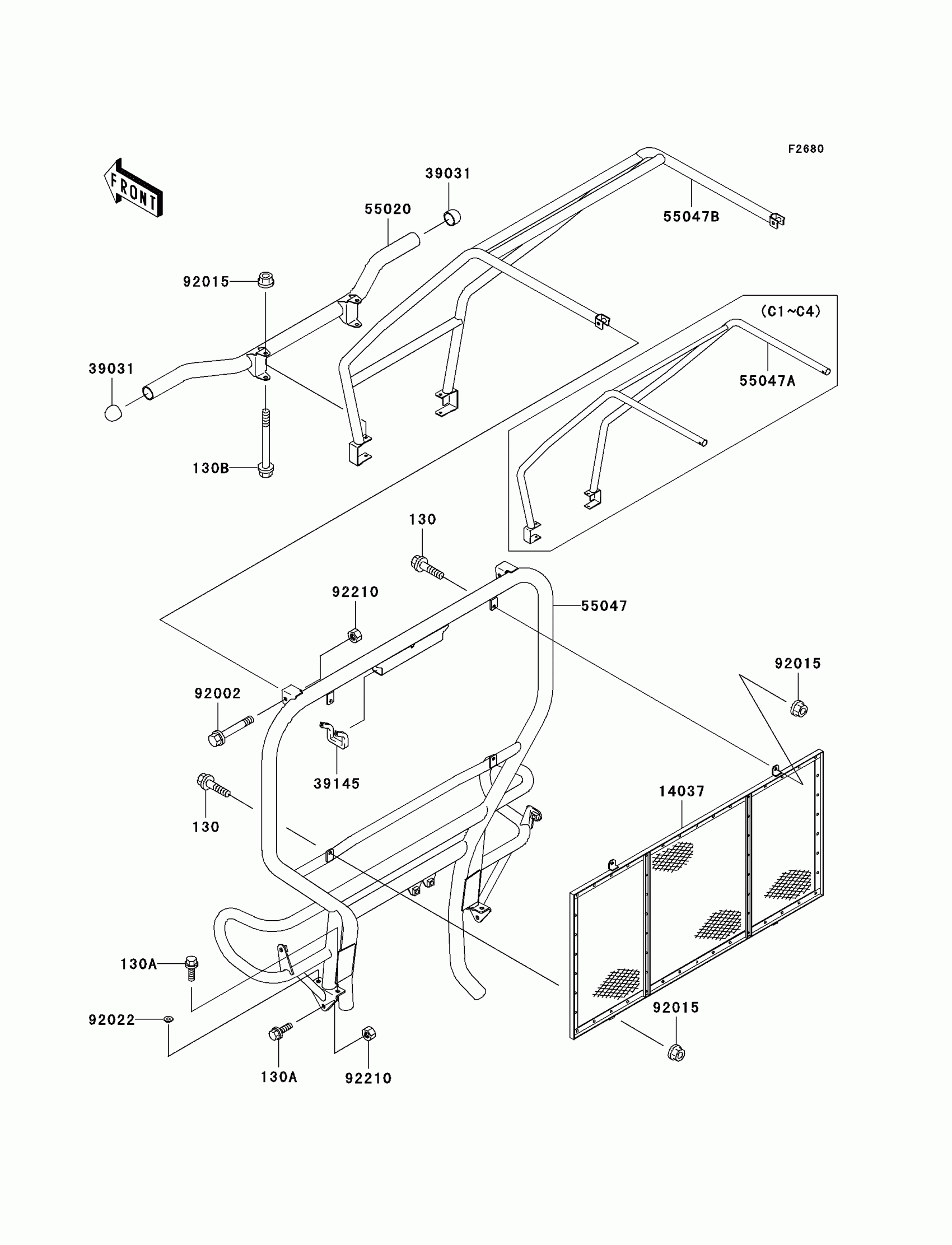

Kawasaki Mule 550 Guard(s) Diagram

Description

Price

130

BOLT-FLANGED,8X20

130J0820

$0.83

130A

BOLT-FLANGED,10X20

130J1020

$5.55

130B

BOLT-FLANGED

130S08100

$8.50

14037

SCREEN,BAR COMP,RR

14037-1230

$173.97

39031

CAP-END,BUMPER PIPE

39031-1059

$9.55

39145

TRIM-SEAL,L=140

39145-1105

$3.99

55020

GUARD,FRONT BUMPER

55020-1576

$169.10

55047

BAR-COMP,RR

55047-1009

$221.61

55047A

BAR-COMP,FR

55047-1010

$161.75

92002

BOLT,10X55

92002-1127

$9.57

92015

NUT,FLANGED,LOCK,8MM

92015-1696

$4.67

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$3.21

92210

NUT,LOCK,10MM

92210-1204

$4.31
