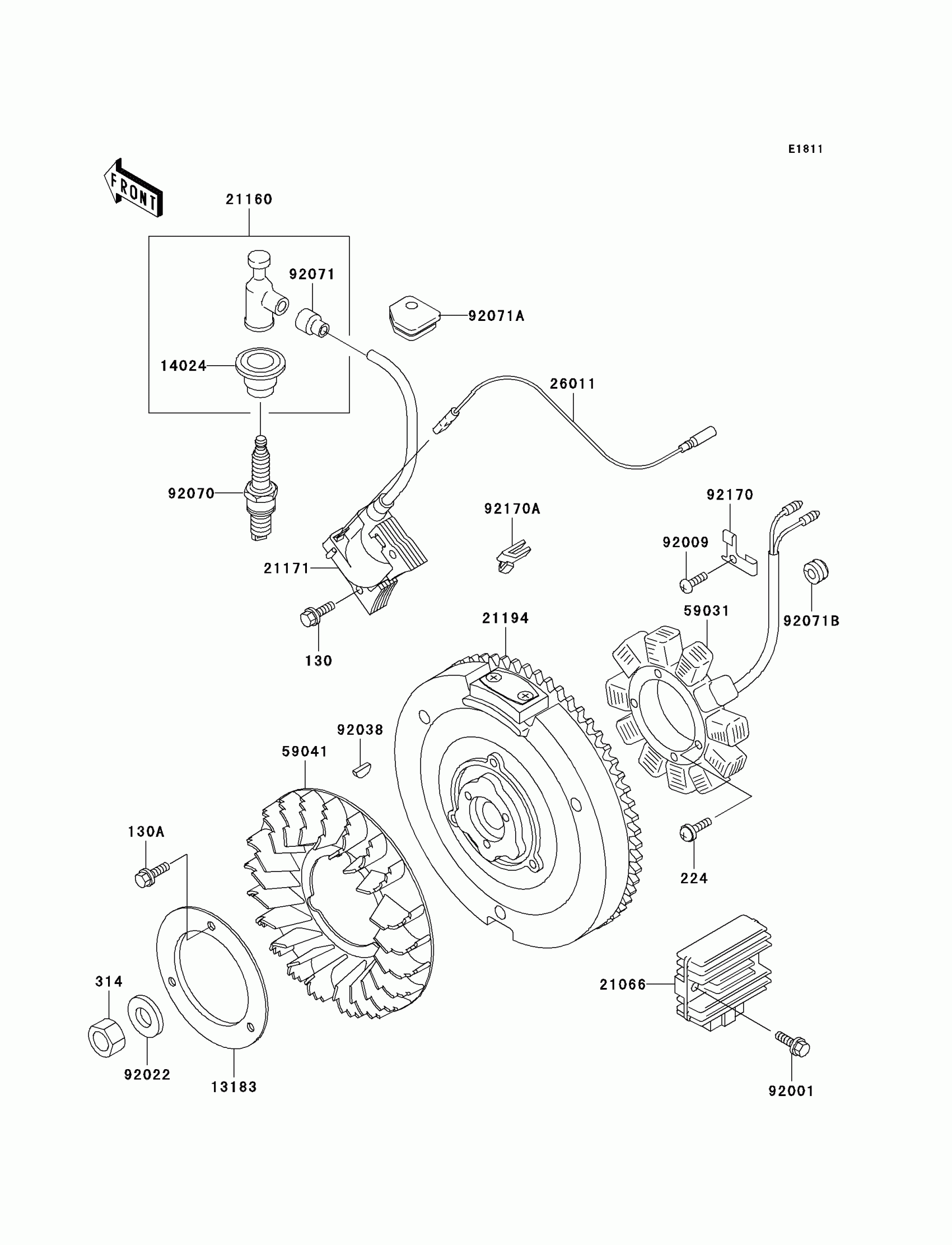

Kawasaki Mule 550 Generator/Ignition Coil Diagram

Description

Price

130

BOLT-FLANGED

130B0525

Unavailable

130A

BOLT-FLANGED,6X10

130G0610

$1.17

224

SCREW-PAN-WP-CROS

224B0620

$0.57

314

NUT-HEX-FINE

314G1600

$1.90

13183

PLATE

13183-2407

$3.69

14024

COVER

14024-2234

$2.83

21066

REGULATOR-VOLTAGE

21066-2004

$86.61

21160

CAP-ASSY-PLUG

21160-2051

$16.42

21171

COIL-ASSY-IGNITION

21171-2207

$109.58

21194

FLYWHEEL-COMP

21194-2334

$190.10

26011

WIRE-LEAD,L=300

26011-2333

$7.08

59031

COIL-CHARGING

59031-2097

$92.72

59041

FAN

59041-2088

$15.79

92001

BOLT,FLANGED,6X22

92001-1352

$4.31

92009

SCREW

92009-2308

$0.43

92022

WASHER

92022-2205

$2.49

92038

KEY,WOODRUFF

92038-2094

$2.07

92070

PLUG-SPARK,BPR5ES(NGK)

92070-2077

$4.40

92071

GROMMET

92071-2008

$1.14

92071A

GROMMET

92071-2112

$2.78

92071B

GROMMET

92071-2125

$1.52

92170

CLAMP

92170-2016

$2.49

92170A

CLAMP

92170-2017

$3.71
