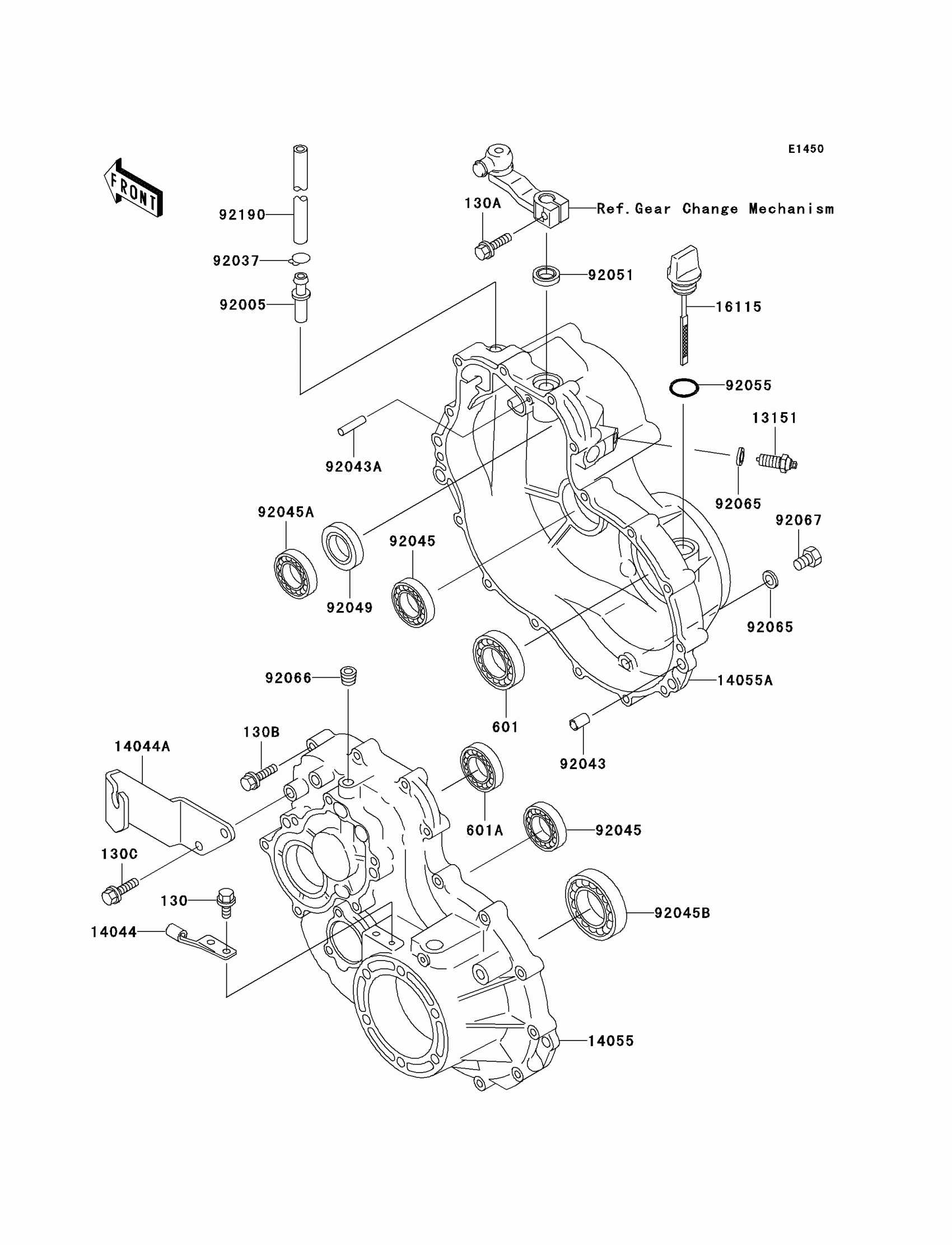

Kawasaki Mule 550 Gear Box Diagram

#

Description
Price

130

BOLT-FLANGED

130D0610

$0.48

130A

BOLT-FLANGED

130H0620

$1.69

130B

BOLT,FLANGED,6X35

130H0635

$0.93

130C

BOLT-FLANGED,8X20

130H0820

$4.06

601

BEARING-BALL

601B6008

$26.46

601A

BEARING-BALL

601B6303U

$26.36

13151

SWITCH-COMP,NEUTRAL

13151-1069

$27.37

14044

HOLDER-CABLE

14044-1061

$9.02

14044A

HOLDER-CABLE,CHANGE

14044-1071

$48.79

14055

CASE-GEAR,LH

14055-1096

$534.29

14055A

CASE-GEAR,RH

14055-1097

$420.50

16115

CAP-OIL FILLER

16115-1060

$12.18

92005

FITTING,BREATHER

92005-1127

$17.17

92037

CLAMP,TUBE

92037-1505

$4.76

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN

92043-1415

$2.59

92045

BEARING-BALL,#6204

92045-1032

$26.25

92045A

BEARING-BALL,6205CM

92045-1200

Unavailable

92045B

BEARING-BALL,6210CM

92045-1213

$55.61

92049

SEAL-OIL

92049-2014

$9.11

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,20X3

92055-2185

$1.03

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG,PT1/8X7

92066-1227

$5.90

92067

PLUG,DRAIN,10X12

92067-001

$4.41

92190

TUBE

92190-3807

$6.02
