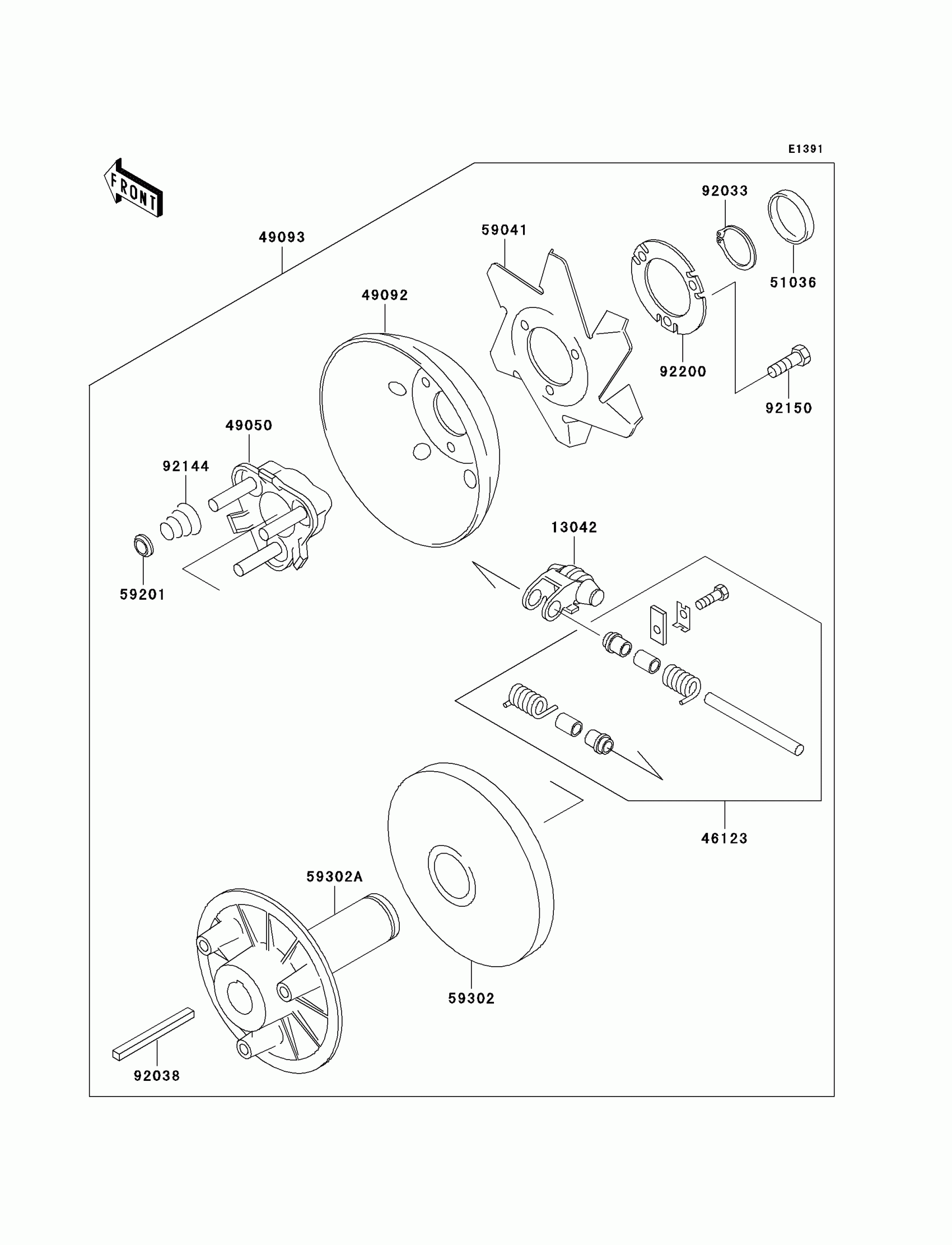

Kawasaki Mule 550 Drive Converter Diagram

Description

Price

13042

WEIGHT

13042-1080

$73.92

46123

SPRING-COMP

46123-1054

$154.33

49050

SPIDER

49050-1054

$123.03

49092

RAMP

49092-1054

$41.38

49093

CONVERTER-ASSY-DRIVE

49093-1056

$576.69

51036

CUP

51036-1057

$16.78

59041

FAN

59041-1056

$23.38

59201

BUMPER

59201-1054

$17.10

59302

SHEAVE-COMP,MOVABLE

59302-1057

$193.62

59302A

SHEAVE-COMP,FIXED

59302-1061

$167.68

92033

RING-SNAP

92033-1275

Unavailable

92038

KEY

92038-1054

$4.80

92144

SPRING

92144-1600

$17.37

92150

BOLT

92150-1445

$27.80

92200

WASHER

92200-1076

$27.80
