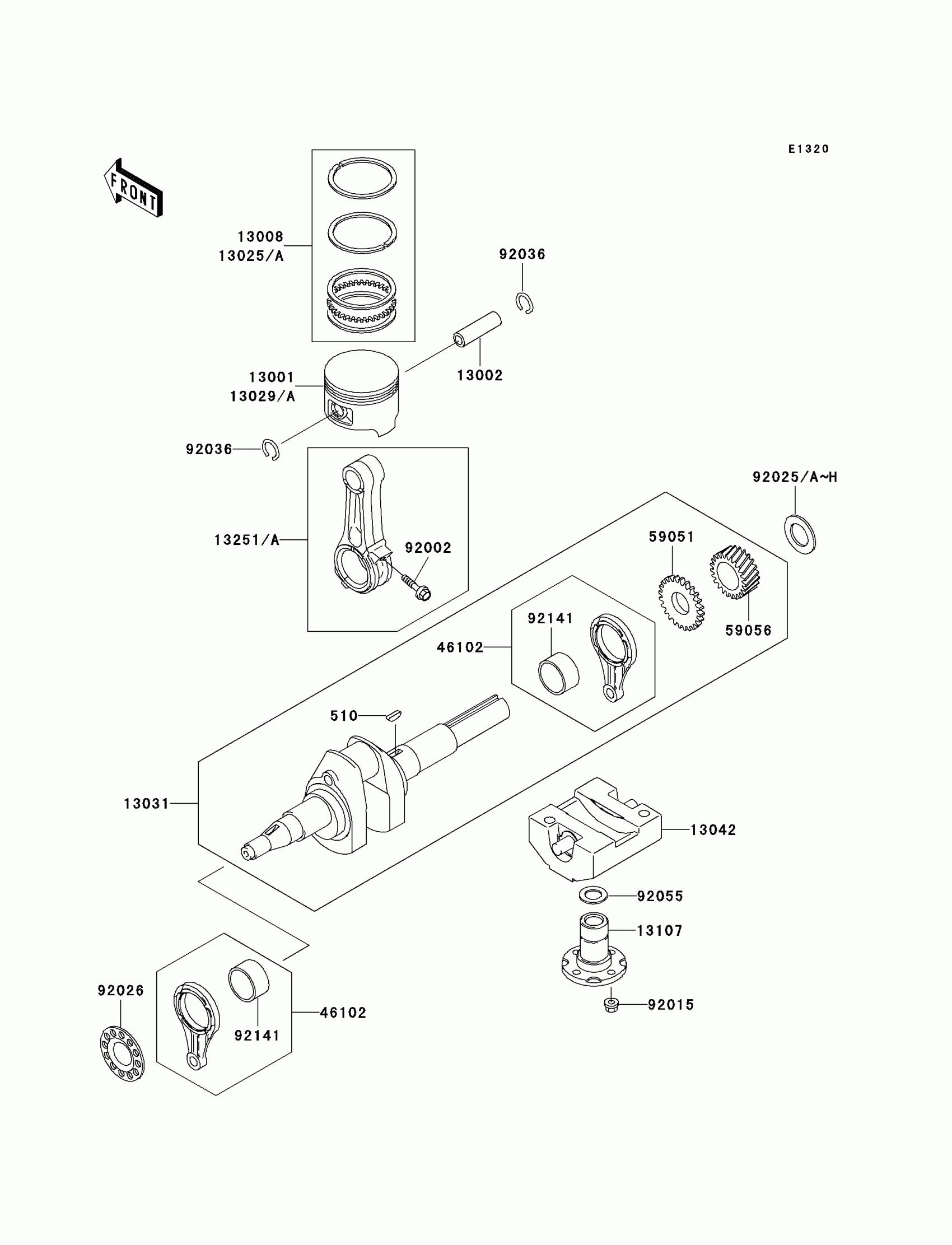

Kawasaki Mule 550 Crankshaft/Piston(s) Diagram
#
Description
Price
510
WOODRUFF KEY
510A5100
$2.70
13001
PISTON-ENGINE,STD
13001-2125
Unavailable
13002
PIN-PISTON
13002-2069
$9.47
13008
RING-SET-PISTON,STD
13008-6007
$32.75
13025
RING-SET-PISTON L,0.25
13025-2073
Unavailable
13025A
RING-SET-PISTON L,0.50
13025-2074
Unavailable
13029
PISTON-ENGINE L,0.25
13029-2100
Unavailable
13029A
PISTON-ENGINE L,0.50
13029-2101
Unavailable
13031
CRANKSHAFT-COMP
13031-2060
$329.59
13042
WEIGHT
13042-6009
$106.70
13107
SHAFT
13107-2088
$19.16
13251
ROD-ASSY-CONNECTING,U/S=0.50
13251-6034
Unavailable
13251A
ROD-ASSY-CONNECTING
13251-6056
Unavailable
46102
ROD
46102-6004
$38.31
59051
GEAR-SPUR
59051-2097
$27.92
59056
GEAR-HELICAL
59056-2993
$36.58
92002
BOLT
92002-2053
$3.69
92015
NUT,FLANGED,6MM
92015-1193
Unavailable
92025
SHIM,T=1.13
92025-2168
Unavailable
92025A
SHIM,T=1.18
92025-2169
Unavailable
92025B
SHIM,T=1.23
92025-2170
Unavailable
92025C
SHIM,T=1.28
92025-2171
Unavailable
92025D
SHIM,T=1.33
92025-2172
Unavailable
92025E
SHIM,T=1.38
92025-2173
Unavailable
92025F
SHIM,T=1.43
92025-2174
Unavailable
92025G
SHIM,T=1.48
92025-2175
Unavailable
92025H
SHIM,T=1.53
92025-2207
Unavailable
92026
SPACER
92026-2052
$13.08
92036
RING-SNAP,PISTON PIN
92036-008
$0.49
92055
RING-O
92055-2072
$1.25
92141
BEARING-PLANE
92141-2090
$6.98
