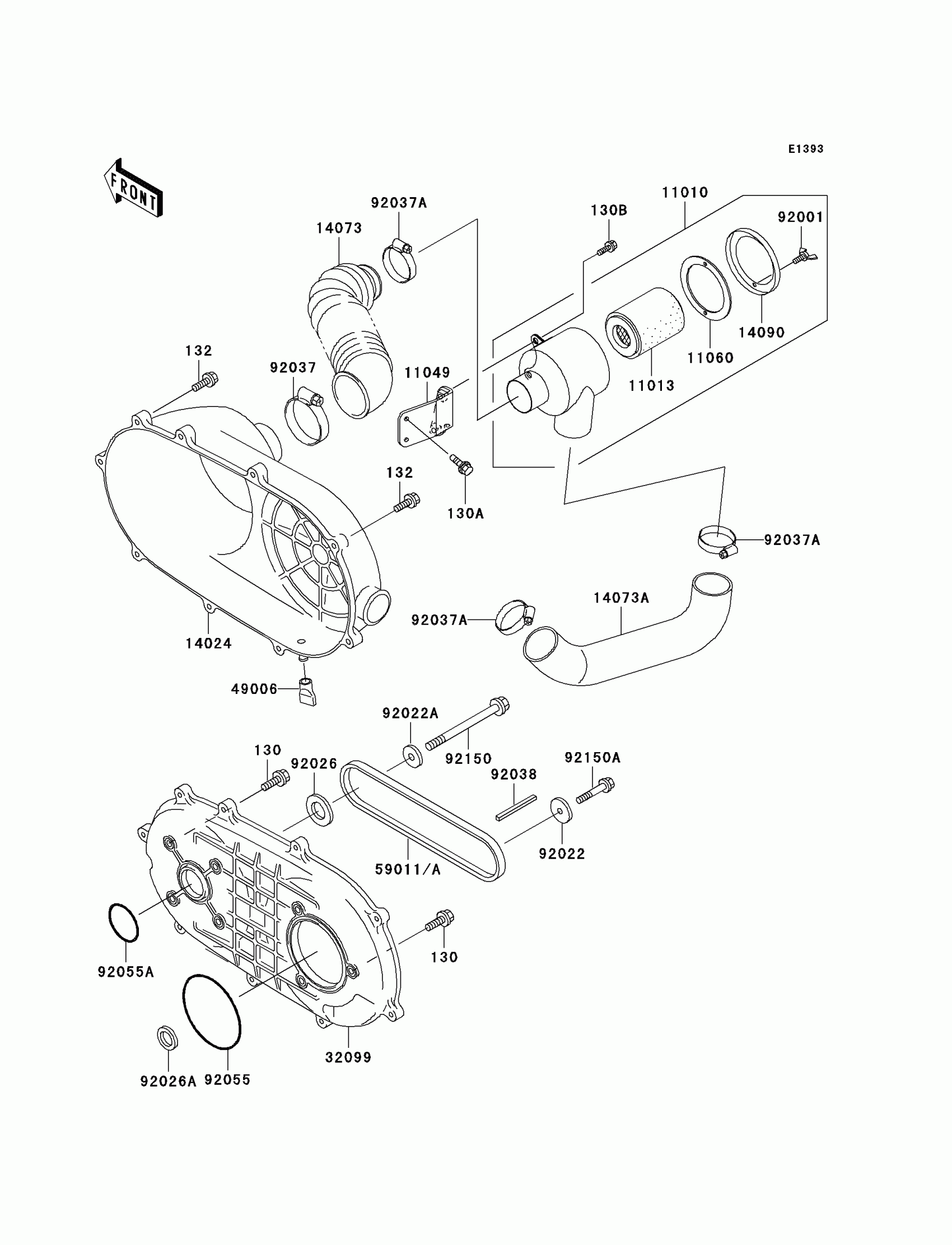

Kawasaki Mule 550 Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT-FLANGED

130D0820

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130B

BOLT-FLANGED,8X16

130J0816

$1.66

132

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

11010

FILTER-ASSY-AIR

11010-1735

Unavailable

11013

ELEMENT-AIR FILTER

11013-1263

$20.58

11049

BRACKET,AIR FILTER

11049-1939

$18.19

11060

GASKET,AIR FILTER CASE

11060-1975

$10.57

14024

COVER,BELT CONVERTER

14024-1981

$127.53

14073

DUCT,BELT CONVERTER

14073-1492

$53.67

14073A

DUCT,AIR FILTER

14073-1681

$52.50

14090

COVER,AIR FILTER

14090-1766

$12.66

32099

CASE,BELT CONVERTER

32099-1125

$188.20

49006

BOOT

49006-1199

$8.64

59011

BELT

59011-1055

$68.55

92001

BOLT,WING,6X15

92001-1703

$3.44

92022

WASHER,8.5X36X4

92022-1633

$9.53

92022A

WASHER,10X32X4.5

92022-1641

$11.37

92026

SPACER

92026-1395

$19.13

92026A

SPACER

92026-1396

$11.83

92037

CLAMP

92037-3738

$6.89

92037A

CLAMP

92037-506

$5.22

92038

KEY

92038-1053

$8.58

92055

RING-O

92055-1486

$5.65

92055A

RING-O,50X4

92055-1501

$4.45

92150

BOLT,10X102

92150-1441

$18.33

92150A

BOLT,8X40

92150-1687

$5.23
