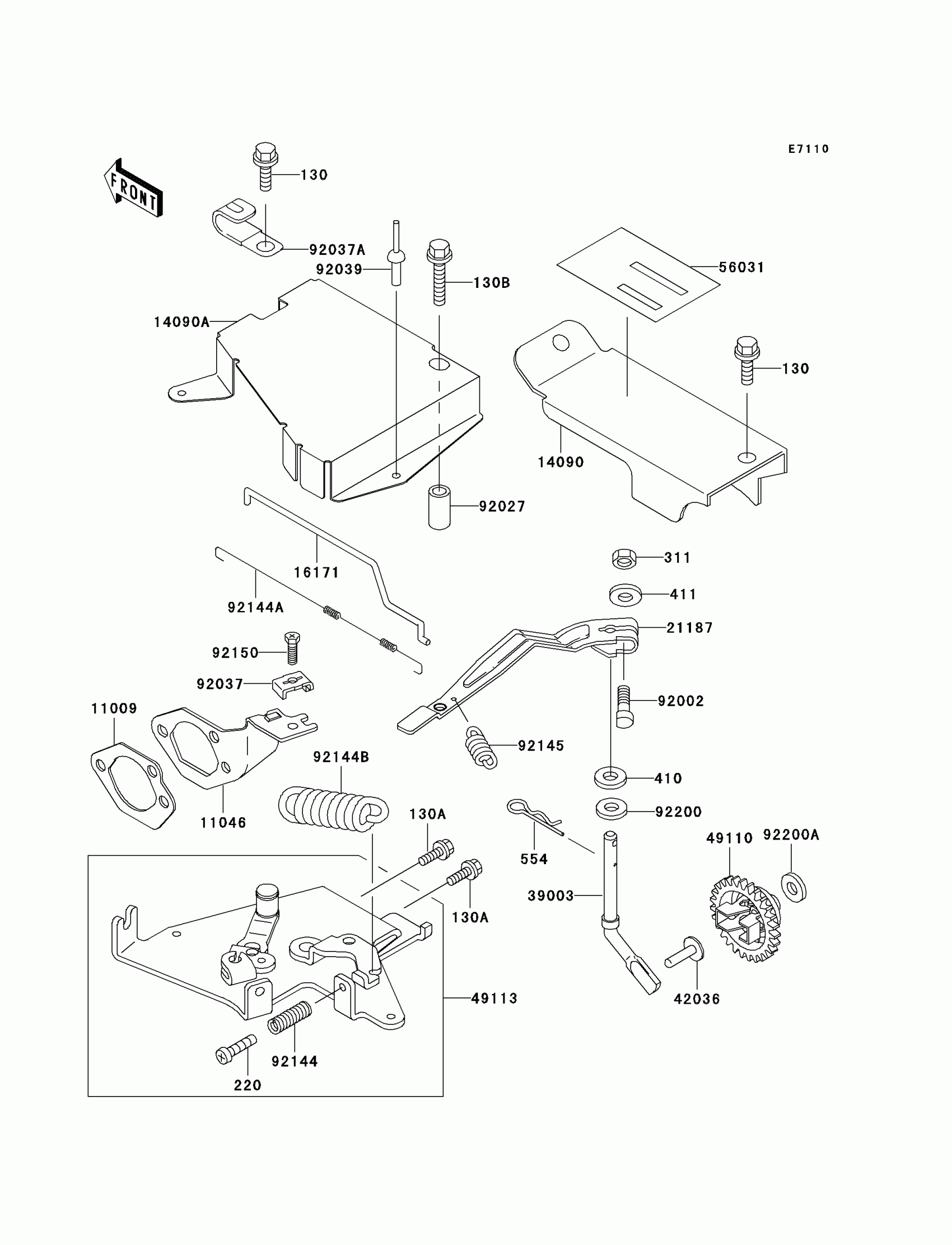

Kawasaki Mule 550 Control Diagram
#
Description
Price
130
BOLT-FLANGED,8X12
130B0812
$0.77
130A
BOLT-FLANGED,6X12
130G0612
$1.69
130B
BOLT-FLANGED,8X30
130J0830
$4.15
220
SCREW PAN HEAD 5X22
220B0522
$0.74
311
NUT 6MM
311B0600
$0.93
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
411
WASHER PLAIN 6MM
411B0600
$2.84
554
PIN,SNAP
554A0600
$0.93
11009
GASKET
11009-2925
$1.79
11046
BRACKET
11046-2102
$4.84
14090
COVER
14090-1141
$28.26
14090A
COVER
14090-1361
$25.39
16171
LINK,THROTTLE
16171-2061
$3.64
21187
ARM-ASSY
21187-2066
$11.89
39003
ARM-PIVOT
39003-2076
$7.28
42036
SLEEVE
42036-2060
$3.36
49110
GOVERNOR-ASSY
49110-2069
$11.51
49113
PANEL-COMP-CONTROL
49113-2127
$37.79
56031
LABEL-MANUAL,OIL CAPACITY
56031-1790
$6.22
92002
BOLT,6X28
92002-2269
$1.14
92027
COLLAR
92027-1064
$13.60
92037
CLAMP
92037-2020
$1.30
92037A
CLAMP
92037-2098
$1.90
92039
RIVET,BLIND,4.0X9.2
92039-1163
$3.07
92144
SPRING
92144-2266
$4.81
92144A
SPRING
92144-2340
$4.91
92144B
SPRING
92144-2345
$7.13
92145
SPRING
92145-2054
$2.48
92150
BOLT
92150-2182
$0.43
92200
WASHER,6.5X11.5X2.0
92200-2029
$0.68
92200A
WASHER,6.2X20X0.5
92200-2036
$1.17
