Description

Price

11009

GASKET,FLOAT CHAMBER

11009-2024

$4.15

11009A

GASKET

11009-2025

$1.99

11009B

GASKET,CARBURETOR

11009-2827

$3.58

11009C

GASKET,INSULATOR

11009-2939

$1.66

13183

PLATE

13183-2252

$3.50

15003

CARBURETOR-ASSY

15003-2589

Unavailable

16014

SCREW-PILOT AIR

16014-2076

$14.56

16020

CHAMBER-FLOAT

16020-2005

$42.45

16025

VALVE-THROTTLE,#165

16025-2165

$8.13

16030

VALVE-FLOAT

16030-2073

$23.20

16031

FLOAT

16031-2066

$27.00

16035

JET-AIR,#1.8

16035-2056

$7.96

16035A

JET-AIR,#1.3

16035-2062

$8.50

16038

"O" RING

16038-024

$1.56

16041

SHAFT-CARBURETOR,THROTTLE

16041-2203

$25.96

16041A

SHAFT-CARBURETOR,CHOKE

16041-2209

$21.44

16073

INSULATOR

16073-2154

$5.07

16126

VALVE,CHOKE

16126-2207

$7.22

39076

LIMITER

39076-2053

$6.29

49121

NOZZLE-MAIN

49121-2214

$20.55

49123

HOLDER-MAIN JET

49123-2079

$19.49

92002

BOLT

92002-2008

$1.72

92004

STUD,6X80

92004-2125

$3.53

92009

SCREW,DRAIN

92009-2015

$4.94

92009A

SCREW,THROTTLE VALVE

92009-2080

$1.96

92009B

SCREW,CHOKE VALVE

92009-2081

$1.72

92009C

SCREW

92009-2244

$1.75

92033

RING-SNAP

92033-2067

$3.64

92037

CLAMP

92037-2081

$2.44

92043

PIN,FLOAT

92043-2006

$3.06

92063

JET-MAIN,#102.5

92063-2316

$15.08

92063A

JET-MAIN,#100

92063-2317

$15.08

92063B

JET-MAIN,#97.5

92063-2318

$15.08

92063C

JET-MAIN,#105

92063-2330

$15.08

92063D

JET-MAIN,#107.5

92063-2331

$10.56

92064

JET-PILOT,#40

92064-2118

$12.97

214

SCREW-PAN+-

214B0414

$0.70

92081

SPRING

92081-2009

$2.78

92093

SEAL

92093-2081

$2.33

92093A

SEAL

92093-2082

$1.90

92093B

SEAL

92093-2083

$1.72

92143

COLLAR

92143-2132

$3.47

92143A

COLLAR

92143-2133

$3.58

92143B

COLLAR

92143-2134

$5.03

92144

SPRING

92144-2269

$7.75

92150

BOLT

92150-2146

$4.11

92190

TUBE,6X10X175

92190-2051

$3.65

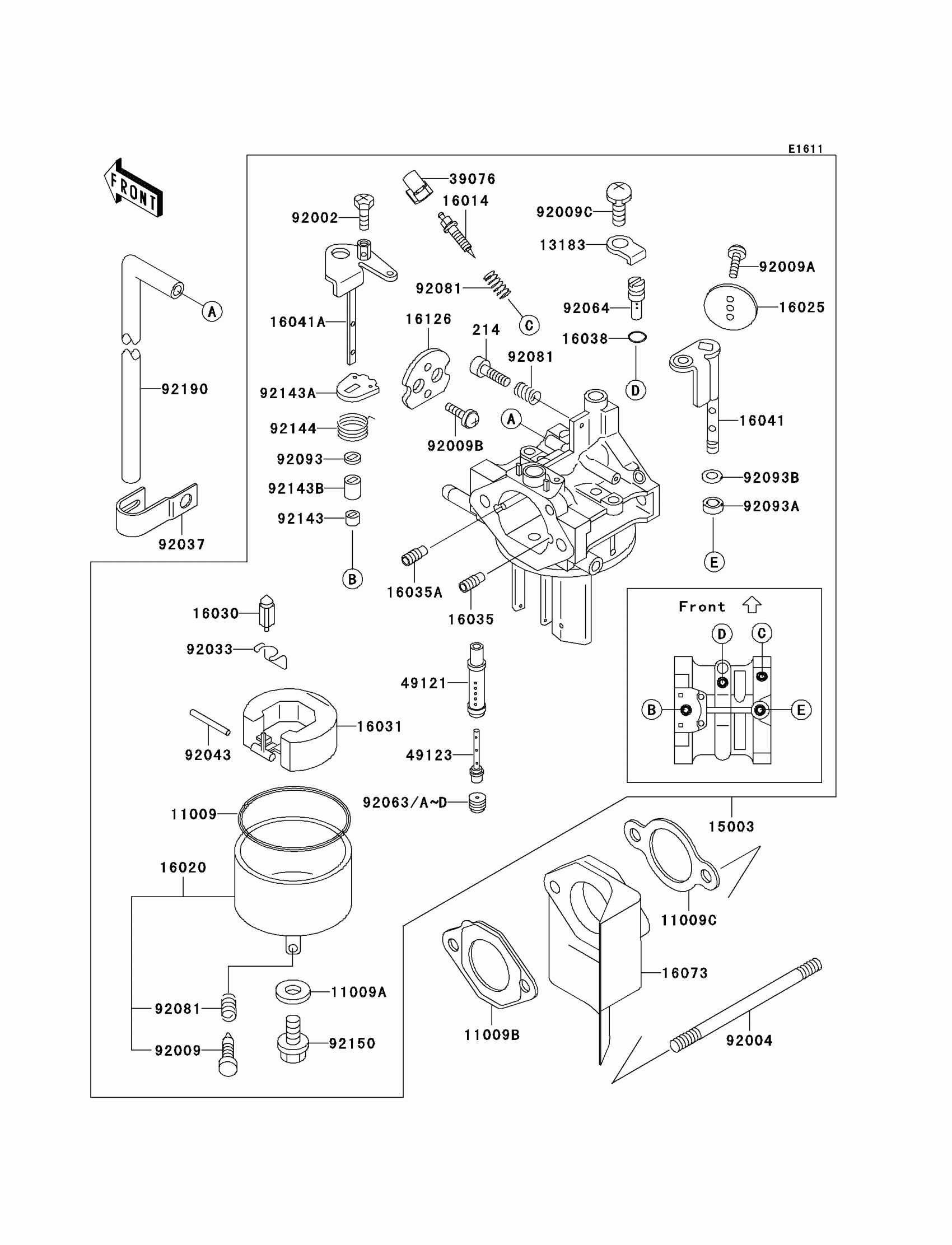

Kawasaki Mule 550 Carburetor Diagram

GASKET,FLOAT CHAMBER

GASKET

GASKET,CARBURETOR

GASKET,INSULATOR

PLATE

CARBURETOR-ASSY

SCREW-PILOT AIR

CHAMBER-FLOAT

VALVE-THROTTLE,#165

VALVE-FLOAT

FLOAT

JET-AIR,#1.8

JET-AIR,#1.3

"O" RING

SHAFT-CARBURETOR,THROTTLE

SHAFT-CARBURETOR,CHOKE

INSULATOR

VALVE,CHOKE

LIMITER

NOZZLE-MAIN

HOLDER-MAIN JET

BOLT

STUD,6X80

SCREW,DRAIN

SCREW,THROTTLE VALVE

SCREW,CHOKE VALVE

SCREW

RING-SNAP

CLAMP

PIN,FLOAT

JET-MAIN,#102.5

JET-MAIN,#100

JET-MAIN,#97.5

JET-MAIN,#105

JET-MAIN,#107.5

JET-PILOT,#40

SCREW-PAN+-

SPRING

SEAL

SEAL

SEAL

COLLAR

COLLAR

COLLAR

SPRING

BOLT

TUBE,6X10X175
