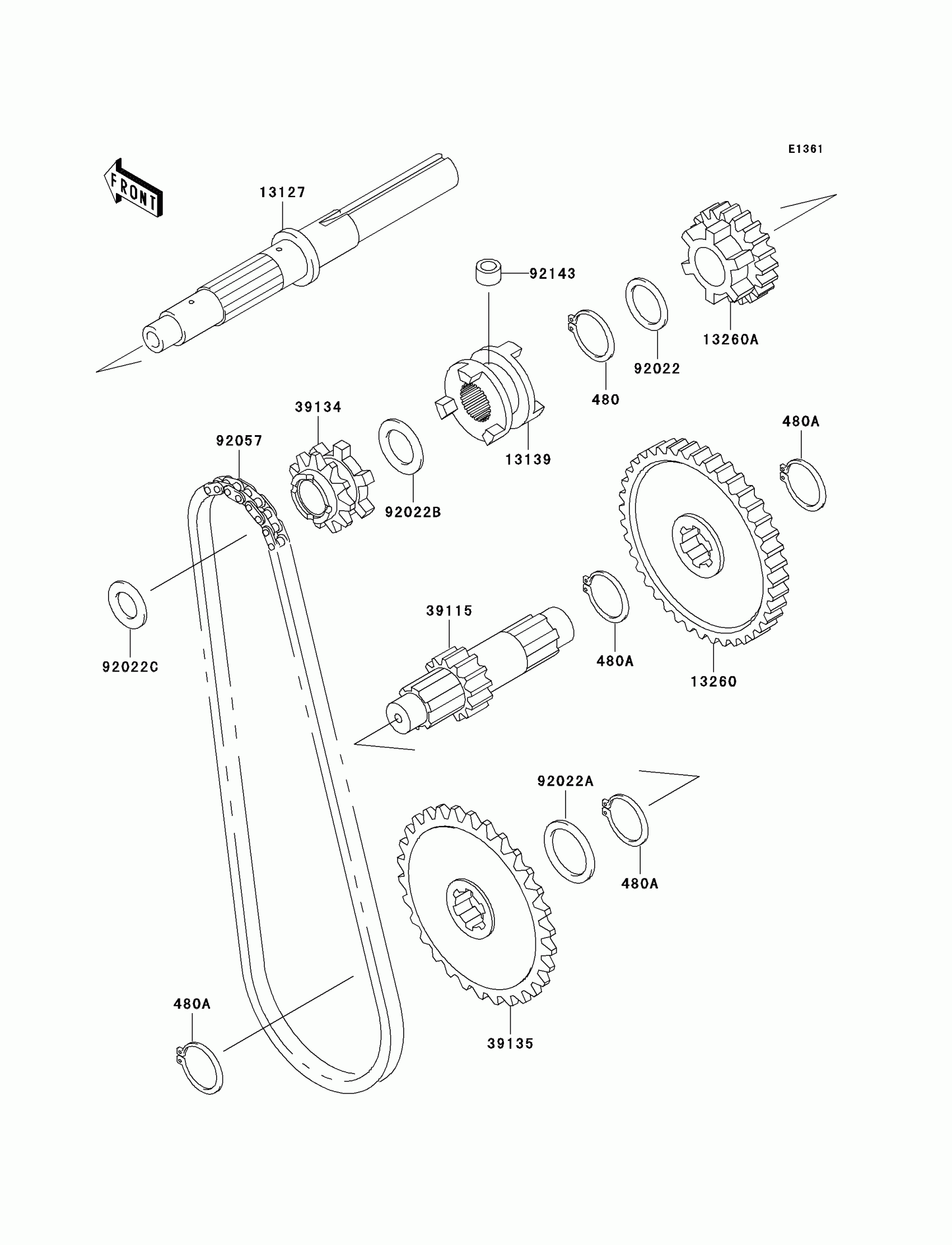

Kawasaki Mule 520 Transmission Diagram

Description

Price

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

480A

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

13127

SHAFT-TRANSMISSION INPUT

13127-1203

$222.64

13139

SHIFTER

13139-1070

$135.88

13260

GEAR,OUTPUT FORWARD,55T

13260-1152

$159.80

13260A

GEAR,INPUT FORWARD,24T

13260-1336

$142.90

39115

SHAFT,OUTPUT REDUCTION,13T

39115-1070

$184.71

39134

SPROCKET-DRIVE,19T

39134-1054

$129.64

39135

GEAR,51T

39135-1053

$135.19

92022

WASHER,25.3X33X1

92022-1109

$5.96

92022A

WASHER,28.3X34X0.3

92022-1626

$26.05

92022B

WASHER,22.3X35X2.0

92022-1723

$11.37

92022C

WASHER,17.3X30X1.4

92022-270

$9.84

92057

CHAIN,REVERSE

92057-1349

$39.21

92143

COLLAR,8X14X10.5

92143-1497

$4.18
