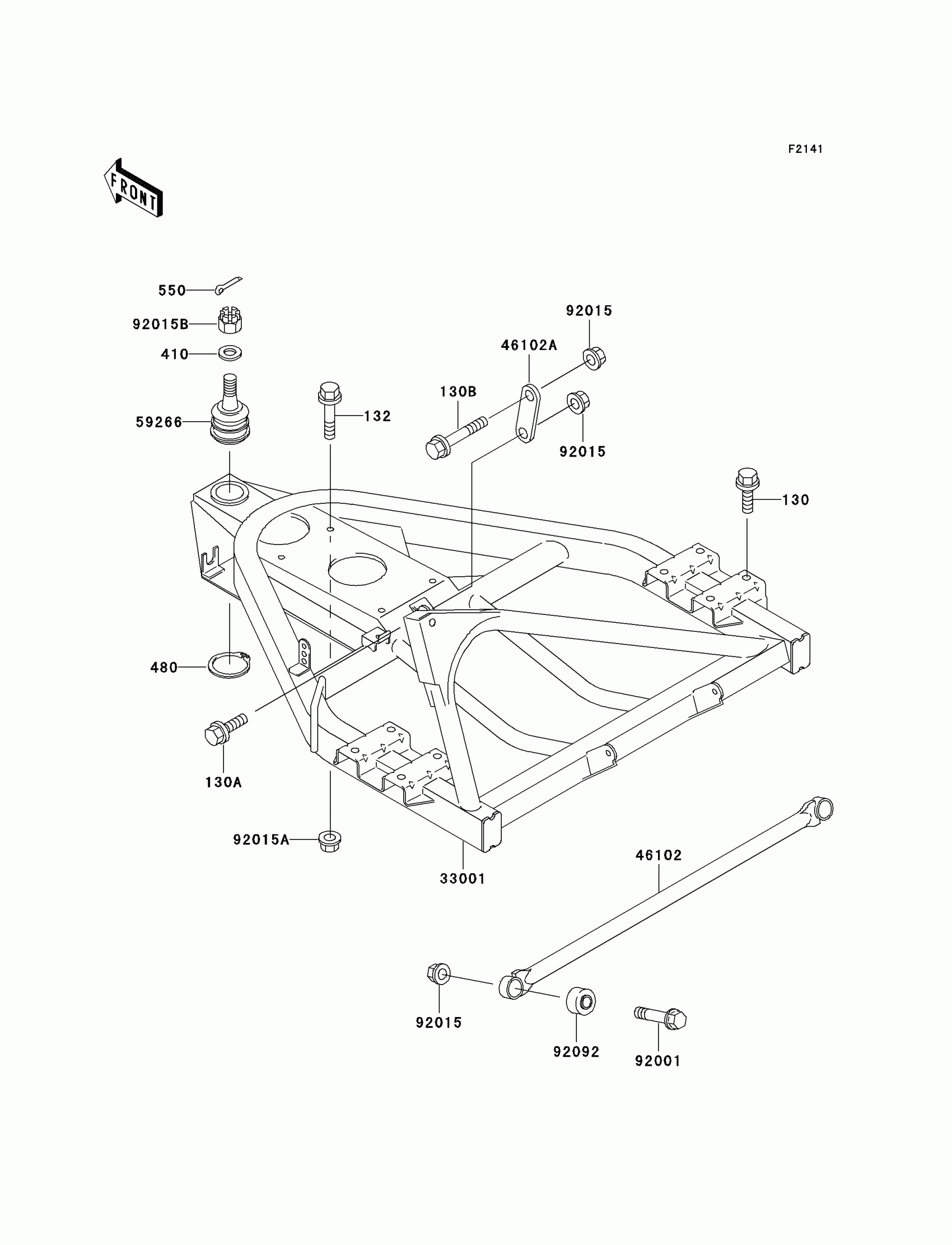

Kawasaki Mule 520 Swingarm Diagram

Description

Price

130

BOLT-FLANGED,10X16

130J1016

$3.27

130A

BOLT-FLANGED,10X20

130J1020

$5.55

130B

BOLT-FLANGED,10X55

130J1055

$6.21

132

BOLT-FLANGED-SMALL

132G0835

$4.44

410

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

480

CIRCLIP, 38MM

480J3800

$5.44

550

PIN,COTTER

550D3230

$2.33

33001

ARM-COMP-SWING

33001-1373

$551.16

46102

ROD

46102-1297

$83.12

46102A

ROD

46102-1298

$9.11

59266

JOINT-BALL

59266-1087

$64.85

92001

BOLT,FLANGED,10X44

92001-1702

$9.92

92015

NUT,FLANGED,10MM

92015-1335

$2.61

92015A

NUT,8MM

92015-1432

$6.57

92015B

NUT,CASTLE,14MM

92015-1841

$8.38

92092

BUSHING-RUBBER

92092-1072

$12.25
