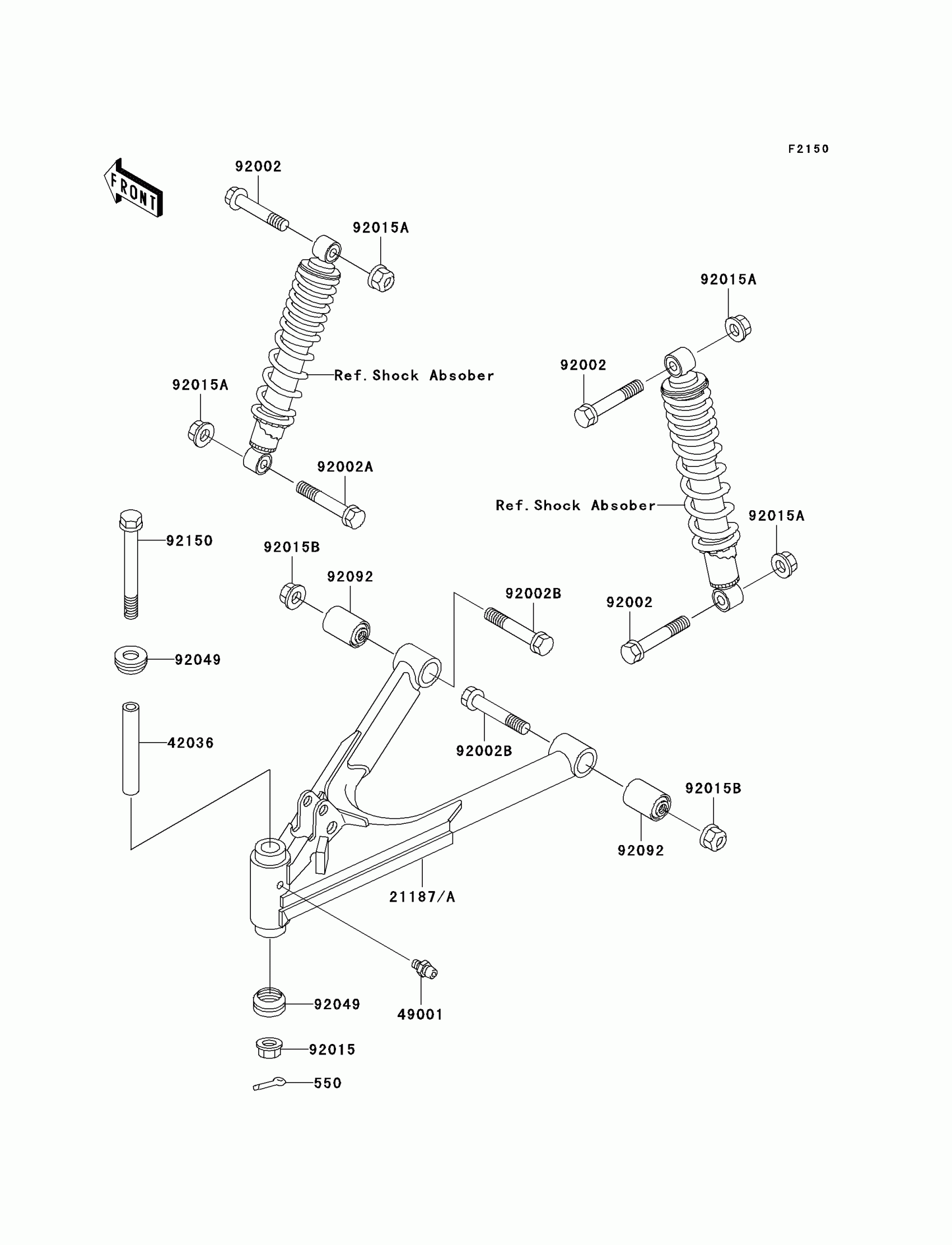

Kawasaki Mule 520 Suspension Diagram

Description

Price

550

PIN-COTTER,2.0X22

550D2022

$2.51

21187

ARM-ASSY,SUSPENSION,FR,RH

21187-1083

$188.04

21187A

ARM-ASSY,SUSPENSION,FR,LH

21187-1084

$188.04

42036

SLEEVE,12X18X120.6

42036-1333

$25.96

49001

NIPPLE-GREASE

49001-1051

$3.02

92002

BOLT,FLANGED,10X53.5

92002-1529

$8.38

92002A

BOLT,FLANGED,10X42

92002-1545

$11.51

92002B

BOLT,ROD,12MM

92002-1757

$12.71

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92015A

NUT,LOCK,10MM

92015-1597

$5.52

92015B

NUT

92015-1706

$7.45

92049

SEAL-OIL

92049-1371

$10.35

92092

BUSHING-RUBBER

92092-005

$14.10

92150

BOLT,FLANGED,12X170

92150-1437

$33.37
