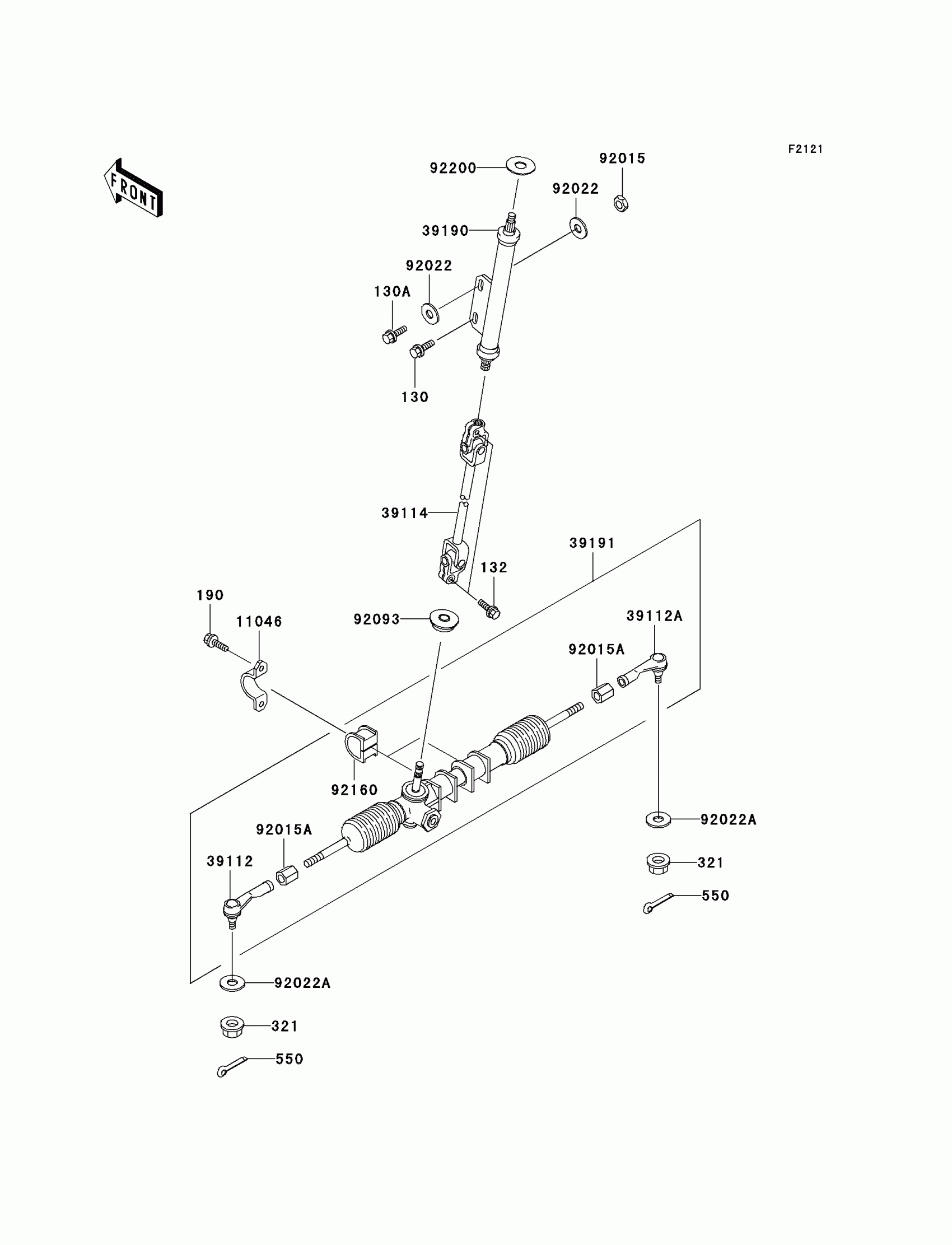

Kawasaki Mule 520 Steering Shaft Diagram

Description

Price

130

BOLT-FLANGED,10X25

130J1025

$4.89

130A

BOLT-FLANGED,10X30

130J1030

$6.10

132

BOLT-FLANGED-SMALL,8X25

132J0825

$3.84

190

BOLT-UPSET-WS

190H1025

$4.93

321

NUT-CASTLE

321H1000

$6.12

550

PIN-COTTER,2.0X22

550D2022

$2.51

11046

BRACKET,STEERING GEAR

11046-1858

Unavailable

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$96.05

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$96.05

39114

SHAFT-COMP-STRG

39114-1070

$319.63

39190

SHAFT-ASSY-STEERING

39190-1003

$231.78

39191

GEAR-ASSY-STEERING

39191-1008

$1,066.48

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT

92015-1864

$14.39

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$3.21

92022A

WASHER,10.5X18X2.5

92022-1876

$5.00

92093

SEAL

92093-1313

$7.26

92160

DAMPER,STEERING GEAR

92160-1084

$31.96

92200

WASHER,15X45X0.6

92200-1130

$4.43
