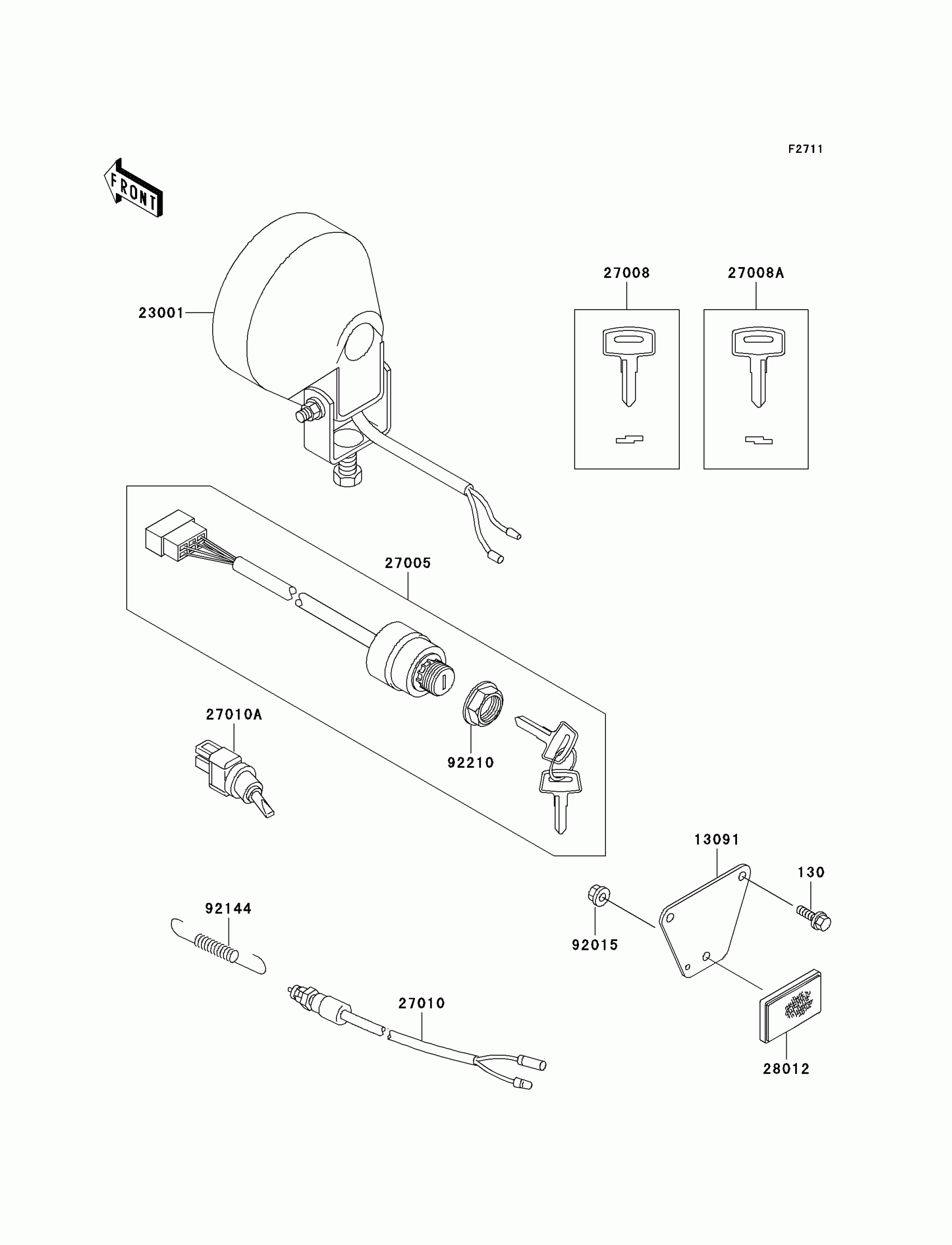

Kawasaki Mule 520 Headlight(s)/Ignition Switch Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

13091

HOLDER,REFLECTOR

13091-1745

$16.73

23001

LAMP-ASSY-HEAD

23001-1120

$88.85

27005

SWITCH-ASSY-IGNITION

27005-1146

$102.73

27008

KEY-LOCK,BLANK

27008-1153

$17.98

27008A

KEY-LOCK,BLANK

27008-1157

$17.98

27010

SWITCH,BRAKE LAMP

27010-1181

$30.62

27010A

SWITCH,HEAD LAMP

27010-1265

$70.10

28012

REFLECTOR-REFLEX

28012-1088

$22.46

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92144

SPRING,REAR BRAKE SWITCH

92144-1143

$8.96

92210

NUT,IGNITION SWITCH

92210-1264

$6.00
