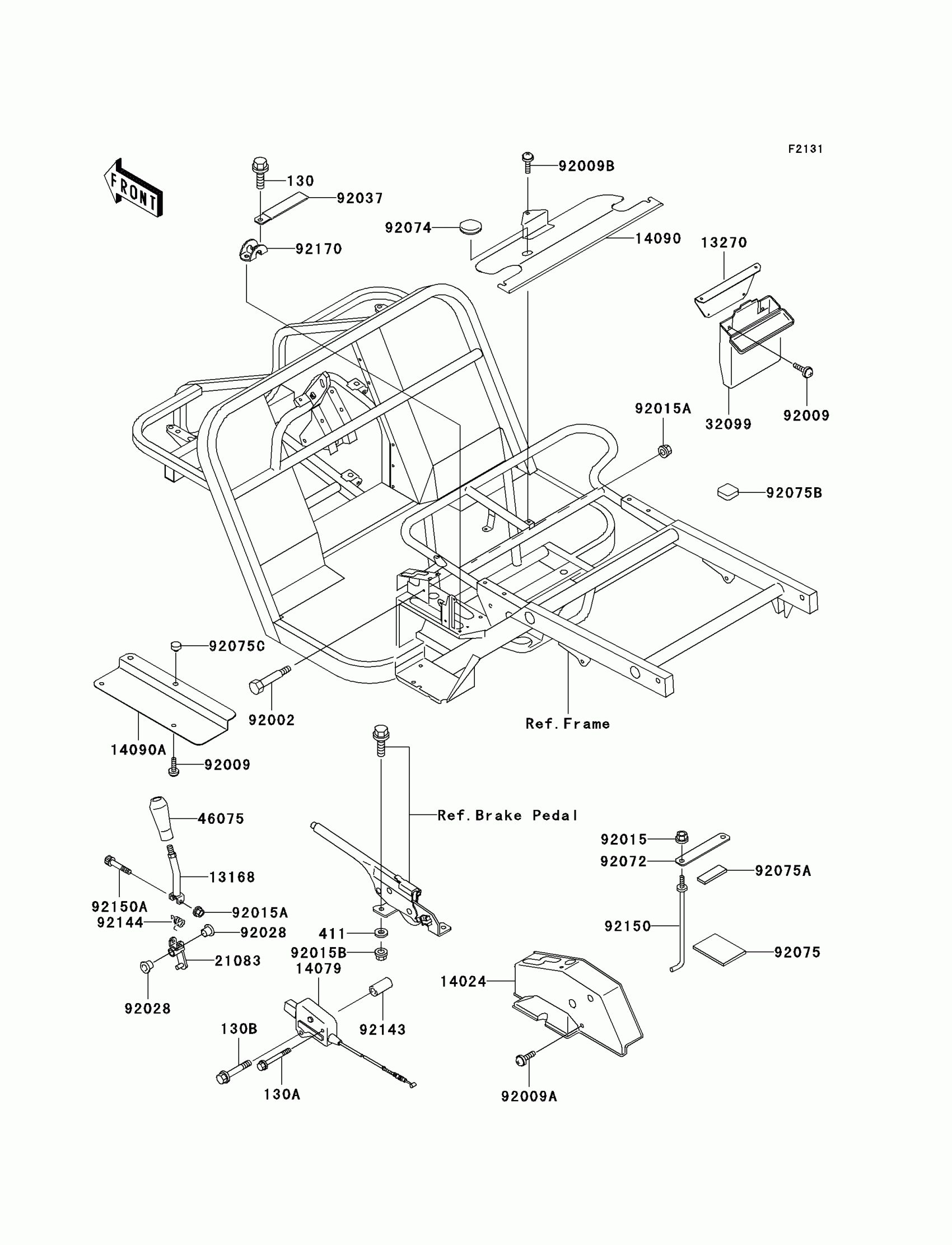

Kawasaki Mule 520 Frame Fittings Diagram
#
Description
Price
130
BOLT-FLANGED,6X14,BLACK
130J0614
$2.33
130A
BOLT-FLANGED,6X50,BLACK
130J0650
Unavailable
130B
BOLT-FLANGED,8X50
130J0850
$4.37
411
WASHER PLAIN 8MM
411B0800
$0.93
13168
LEVER,SHIFT
13168-1534
$47.02
13270
PLATE,MANUAL BOX
13270-1698
$15.49
14024
COVER,SHIFT&BATTERY
14024-1985
$124.68
14079
HOLDER-ASSY,DIFF LOCK
14079-1112
$159.56
14090
COVER,SEAT
14090-1120
$323.43
14090A
COVER,FRONT UNDER
14090-1744
$28.87
21083
ARM,SHIFT LEVER
21083-1091
$41.59
32099
CASE,TOOL
32099-1039
$45.33
46075
GRIP,SHIFT LEVER
46075-1075
$39.59
92002
BOLT
92002-1984
$9.40
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X14
92009-1288
$3.92
92009B
SCREW,6X10
92009-1402
$2.41
92015
NUT,FLANGED,8MM
92015-1406
$4.45
92015A
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92015B
NUT,FLANGED,LOCK,8MM
92015-1696
$4.67
92028
BUSHING
92028-1507
$5.25
92037
CLAMP,WIRING HARNESS,L=60
92037-1069
Unavailable
92072
BAND,BATTERY
92072-1233
Unavailable
92074
PLUG CHAIN CASE
92074-004
$5.18
92075
DAMPER
92075-1076
$8.86
92075A
DAMPER
92075-1214
$4.39
92075B
DAMPER
92075-1882
$8.10
92075C
DAMPER,9X24X14
92075-281
$6.22
92143
COLLAR,11.3X15.9X36
92143-1162
$5.72
92144
SPRING
92144-1175
$6.87
92150
BOLT,BATTERY
92150-1293
$10.65
92150A
BOLT,SOCKET,6X35
92150-1393
$7.91
92170
CLAMP,SHIFT CABLE
92170-1210
$3.79
