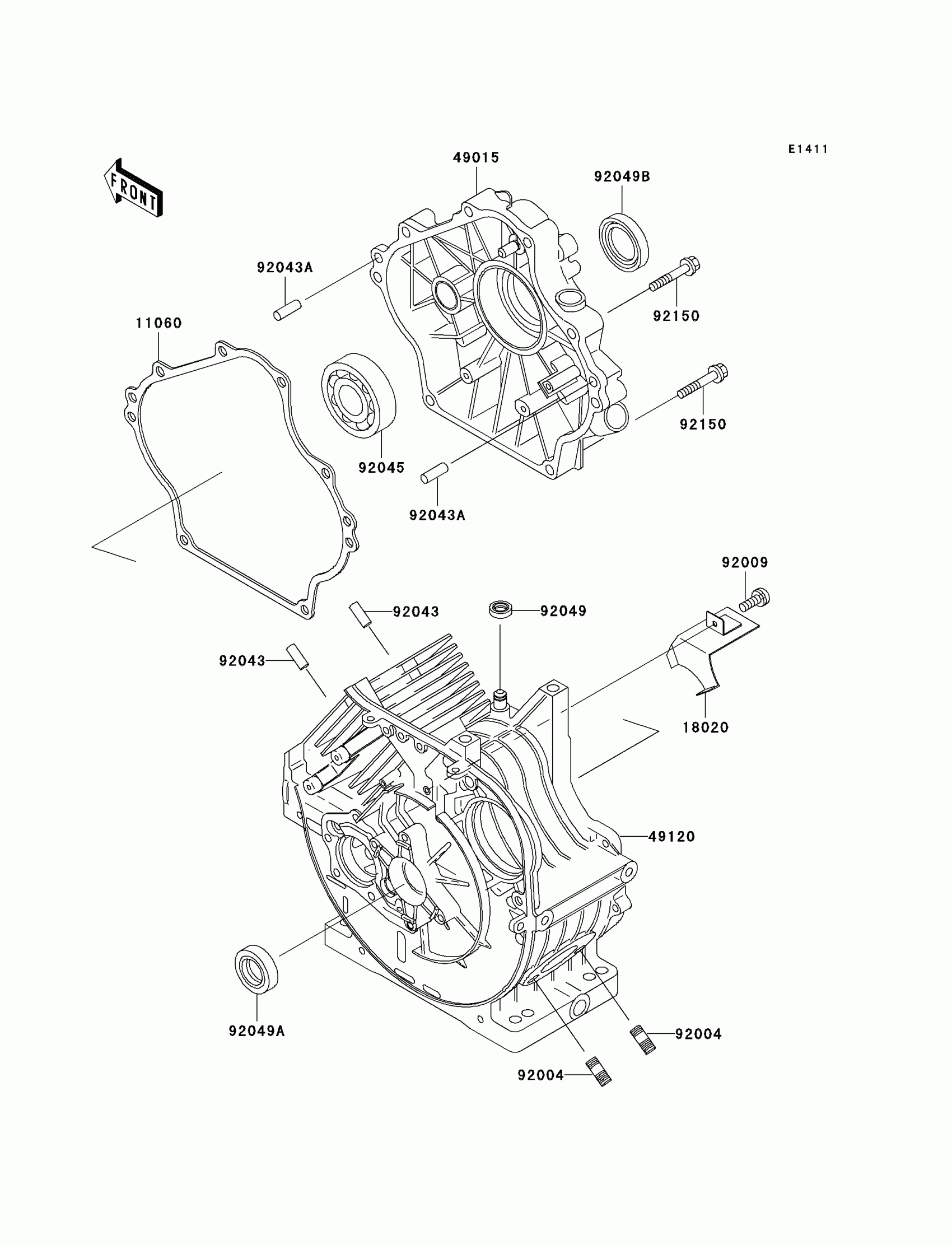

Kawasaki Mule 520 Crankcase Diagram

Description

Price

11060

GASKET,CRANKCASE COVER

11060-2122

$9.84

18020

BAFFLE

18020-2072

$6.27

49015

COVER-CRANKCASE

49015-6192

$314.07

49120

CRANKCASE-COMP

49120-6062

$404.64

92004

STUD,6X14

92004-2083

$1.66

92009

SCREW

92009-2308

$0.43

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92043A

PIN,6.2X8X14

92043-1263

$0.43

92045

BEARING-BALL,6306JRCM

92045-2168

$23.27

92049

SEAL-OIL,VC-6X10X2.5

92049-2097

$2.13

92049A

SEAL-OIL

92049-2199

$5.83

92049B

SEAL-OIL

92049-2220

$8.26

92150

BOLT,8X45

92150-2252

$2.00
