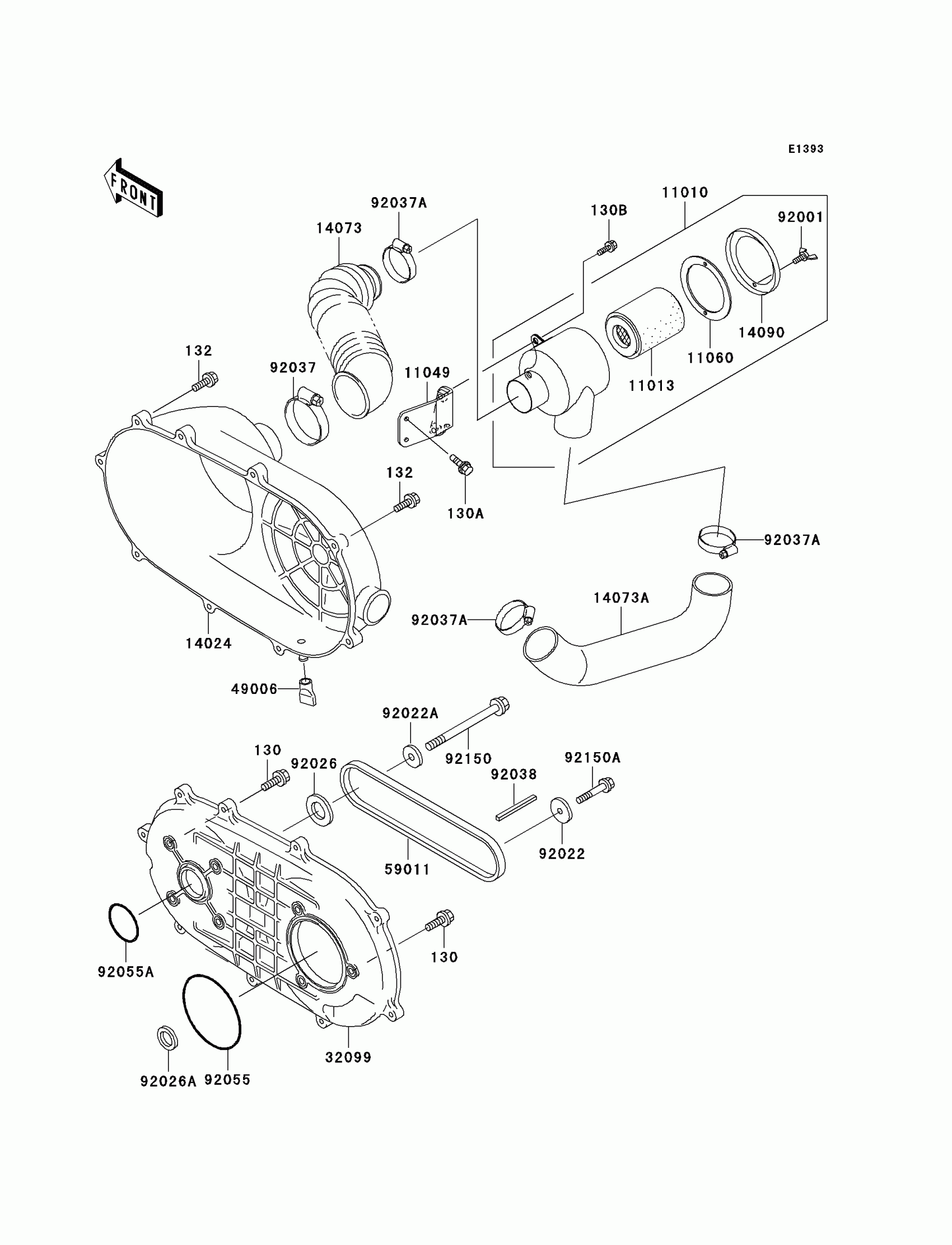

Kawasaki Mule 520 Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT-FLANGED

130D0820

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130B

BOLT-FLANGED,8X16

130J0816

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

11010

FILTER-ASSY-AIR

11010-1735

Unavailable

11013

ELEMENT-AIR FILTER

11013-1263

$16.70

11049

BRACKET,AIR FILTER

11049-1939

$16.97

11060

GASKET,AIR FILTER CASE

11060-1975

$8.04

14024

COVER,BELT CONVERTER

14024-1981

Unavailable

14073

DUCT,BELT CONVERTER

14073-1492

$54.71

14073A

DUCT,AIR FILTER

14073-1681

$50.80

14090

COVER,AIR FILTER

14090-1766

$12.03

32099

CASE,BELT CONVERTER

32099-1125

$192.19

49006

BOOT

49006-1199

$6.58

59011

BELT

59011-1071

$65.53

92001

BOLT,WING,6X15

92001-1703

$2.36

92022

WASHER,8.5X36X4

92022-1633

$7.26

92022A

WASHER,10X32X4.5

92022-1641

$10.92

92026

SPACER

92026-1395

$17.90

92026A

SPACER

92026-1396

$11.34

92037

CLAMP

92037-3738

$5.47

92037A

CLAMP

92037-506

$4.58

92038

KEY

92038-1053

$8.37

92055

RING-O

92055-1486

$4.95

92055A

RING-O,50X4

92055-1501

$4.14

92150

BOLT,10X102

92150-1441

$17.15

92150A

BOLT,8X40

92150-1687

$3.98
