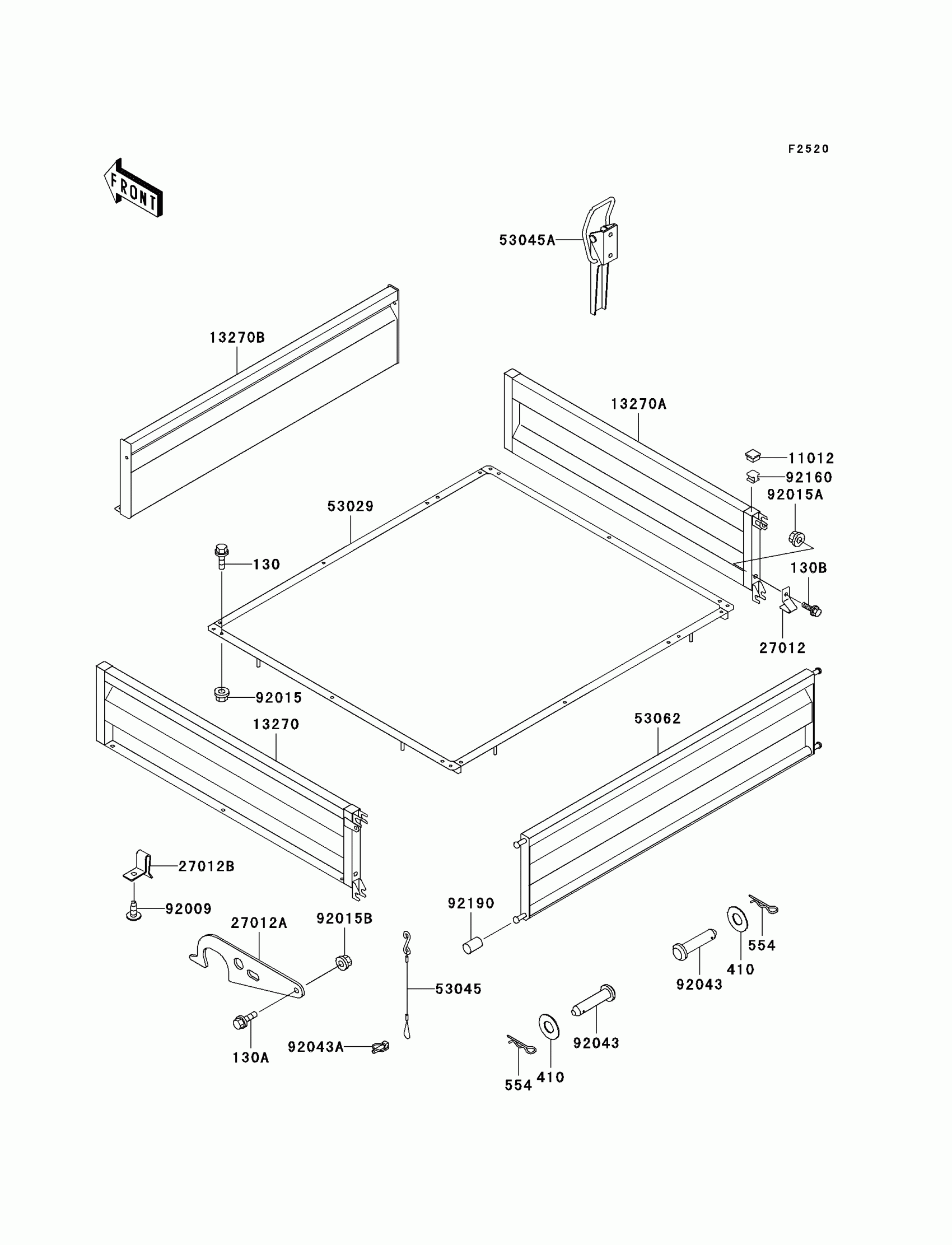

Kawasaki Mule 520 Carrier(s) Diagram
#
Description
Price
130
BOLT-FLANGED,6X16,BLACK
130J0616
$1.92
130A
BOLT-FLANGED,6X40
130J0640
$5.01
130B
BOLT-FLANGED,8X50
130J0850
$4.37
410
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
554
PIN-SNAP,12MM
554A1200
$3.57
11012
CAP
11012-1784
$6.32
13270
PLATE,CARRIER,SIDE,LH,F.RED
13270-1090-B1
$177.88
13270A
PLATE,CARRIER,SIDE,RH,F.RED
13270-1092-B1
$201.68
13270B
PLATE,CARRIER,FR,F.RED
13270-1677-B1
$161.32
27012
HOOK,TAIL GATE
27012-1406
$6.43
27012A
HOOK,CARRIER
27012-1444
$16.52
27012B
HOOK,CARRIER
27012-1445
$12.92
53029
CARRIER,F.RED
53029-1192-B1
Unavailable
53045
HOOK-ASSY,TALE GATE
53045-1060
$35.84
53045A
HOOK-ASSY
53045-1063
$23.47
53062
GATE-TAIL,F.RED
53062-1005-B1
$282.57
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92015
NUT,FLANGED,6MM,BLACK
92015-1386
Unavailable
92015A
NUT,FLANGED,8MM
92015-1408
$5.38
92015B
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92043
PIN,12X54
92043-1451
$9.73
92043A
PIN
92043-1490
$9.38
92160
DAMPER
92160-1191
$6.32
92190
TUBE,8X10X15
92190-1467
$3.89
