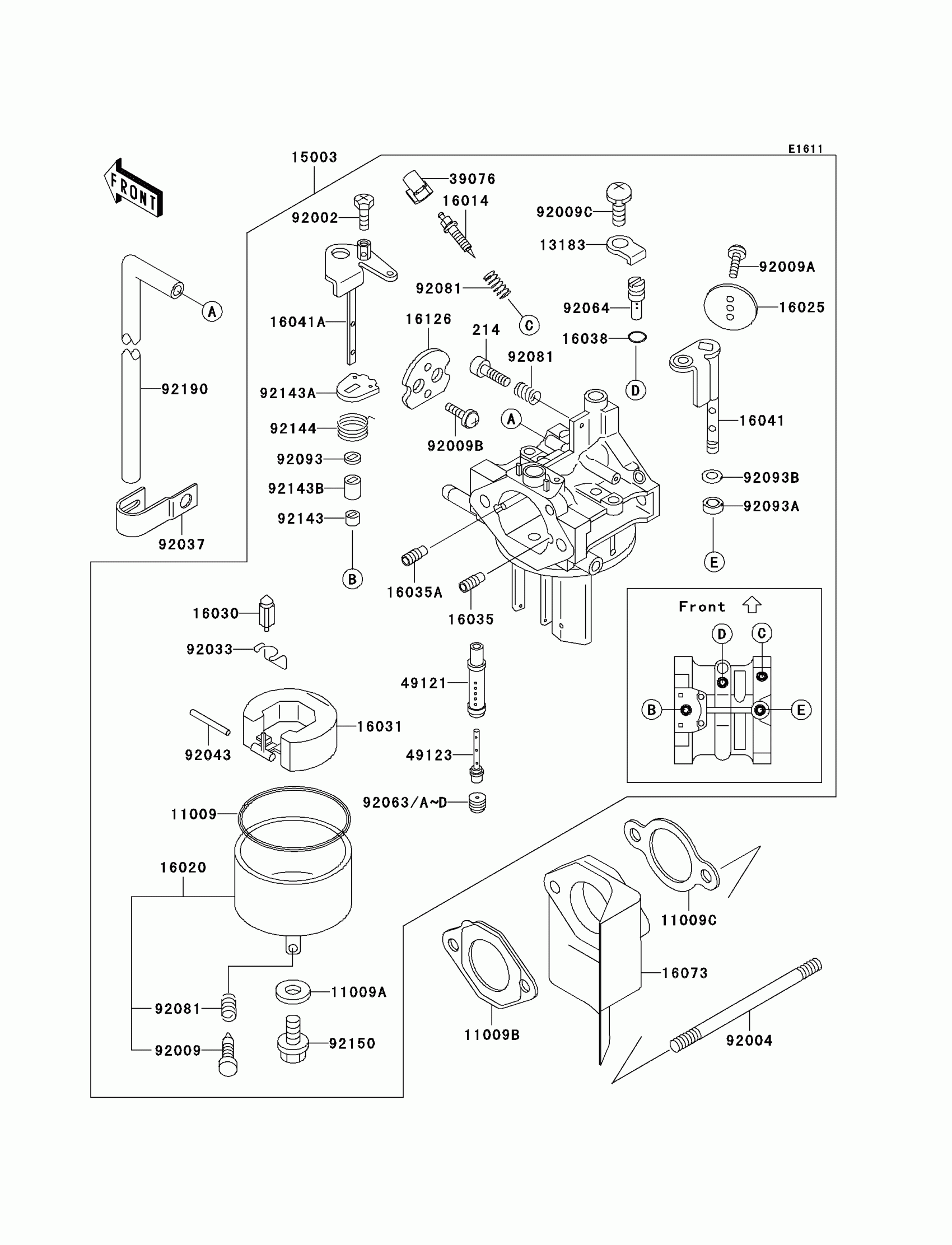

Kawasaki Mule 520 Carburetor Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-2024
$4.15
11009A
GASKET
11009-2025
$1.99
11009B
GASKET,CARBURETOR
11009-2827
$3.58
11009C
GASKET,INSULATOR
11009-2939
$1.66
13183
PLATE
13183-2252
$3.50
15003
CARBURETOR-ASSY
15003-2589
Unavailable
16014
SCREW-PILOT AIR
16014-2076
$14.56
16020
CHAMBER-FLOAT
16020-2005
$42.45
16025
VALVE-THROTTLE,#165
16025-2165
$8.13
16030
VALVE-FLOAT
16030-2073
$23.20
16031
FLOAT
16031-2066
$27.00
16035
JET-AIR,#1.8
16035-2056
$7.96
16035A
JET-AIR,#1.3
16035-2062
$8.50
16038
"O" RING
16038-024
$1.56
16041
SHAFT-CARBURETOR,THROTTLE
16041-2203
$25.96
16041A
SHAFT-CARBURETOR,CHOKE
16041-2209
$21.44
16073
INSULATOR
16073-2154
$5.07
16126
VALVE,CHOKE
16126-2207
$7.22
39076
LIMITER
39076-2053
$6.29
49121
NOZZLE-MAIN
49121-2214
$20.55
49123
HOLDER-MAIN JET
49123-2079
$19.49
92002
BOLT
92002-2008
$1.72
92004
STUD,6X80
92004-2125
$3.53
92009
SCREW,DRAIN
92009-2015
$4.94
92009A
SCREW,THROTTLE VALVE
92009-2080
$1.96
92009B
SCREW,CHOKE VALVE
92009-2081
$1.72
92009C
SCREW
92009-2244
$1.75
92033
RING-SNAP
92033-2067
$3.64
92037
CLAMP
92037-2081
$2.44
92043
PIN,FLOAT
92043-2006
$3.06
92063
JET-MAIN,#102.5
92063-2316
$15.08
92063A
JET-MAIN,#100
92063-2317
$15.08
92063B
JET-MAIN,#97.5
92063-2318
$15.08
92063C
JET-MAIN,#105
92063-2330
$15.08
92063D
JET-MAIN,#107.5
92063-2331
$10.56
92064
JET-PILOT,#40
92064-2118
$12.97
214
SCREW-PAN+-
214B0414
$0.70
92081
SPRING
92081-2009
$2.78
92093
SEAL
92093-2081
$2.33
92093A
SEAL
92093-2082
$1.90
92093B
SEAL
92093-2083
$1.72
92143
COLLAR
92143-2132
$3.47
92143A
COLLAR
92143-2133
$3.58
92143B
COLLAR
92143-2134
$5.03
92144
SPRING
92144-2269
$7.75
92150
BOLT
92150-2146
$4.11
92190
TUBE,6X10X175
92190-2051
$3.65
