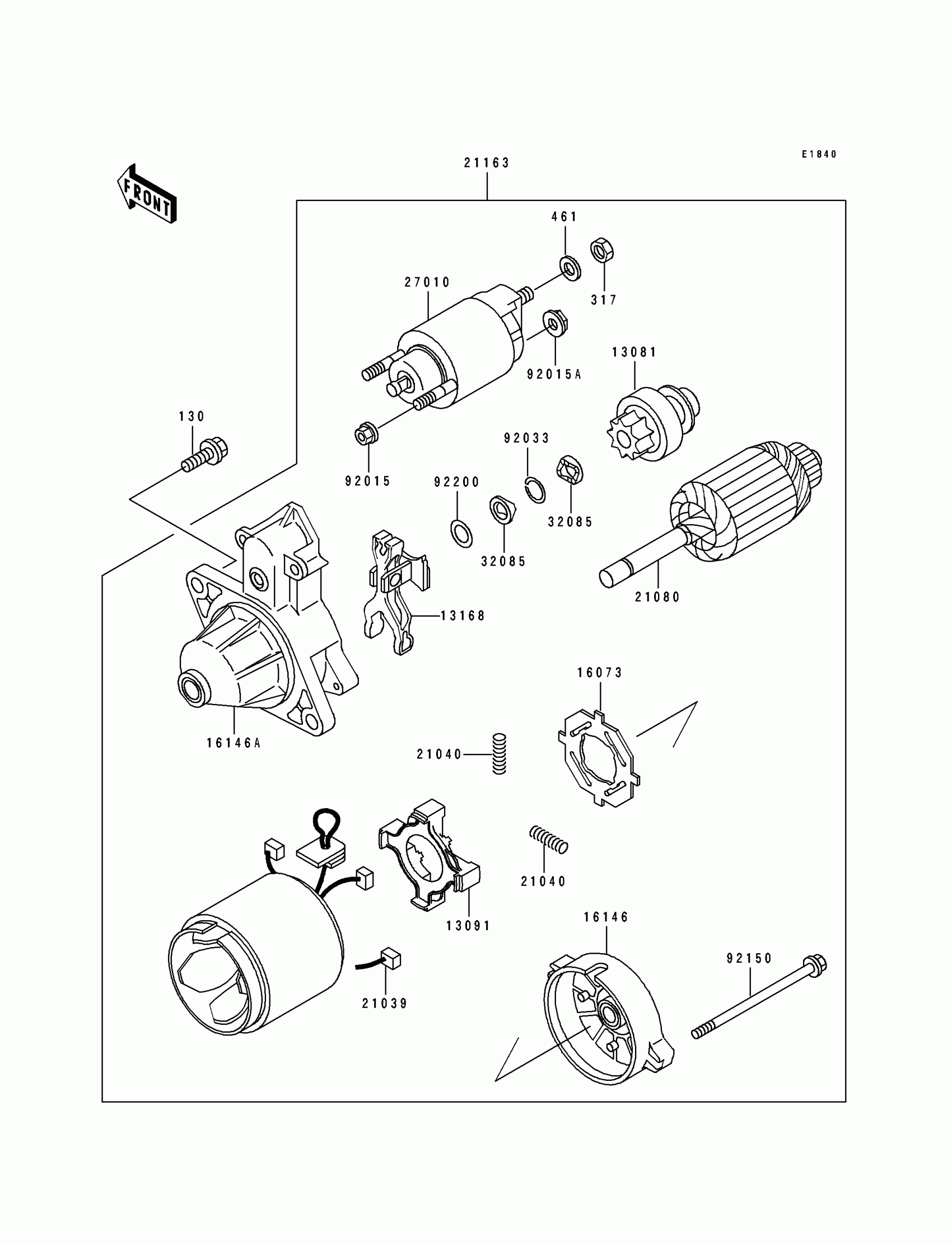

Kawasaki Mule 500 Starter Motor Diagram

Description

Price

13081

CLUTCH-ASSY

13081-2164

$95.78

13091

HOLDER,BRUSH

13091-2068

$27.32

13168

LEVER,SHIFT

13168-2148

$20.97

16073

INSULATOR

16073-2098

$9.19

16146

COVER-ASSY,RR

16146-2164

$64.42

16146A

COVER-ASSY,FR

16146-2191

$105.42

21039

BRUSH

21039-2059

$14.11

21040

SPRING-BRUSH

21040-2052

$3.53

21080

ARMATURE

21080-2064

$194.23

21163

STARTER-ELECTRIC

21163-2109

Unavailable

27010

SWITCH

27010-2122

Unavailable

32085

STOPPER

32085-2066

$14.28

92015

NUT

92015-2146

$1.45

92015A

NUT

92015-2147

$2.87

92033

RING-SNAP

92033-2081

$4.00

92150

BOLT

92002-2277

$10.65

92200

WASHER

92022-2218

Unavailable

130

BOLT-FLANGED,8X25

130G0825

$2.89

317

NUT-HEX-SMALL,8MM

317B0800

$0.67

461

WASHER SPRING 8MM

461F0800

$0.40
