2007 Kawasaki Mule 500 Rear Fender Diagram

← All diagrams

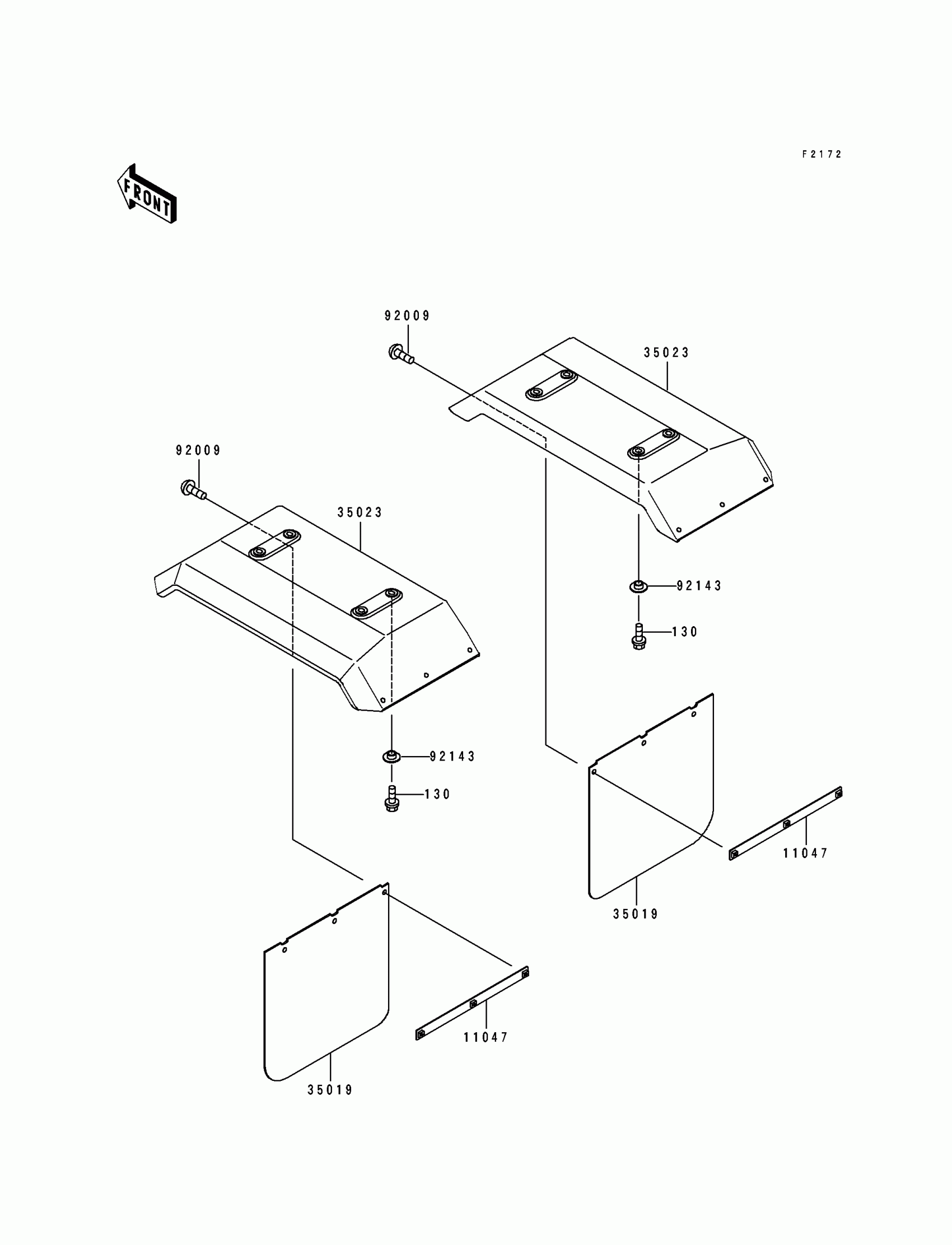

Find the part on the Rear Fender diagram for your 2007 Kawasaki Mule 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 500 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,REAR FLAP

11047-1172

1
Out of stock

35019

FLAP,REAR FENDER

35019-1244

1
Out of stock

35023

FENDER-REAR

35023-1298

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock
