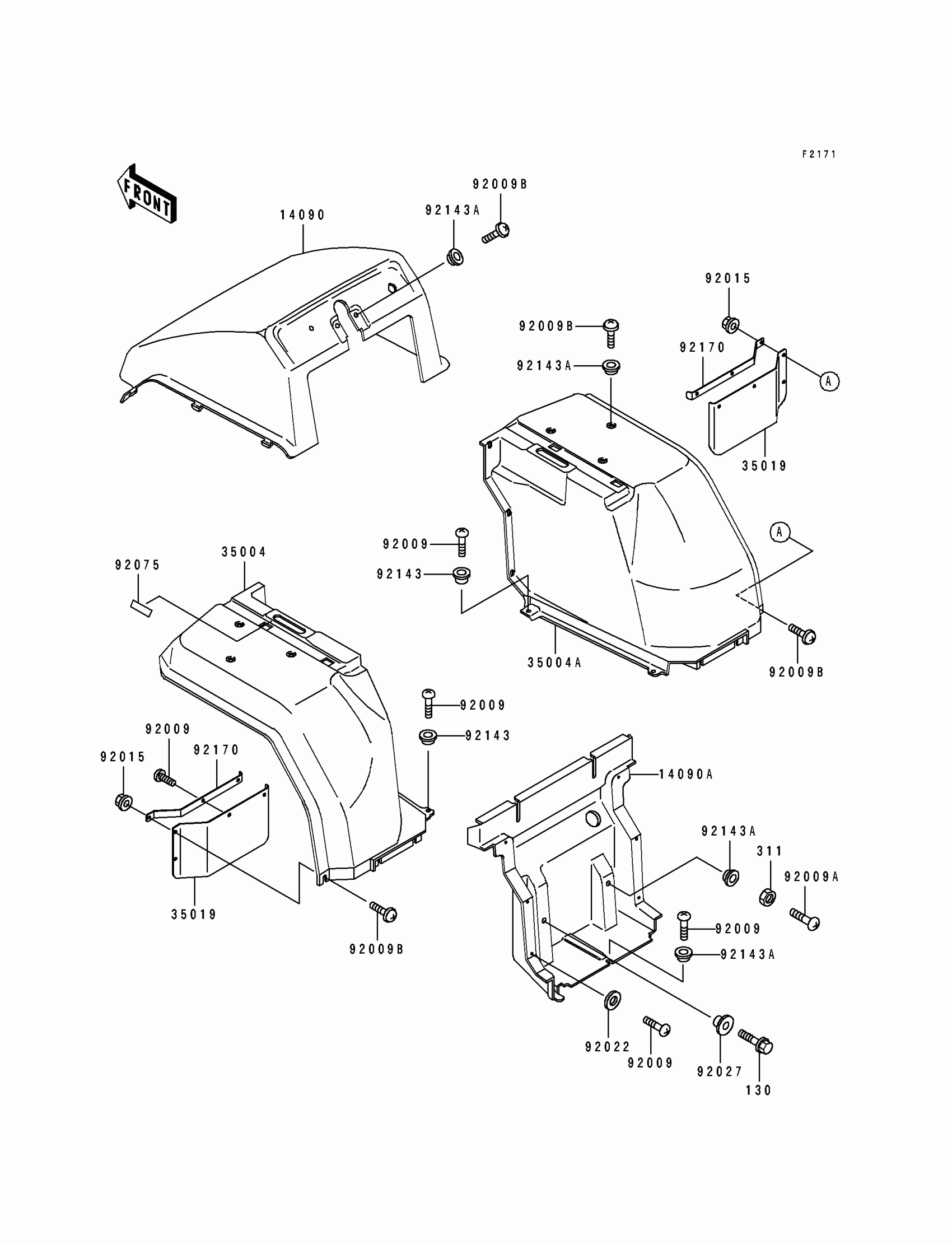

Kawasaki Mule 500 Front Fender Diagram

Description

Price

14090

COVER,UPP,F.RED

14024-1983-6L

Unavailable

14090A

COVER,FR

14024-1984

Unavailable

35004

FENDER-FRONT,LH,F.RED

35004-1276-6L

Unavailable

35004A

FENDER-FRONT,RH,F.RED

35004-1277-6L

Unavailable

35019

FLAP,FRONT FENDER

35019-1271

$31.90

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X35

92009-1589

Unavailable

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92075

DAMPER

92075-1867

$4.41

92143

COLLAR

92143-1057

$3.81

92143A

COLLAR

92143-1087

$2.98

92170

CLAMP,FLAP

92170-1212

Unavailable

130

BOLT-FLANGED,6X25

130J0625

Unavailable

311

NUT 6MM

311B0600

Unavailable
