2007 Kawasaki Mule 500 Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2007 Kawasaki Mule 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

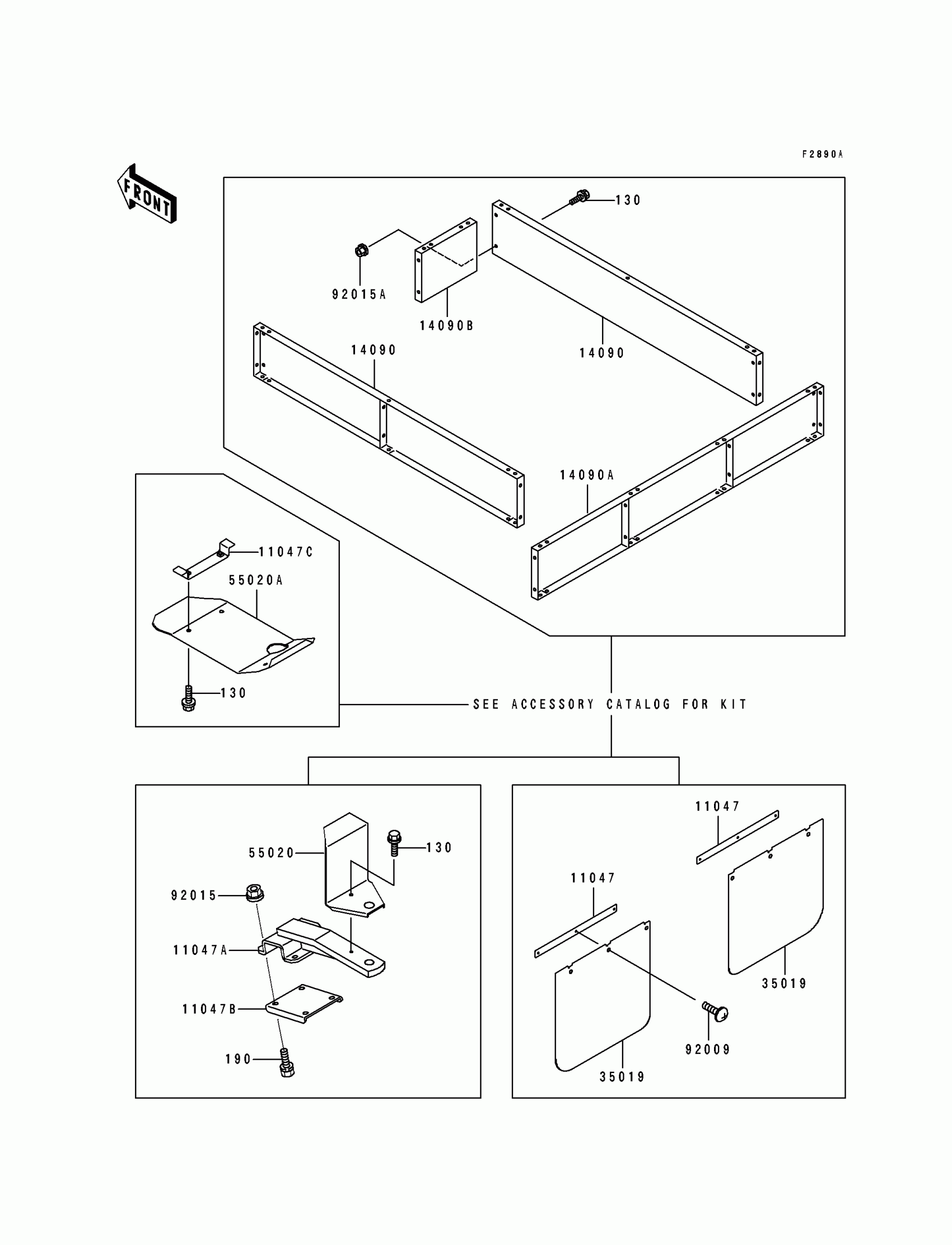

2007 Kawasaki Mule 500 Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,REAR FLAP

11047-1172

1
Out of stock

11047A

BRACKET,TRAILER HITCH,UPP

11047-1430

1
Out of stock

11047B

BRACKET,TRAILER HITCH,LWR

11047-1431

1
Out of stock

11047C

BRACKET,GEAR CASE GUARD

11047-1432

1
Out of stock

14090

COVER,CARRIER,SIDE,F.RED

14090-1109-B1

1

$95.89

In stock

14090A

COVER,CARRIER,REAR,F.RED

14090-1110-B1

1

$105.00

In stock

14090B

1

$38.89

In stock

35019

FLAP,REAR FENDER

35019-1244

1
Out of stock

55020

GUARD,MUFFLER

55020-1399

1
Out of stock

55020A

GUARD,GEAR CASE

55020-1400

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1366

1
Out of stock

92015A

NUT,FLANGED,6MM,BLACK

92015-1386

1
Out of stock

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

190

BOLT-UPSET-WS

190H1025

1
Out of stock
