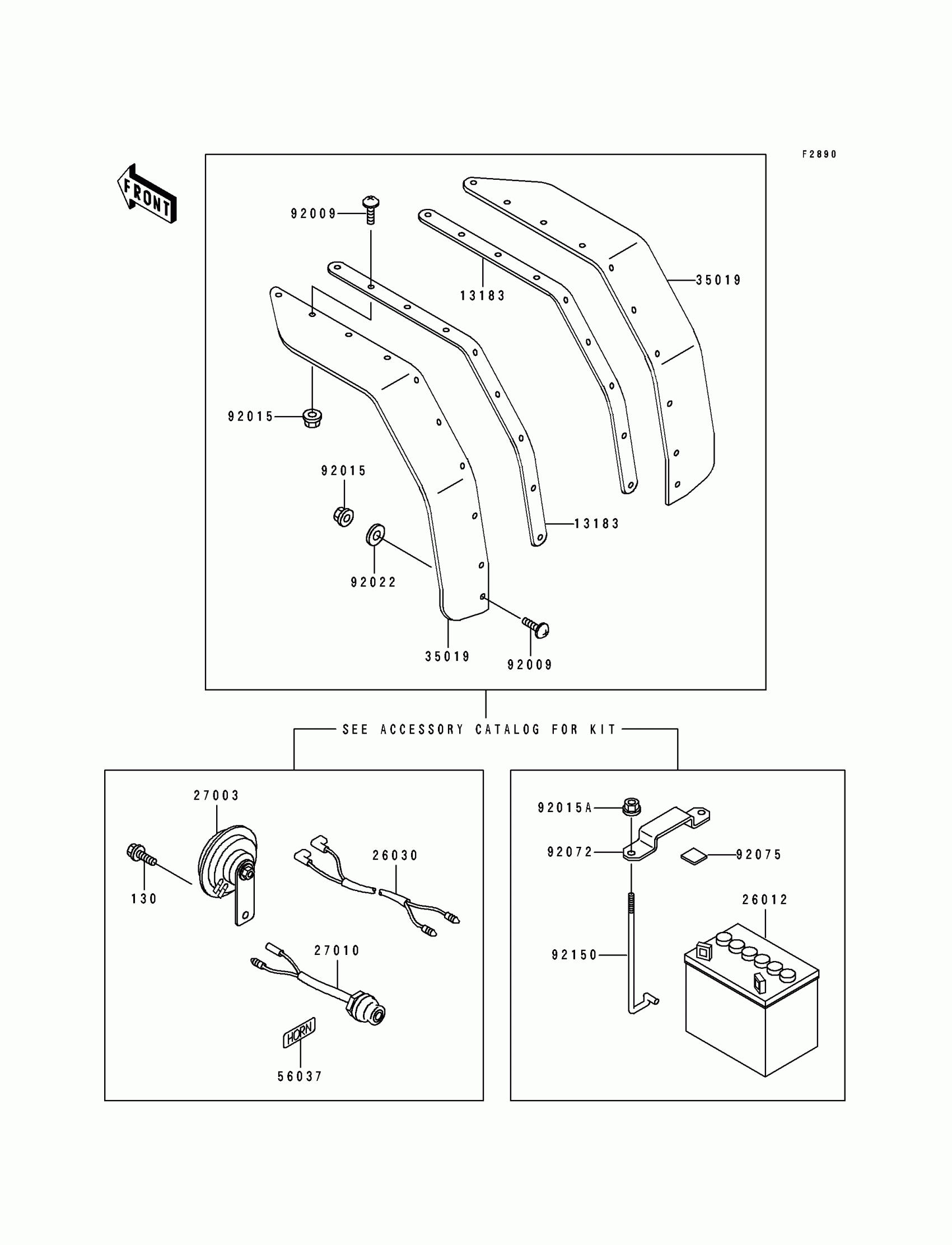

Kawasaki Mule 500 Optional Parts(Front) Diagram

Description

Price

13183

PLATE,FRONT FLAP

13183-1705

$16.22

26012

BATTERY,12V 30AH

26012-1265

Unavailable

26030

HARNESS,HORN

26030-1101

$19.36

27003

HORN

27003-1330

$65.47

27010

SWITCH,HORN

27010-1241

$49.28

35019

FLAP,FRONT FENDER

35019-1286

$22.61

56037

LABEL-SPECIFICATION,HORN

56037-1411

$5.32

92009

SCREW,6X14

92009-1288

$2.99

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92015A

NUT,FLANGED,LOCK,8MM

92015-1696

$3.55

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92072

BAND,BATTERY

92072-1282

$10.08

92075

DAMPER

92075-1215

Unavailable

92150

BOLT,BATTERY

92150-1501

$16.61

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable
