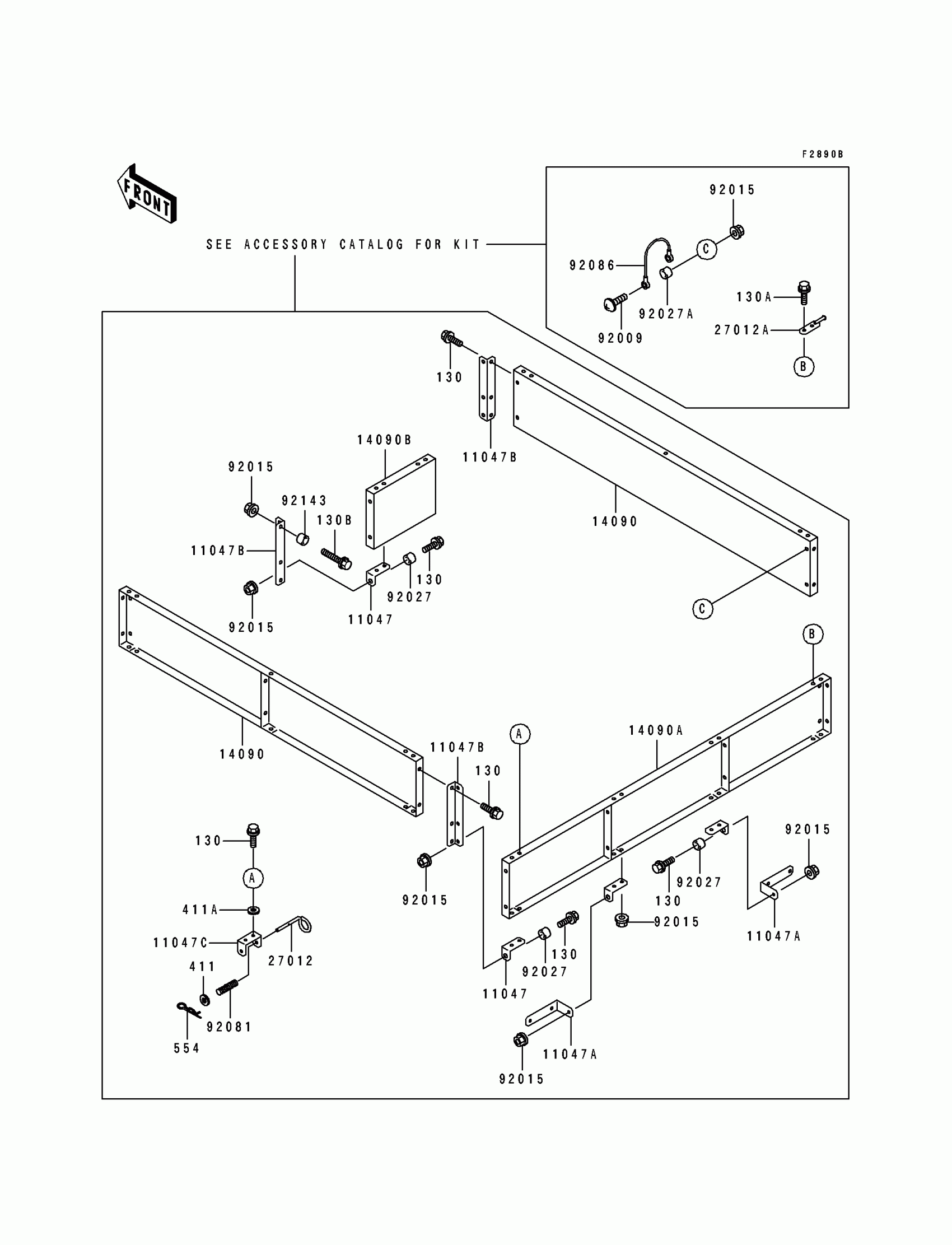

Kawasaki Mule 500 Optional Parts(Bed Gate) Diagram

Description

Price

11047

BRACKET,GATE CARRIER,F.RED

11047-1426-B1

Unavailable

11047A

BRACKET,GATE CARRIER,F.RED

11047-1427-B1

Unavailable

11047B

BRACKET,GATE CARRIER,F.RED

11047-1428-B1

Unavailable

11047C

BRACKET,GATE CARRIER,F.RED

11047-1429-B1

Unavailable

14090

COVER,CARRIER,SIDE,F.RED

14090-1109-B1

$94.31

14090A

COVER,CARRIER,REAR,F.RED

14090-1110-B1

$103.34

14090B

COVER,CARRIER,FRONT,F.RED

14090-1111-B1

$38.26

27012

HOOK,GATE CARRIER

27012-1449

$20.22

27012A

HOOK,WIRE,F.RED

27012-1454-B1

Unavailable

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92027

COLLAR

92027-103

$3.58

92027A

COLLAR,6.8X10X8.5

92027-129

$5.00

92081

SPRING,CLUTCH RELEASE

92081-096

$5.54

92086

WIRE,L=260

92086-1056

$17.96

92143

COLLAR

92143-1046

$5.00

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130A

BOLT-FLANGED

130J0620

$0.43

130B

BOLT-FLANGED,6X35

130J0635

Unavailable

411

WASHER PLAIN

411F0600

$1.18

411A

WASHER PLAIN

411F0800

$1.66

554

PIN,SNAP

554A0600

$0.93
