Description

Price

11003

SEAT-VALVE

11003-2089

$6.54

11060

GASKET

11009-2175

$1.14

11060A

GASKET,OIL GAUGE

11009-2346

$1.94

11060B

GASKET,OIL PUMP

11009-2828

$6.54

13183

PLATE,OIL FILTER

13183-2295

$1.52

13183A

PLATE,OIL PUMP

13183-2298

$1.72

16082

PUMP-ASSY-OIL

16082-2062

$27.84

16142

COVER-PUMP

16142-2062

$5.51

16154

ROTOR-PUMP,OUT

16154-2054

$8.35

23062

BRACKET-COMP

23062-6004

$51.23

49065

FILTER-OIL

49065-2068

$7.21

49065A

FILTER-OIL

49065-2071

$14.43

52005

GAUGE

52005-2095

$12.68

59231

FILLER

59231-2072

$5.92

92055

RING-O

92055-2063

$3.71

92066

PLUG

92066-2203

Unavailable

92066A

PLUG

92066-2211

$1.85

92144

SPRING

92144-2202

$1.63

92170

CLAMP

92170-2018

$2.07

92200

WASHER

92022-2089

$0.42

130

BOLT-FLANGED,5X8

130B0508

Unavailable

130A

BOLT-FLANGED,6X16

130B0616

Unavailable

130B

BOLT-FLANGED,6X40

130G0640

$1.17

224

SCREW-PAN-WP-CROS

224B0612

$0.74

600

BALL-STEEL,5/16

600A1000

$0.73

670

O RING,16MM

670D2016

$1.70

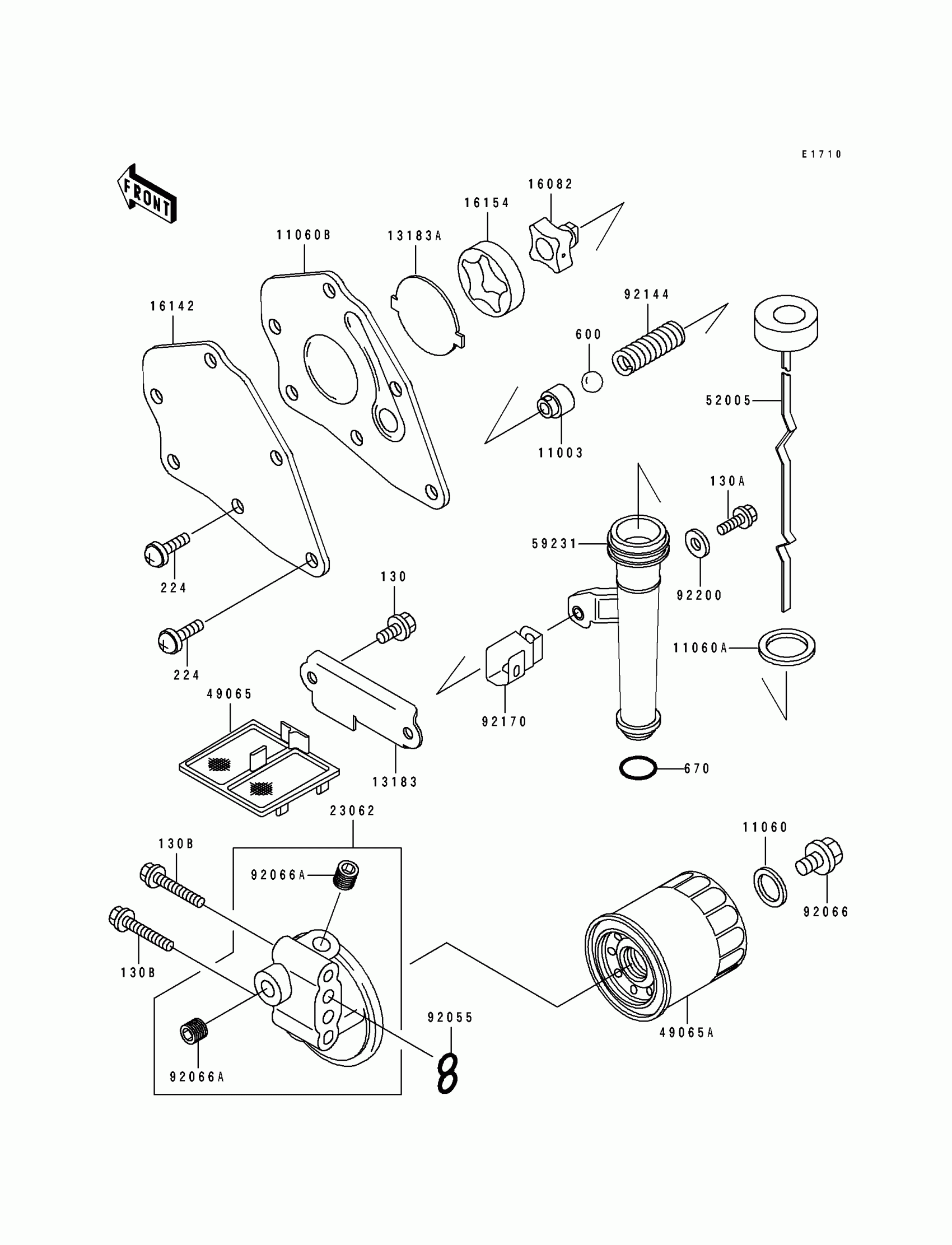

Kawasaki Mule 500 Oil Pump Diagram

SEAT-VALVE

GASKET

GASKET,OIL GAUGE

GASKET,OIL PUMP

PLATE,OIL FILTER

PLATE,OIL PUMP

PUMP-ASSY-OIL

COVER-PUMP

ROTOR-PUMP,OUT

BRACKET-COMP

FILTER-OIL

FILTER-OIL

GAUGE

FILLER

RING-O

PLUG

PLUG

SPRING

CLAMP

WASHER

BOLT-FLANGED,5X8

BOLT-FLANGED,6X16

BOLT-FLANGED,6X40

SCREW-PAN-WP-CROS

BALL-STEEL,5/16

O RING,16MM
