Description

Price

11012

CAP,WHEEL

11012-1519

Unavailable

13168

LEVER,STOPPER,LH

13168-1477

$16.21

13168A

LEVER,STOPPER,RH

13168-1478

$14.75

13168B

LEVER,LH

13168-1479

$33.76

13168C

LEVER,RH

13168-1480

Unavailable

39186

KNUCKLE,LH

39186-1094

Unavailable

39186A

KNUCKLE,RH

39186-1095

$163.91

41035

PANEL-ASSY-BRAKE,FR,LH

41035-1280

$549.62

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-1281

$476.66

41038

DRUM,FRONT BRAKE

41038-1238

$315.98

41047

SHOE-ASSY-BRAKE,FR

41047-1051

$25.22

43057

CAP-BREATHER

43057-1053

$4.55

43092

CYLINDER

43092-1057

$109.01

92002

BOLT,10X30

92002-1388

$9.48

92015

NUT,CASTLE,18MM

42045-018

$9.23

92033

RING-SNAP

92033-1279

$3.54

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN,SHOE HOLD

92043-1460

$4.87

92045

BEARING-BALL,60/222RS

92045-1170

$34.21

92049

SEAL-OIL

92049-1284

$15.93

92066

PLUG

92066-1365

$5.06

92093

SEAL

92093-1332

$7.84

92143

COLLAR,22.2X28.6X9

92143-1454

$16.39

92143A

COLLAR,22.2X28.6X25

92143-1455

$16.98

92144

SPRING

92144-1604

$6.11

92144A

SPRING,RETURN,UPP

92144-1605

$7.98

92144B

SPRING,RETURN,LWR

92144-1606

$7.98

92144C

SPRING,LH

92144-1607

$9.36

92144D

SPRING,RH

92144-1608

$7.26

92144E

SPRING,SHOE HOLD

92144-1609

$7.60

92144F

SPRING,SHOE HOLD

92144-1610

$9.83

92144G

SPRING,SHOE HOLD

92144-1611

$9.83

92150

BOLT

92150-1540

$2.87

183

BOLT-UPSET-WS-SMALL

183H0814

$0.73

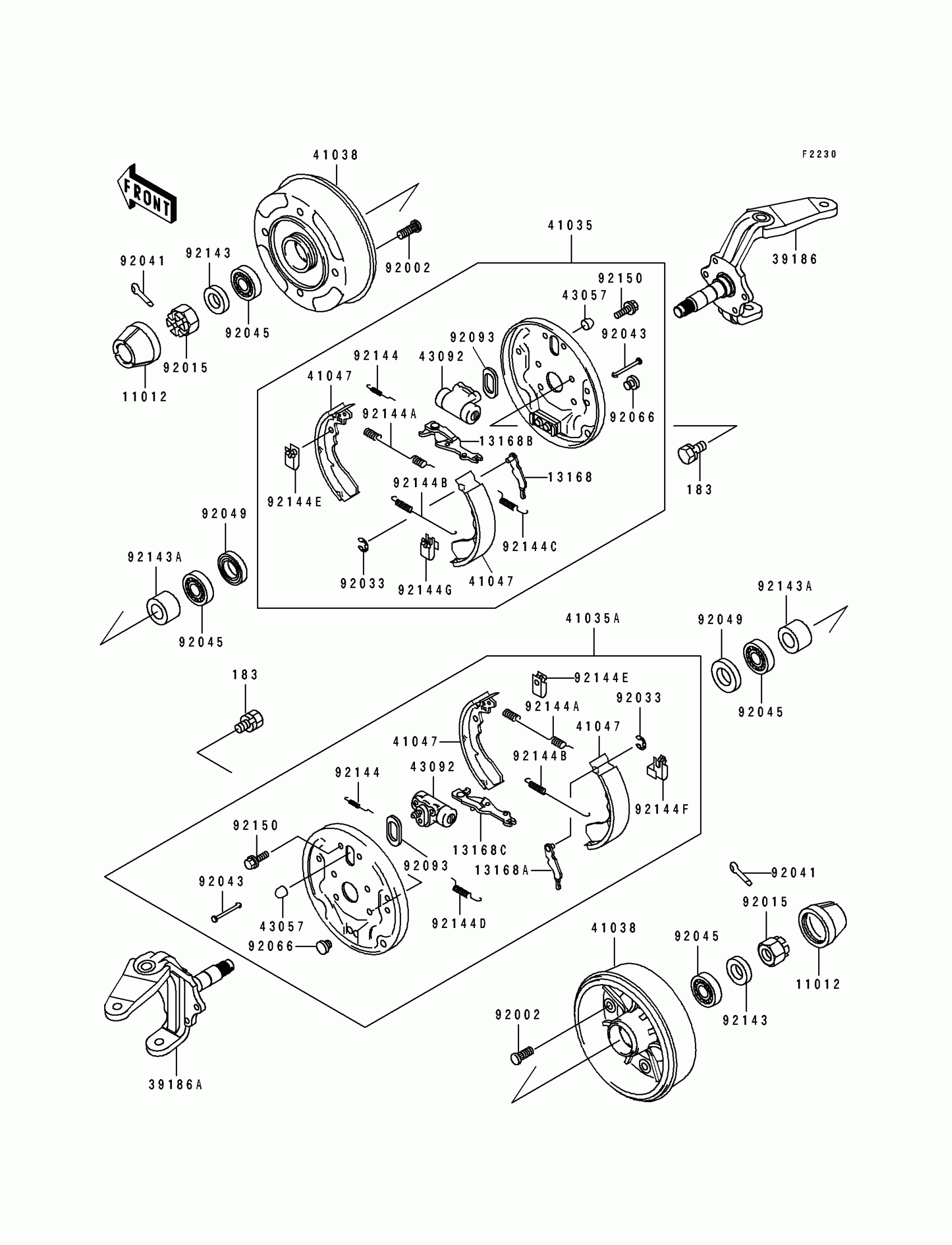

Kawasaki Mule 500 Front Hub Diagram

CAP,WHEEL

LEVER,STOPPER,LH

LEVER,STOPPER,RH

LEVER,LH

LEVER,RH

KNUCKLE,LH

KNUCKLE,RH

PANEL-ASSY-BRAKE,FR,LH

PANEL-ASSY-BRAKE,FR,RH

DRUM,FRONT BRAKE

SHOE-ASSY-BRAKE,FR

CAP-BREATHER

CYLINDER

BOLT,10X30

NUT,CASTLE,18MM

RING-SNAP

COTTER,4.0X35

PIN,SHOE HOLD

BEARING-BALL,60/222RS

SEAL-OIL

PLUG

SEAL

COLLAR,22.2X28.6X9

COLLAR,22.2X28.6X25

SPRING

SPRING,RETURN,UPP

SPRING,RETURN,LWR

SPRING,LH

SPRING,RH

SPRING,SHOE HOLD

SPRING,SHOE HOLD

SPRING,SHOE HOLD

BOLT

BOLT-UPSET-WS-SMALL
