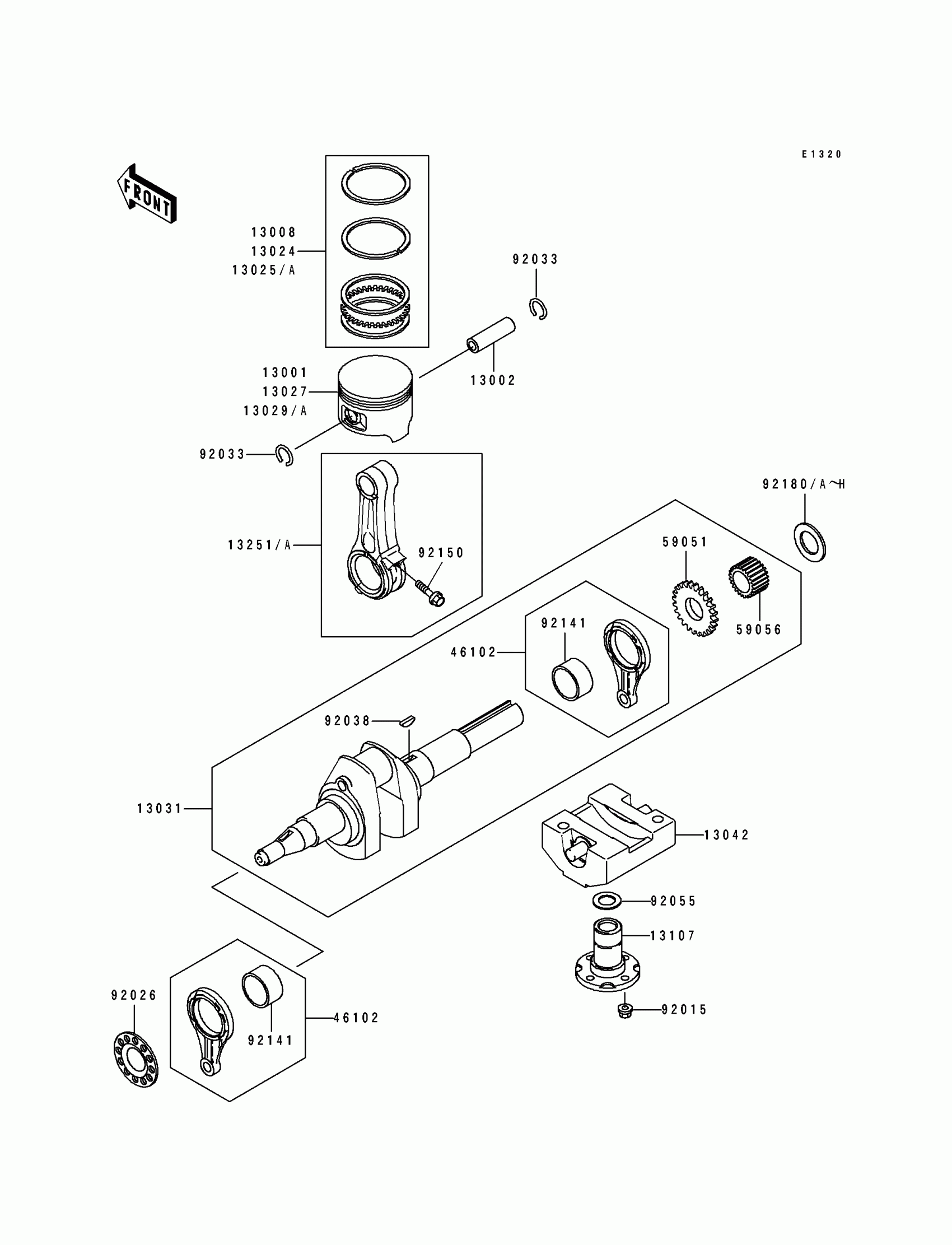

Kawasaki Mule 500 Crankshaft/Piston Diagram

#

Description
Price

13001

PISTON-ENGINE,STD

13001-2125

Unavailable

13002

PIN-PISTON

13002-2069

$9.47

13008

RING-SET-PISTON,STD

13008-6007

$32.75

13024

RING-SET-PISTON LL,0.75

13024-2051

Unavailable

13025

RING-SET-PISTON L,0.25

13025-2073

Unavailable

13025A

RING-SET-PISTON L,0.50

13025-2074

Unavailable

13027

PISTON-ENGINE LL,0.75

13027-2060

Unavailable

13029

PISTON-ENGINE L,0.25

13029-2100

Unavailable

13029A

PISTON-ENGINE L,0.50

13029-2101

Unavailable

13031

CRANKSHAFT-COMP

13031-2060

$329.59

13042

WEIGHT

13042-6009

$106.70

13107

SHAFT

13107-2088

$19.16

13251

ROD-ASSY-CONNECTING

13251-6033

Unavailable

13251A

ROD-ASSY-CONNECTING,U/S=0.50

13251-6034

Unavailable

46102

ROD

46102-6004

$38.31

59051

GEAR-SPUR

59051-2097

$27.92

59056

GEAR-HELICAL

59056-2840

Unavailable

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92026

SPACER

92026-2052

$13.08

92033

RING-SNAP,PISTON PIN

92036-008

$0.49

92038

KEY,WOODRUFF

92038-2094

$2.07

92055

RING-O

92055-2072

$1.25

92141

BEARING-PLANE

92141-2090

$6.98

92150

BOLT

92002-2053

$3.69

92180

SHIM,T=1.13

92025-2168

Unavailable

92180A

SHIM,T=1.18

92025-2169

Unavailable

92180B

SHIM,T=1.23

92025-2170

Unavailable

92180C

SHIM,T=1.28

92025-2171

Unavailable

92180D

SHIM,T=1.33

92025-2172

Unavailable

92180E

SHIM,T=1.38

92025-2173

Unavailable

92180F

SHIM,T=1.43

92025-2174

Unavailable

92180G

SHIM,T=1.48

92025-2175

Unavailable

92180H

SHIM,T=1.53

92025-2207

Unavailable
