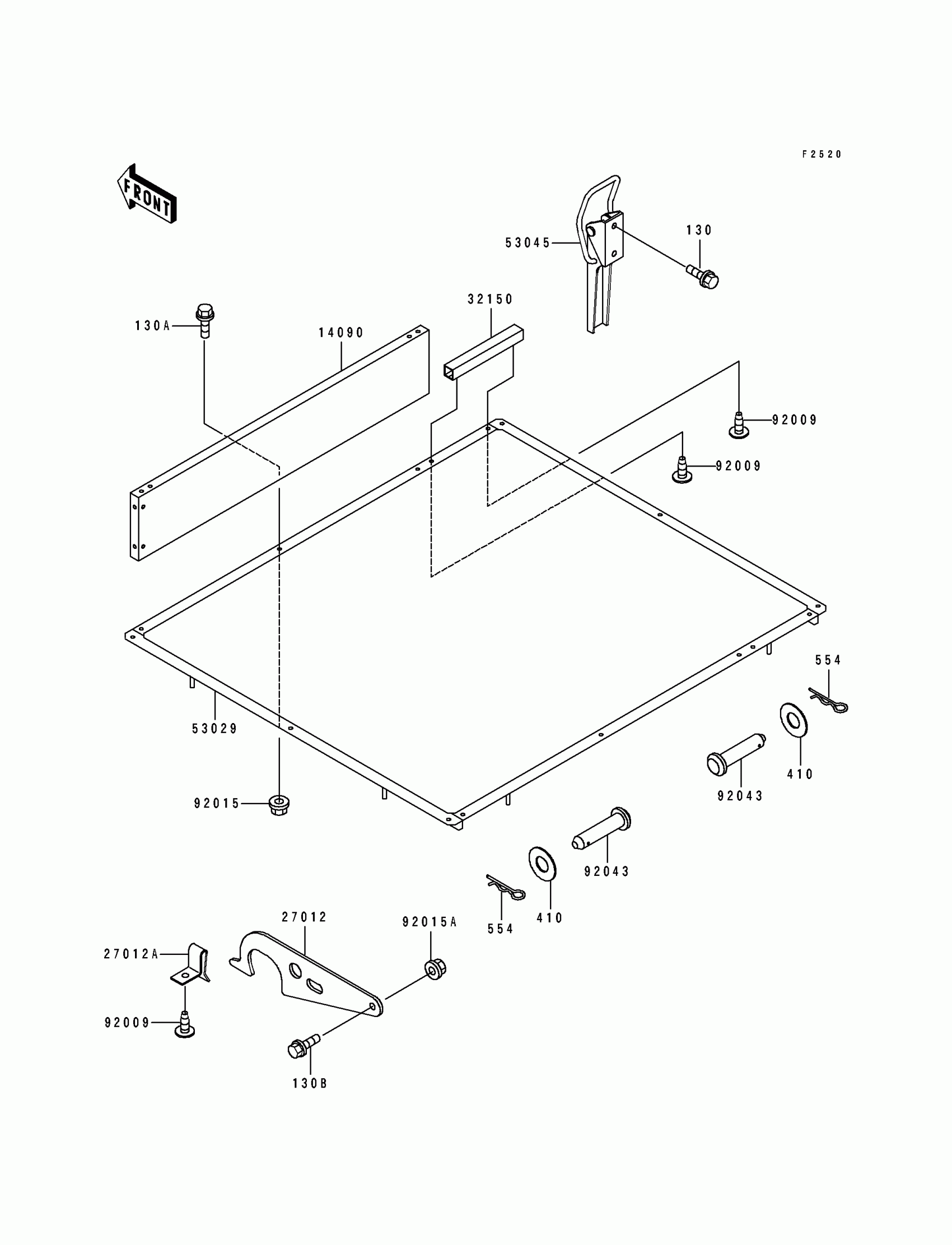

Kawasaki Mule 500 Carrier Diagram

Description

Price

14090

COVER,CARRIER,F.RED

14024-1980-B1

Unavailable

27012

HOOK,CARRIER

27012-1444

$16.52

27012A

HOOK,CARRIER

27012-1445

$12.92

32150

PIPE,CARRIER,F.RED

32150-1711-B1

$14.44

53029

CARRIER,F.RED

53029-1129-B1

$918.62

53045

HOOK-ASSY

53045-1058

$23.47

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92043

PIN,12X54

92043-1451

$9.73

130

BOLT-FLANGED,6X12

130J0612

$2.19

130A

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130B

BOLT-FLANGED,6X40

130J0640

$5.01

410

WASHER-PLAIN-SMALL,12MM

410B1200

$0.70

554

PIN-SNAP,12MM

554A1200

$3.57
